1p+N Residual Current Circuit Breaker with Overload Protection RCBO

Get reliable 1p+N Residual Current Circuit Breaker with Overload Protection RCBO from our factory. High-quality protection for your electrical circuits.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Information
  • Our Advantages
  • FAQ
  • About Us
  • More products
Overview

Basic Info.

Model NO.
CJR01-50
Poles Number
1p+N
Type
Circuit Breaker
Function
Circuit-Breaker Failure Protection, Overcurrent Protection, RCCB
Certification
ISO9001-2000, CE
Module Size
18mm
Rated Voltage
240V(230V)~
Rated Frequency
50/60Hz
Transport Package
Normal Package
Specification
1p+N
Trademark
C&J
Origin
Wenzhou
HS Code
85362000
Production Capacity
500000PCS/Year

Product Description

Product Description

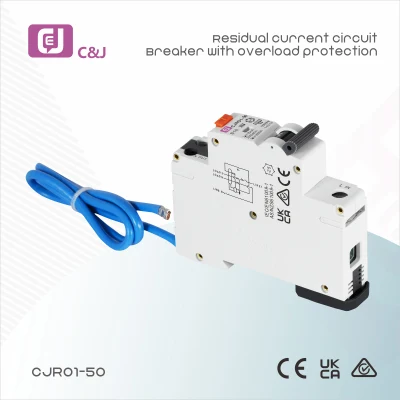

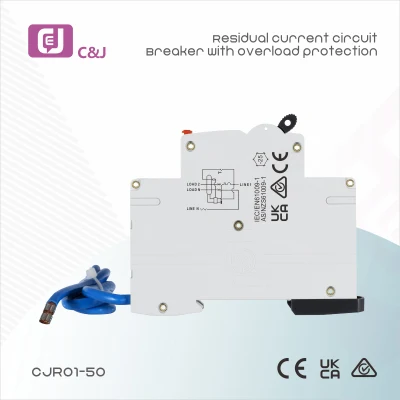

18mm Single Module RCBO 6KA 1P+N B&C Curve CJR01-50
CJR01-50 Residual Current circuit breaker with overload protection (RCBO) ensure electrical safety in homes and similar situations, such as offices and other buildings as well as for industrial applications by protecting electrical installations against leakage Current reach to 30mA and against overloads and short circuits. Once a fault is detected, the RCBO automatically switches off the electrical circuit to prevent risk to the people and prevent damage to wires and to avoid the risk of fire. Warranting reliability and safety for people and assets, RCBO are equipped with AC,A type. The AC type is a common type use for homes, A type with pulse DC protection, normally the rated current is 6,8,10,13,16,20,25,32,40,50A,leakage current protection is 10mA,30mA,100mA,300mA and rated voltage is 240(230)~VAC. frequency is 50/60Hz. according to IEC/EN/AS/NZS61009.1:2015 standards.

Main function feature
1.Neoteric in structure, light in weight, reliable and excellent in performance.
2.High breaking capacity, can trip quickly
3.High fire-resistant and shockproof plastics of its case and items

Product Parameters
  Standard Unit IEC/EN/AS/NZS61009.1:2015
ESV Compliant
Electrical
features
Type(wave form of the earth leakage sensed)   Electro-magnetic type, electronic type
Rated current In A A,AC
Poles P 1P+N
Rated voltage V 240V(230V)~
Module size   18mm
Curve type   B&C Curve
Rated Current   6A,10A,16A,20A,25A,32A,40A,50A
Rated sensitivity I△n A 0.01,0.03,0.1,0.3,0.5
Insulation voltage Ui V 500
Rated residual making and breaking capacity I△m A 630
Short-circuit current I△c A 6000
SCPD fuse A 6000
Rated frequency Hz 50/60
Pollution degree   2
Mechanical
features
Electrical life t 4000
Mechanical life t 10000
Breaking capacity A 6000A
Protection degree   IP20
Ambient temperature
(with daily average ≤35ºC)
ºC -25~+40ºC
Storage temperature ºC -25~+70ºC
lnstallation Terminal connection type   Cable/Pin-type busbar/U type busbar
Terminal size top / bottom for cable mm² 16
AWG 18-3
Terminal size top / bottom for busbar mm² 16
AWG 18-3
Tightening torque N*m 1.2
In-Ibs 22
Connection   On DIN rail 35mm by means of fast clip device
Mounting   Plug-in type

Detailed Information
1p+N Residual Current Circuit Breaker with Overload Protection RCBO
Our Advantages

CEJIA has over 20 years of experience in this industry and has built a reputation for providing quality products and services at competitive prices. We are proud to be one of the most reliable electrical equipment suppliers in China with more. We attach great importance to product quality control from raw materials procurement to finished product packaging. We provide our customers with solutions that meet their needs on a local level, while also giving them access to the latest technology and services available.

We are able to produce large volumes of electrical parts and equipment at very competitive prices in our state-of-the-art manufacturing facility located in China.

FAQ

Q1:Are you a trading company or manufacturer?
A.We are professional manufacturer for low-voltage circuit breaker series products,Integrates research and development, manufacturing, processing and trade departments together. also we supply of different electrical and electronic items

Q2: why will you choice us :
A.more than 20years of professional teams will give you good quality products ,good service ,and reasonable price

Q3: Is the MOQ fixed?
A.The MOQ is flexible and we accept small order as trial order.
....

Dear Customers,

If you have any question , please feel free to contact with me , I will send you our catalog for your reference.
