Basic Info.
Model NO.
YCM3
Rated Current (a)
10A-630A
Ue
AC400/415/690
ICU (Ka)
5-50
Transport Package
Standard Packing
Trademark
CNC
Origin
Zhejiang, China
Production Capacity
3500 Unit/Units Per Week
Product Description

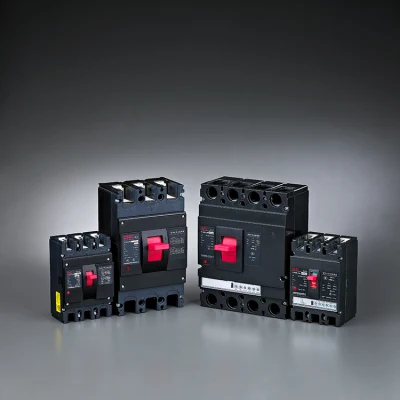

2021 New Arrival 150A MCB Circuit Breaker 125A MCCB
YCM3 series moulded case circuit breaker(hereinafter called MCCB) is a new generation of breaker. This MCCB is suitable for the circuit of AC 50Hz/60Hz with rated insulation voltage 1000V (800V for frame size of 125) and rated service current between 63A and 630A. It is mainly used to distribute electric energy and protect circuits and electric equipment against over-load, under-voltage, short-circuit and earthing fault.Standard: IEC/EN 60947-2.
| Frame size | Dimension | Install hole dimension | Terminal dimension | ||||||||||||||
| W | L | H | D | W2 | L2 | L3 | L4 | H1 | H2 | H3 | W1 | L1 | W4 | W3 | L5 | L6 | |
| 125/3P | 75 | 130 | 81 | Φ3.8 | 21 | 83 | 50 | 48 | 66 | 56 | 63 | 25 | 111 | / | 18 | 7 | 7 |
| 125/4P | 100 | 130 | 81 | Φ4.5 | 21 | 83 | 50 | 48 | 66 | 56 | 63 | 25 | 111 | 25 | 16 | 7 | 7 |
| 250L-3P | 107 | 165 | 94.5 | Φ4.8 | 30 | 102.5 | 71.5 | 80 | 74.5 | 62 | 67.5 | 35 | 126 | / | 25.6 | 12 | 10 |
| 250L-4P | 142 | 165 | 94.5 | Φ4.8 | 30 | 102.5 | 71.5 | 80 | 74.5 | 62 | 67.5 | 35 | 126 | 35 | 25.6 | 12 | 10 |
| 250M-3P | 107 | 165 | 111 | Φ4.8 | 30 | 102.5 | 71.5 | 80 | 93 | 79.5 | 85.5 | 35 | 126 | / | 25.6 | 12 | 9.5 |
| 250M-4P | 142 | 165 | 111 | Φ4.8 | 30 | 102.5 | 71.5 | 80 | 93 | 79.5 | 85.5 | 35 | 126 | 35 | 25.6 | 12 | 9.5 |
| 400/3P 630/3P 400/4P 630/4P | 150 198 | 257 257 | 146 146 | Φ6 Φ6 | 57 57 | 150 150 | 88 88 | 101 101 | 110.5 110.5 | 96.5 96.5 | 105 105 | 44 44 | 215 215 | / / | 31.5 31.5 | 13 13 | 16 16 |
