Basic Info.
Model NO.
EDB1-125
Poles Number
1
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
ISO9001-2000, CE, CB, SAA
Voltage Ui
1000V
Max Current
63A
Enclosure Box
with/Without
Rated Current
6A, 10A, 16A, 20A, 32A, 40A, 63A;
Imp
6ka/10ka
Transport Package
by Sea/Air
Specification
box
Trademark
Onccy
Origin
China
HS Code
8536490090
Production Capacity
1000000PC/Year
Product Description
DC Miniature circuit breakers Manufacturer
Miniature Circuit Breaker (MCB) The first consideration when selecting electrical equipment or gadgets is safety. When the power fluctuates or an excessive amount of current flows, it produces damage in the form of an overload or short circuit. Therefore, it is vital to include a device as a safety factor to safeguard electrical devices/circuits against overcurrent. In the early days, the fuse was one of the most popular devices used to safeguard the circuit. A fuse has a metal wire or strip that melts when an excessive current flow occurs, therefore interrupting or halting the passage of electricity.
Advantages
- Protection functions: overload, short circuit
- Rated short circuit breaking capacity icu up to 10kA
- Non-polarity, easy wiring
- Rated current in up to 125A
- Rated voltage ue up to 1000V
- Designed for PV, energy storage and other dc applications

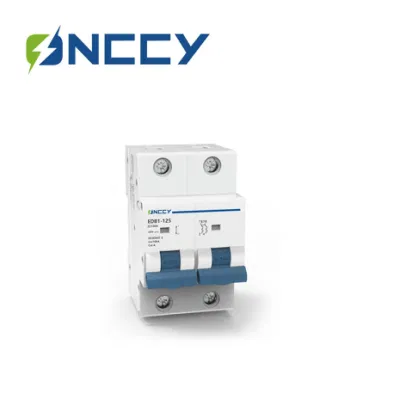

EDB1-125 DC Mini Circuit Breaker MCB 2P 63A-125A
Product Benefits
- Overload and the short circuit protection function
- Rated short circuit breaking capacity up to 10 kA
- Non-polarity and Polarity both available
- Rated Current In up to 125A
- Rated Voltage up to 200V
- Designed for PV, energy storage and other DC applications
- AS 60947.3:2018 and IEC 60947.2:2015 standard
- 2 years warranty, product insurance, and recall insurance available
EDB1-125 DC miniature circuit breaker (hereinafter referred to as circuit breaker) is suitable for lines with rated current of 125A and below DC rated voltage of 200V .lt is used for overloading and short-circuit protection of facilities and electrical equipment of DC power distribution system, and can be widely used in electric power, post and telecommunications, communication, industrial and mining enterprises and other industries. This product meets the requirements of IEC60947-2.
Technical Data
Electrical Features | |
| Rated Current In | 80,100,125A |
| Poles | 1P,2P |
| Rated voltage Ue | 1P(100V), 2P(200V), |
| Rated breaking capacity | 10.000A |
| Rated impulse withstands voltage (1.5/50) Uimp | 4,000V |
| Dielectric test voltage at ind. Freq. for 1 min | 2kV |
| Pollution degree | 2 |
| Thermo-magnetic release characteristic | 8~12 |
Mechanical Features | |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Reference temperature for setting of thermal elements | 30ºC |
| Ambient temperature (with daily average≤35ºC) | -5ºC~+40ºC |
| Storage temperature | -25ºC~+70ºC |
Installation | |
| Terminal connection type | Cable/Pin-type busbar/U-type busbar |
| Terminal size top/bottom for cable | 50mm² 18-2AWG |
| Terminal size top/bottom for busbar | 50mm² 18-2AWG |
| Tightening torque | 3.5Nm 30In-Ibs |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
| Connection | Power supply in both directions |
