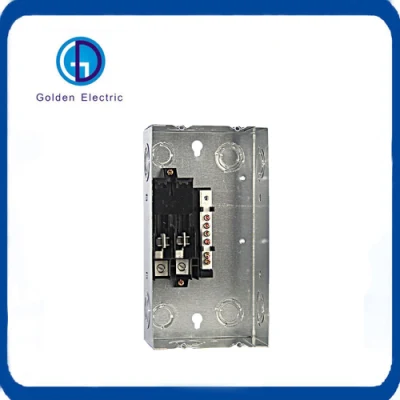

125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box

Looking for a reliable 125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box? We are a factory specializing in producing high-quality electrical panels.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Product Details
  • Recommand Product
  • Company Profile
  • FAQ
Overview

Basic Info.

Shell Material
Steel Plate
Shell Protection Grade
IP56
Brand
Golden electric /OEM
Rated Voltage
120/240VAC
Waterproof Level
NEMA 3r
Installation Method
Flush/Surface/Combination
Rated Current
40/125
Metal Box Thickness
0.9mm to 1.5mm
Product Name
Load Center
Application
Plug in Circuit Breaker
Accept Breaker
Thql or Square D Plug in Breaker
Busbar Material
Aluminum with Tin Plating
Suitable for
Single Pahse, 3 Wire
Transport Package
Standard Export Carton
Trademark
Golden or netural, or customer brand
Origin
China
HS Code
9028901100
Production Capacity
20000PCS/Month

Product Description

Product Description


Application

GD Series Load Centers have been designed for safe, reliable distrbution and control of electrical power as service entrance equipment in residential,commercial and light industrial premises. They are available in plug-in designs for indoor applications.


Features

Made out of high quality electro-galvanized steel sheet of up to 0.9-1.5mm thickness
Matt-finsh polyester power coated paint
Knockouts provided on all sides of the enclosure
Accept GE's Q line circuit breakers, including GE's exclusive 1/2'' THQPs
Suitable for single-phase, three-wire,120/240VAC, rated current to 225A
Convertible to main breaker
Wider enclosure offers ease or wiring and move heat dissipation
Flush and Surface mounted designs
Knockouts for cable entry are provided on top,bottom of the enclosure







Product Parameters

Model Front Type Main Ampere Rating 1'' Spaces 1/2'' Spaces Total 1-pole Spaces
1 Pole 2 Pole 1 Pole 2 Pole
GDL240S Surface 40A 2 1 4 1 4
GDL412C Combination 125A 4 2 8 3 8
GDL612F Flush 125A 6 3 12 4 12
GDL612FD Flush 125A 6 3 12 4 12
GDLM612FM Flush 125A 6 3 12 4 12
GDL512S Surface 125A 6 3 12 4 12
GDL612SD Surface 125A 6 3 12 4 12
GDLM612SM Surface 125A 6 3 12 4 12
GDL812F Flush 125A 8 4 16 8 16
GDL812FD Flush 125A 8 4 16 8 16
GDLM812FM Flush 125A 8 4 16 8 16
GDL812S Surface 125A 8 4 16 8 16
GDL812SD Surface 125A 8 4 16 8 16
GDLM812SM Surface 125A 8 4 16 8 16
GDLM1212C Combination 125A 12 6 24 10 24
GDLM1212CM Combination 125A 12 6 24 10 24





Product Details

125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box
125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box

125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box
125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box




Recommand Product

125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box
125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box
125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box
125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box
125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box
125A 120/240V 4 Way Plug-in Flush Type Load Center Distribution Board Power MCB Panel Box




Company Profile

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Meter Socket,Load Center, Wind Turbine, Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.
