Product Description

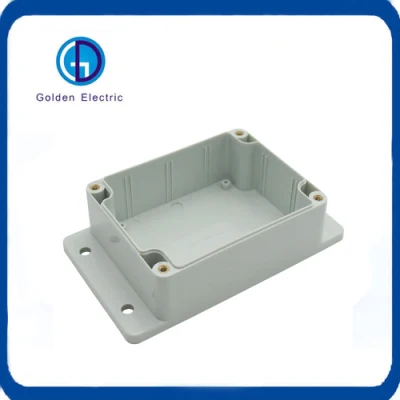

The plastic switch box and waterproof box are made of high quality PC or ABS, a unique tool that is used for injection molding produces a new type haigh security product to protect them from the severe environment. The box body may be different and has various specifications, it cover can be non-transparent or transparent, can be hinge type or bolted. This switch box are specially used on button, terminal boards,electronic device control equipment, is featured with waterproof, dustproof and corrosion proof , can be used instead of glass fiber seal box.
1.Elegant external shape, high firmness.
2.Combined body and cover are fixed with four plastic screws that are difficult to fall off.
3.Its specification and size can be designed based on the customer requirements.
4.Economic and affordable.
5. Net weight only accounts for the iron box of about 1/4, to facilitate handling and operation, no corrosion, good insulation.
| Item NO. | L W H (mm) | Hole Qty | Hole Size (mm) | IP | GW (kg) | NW (kg) | QTY/CTN (pcs) | Carton Size (mm) |
| GD-KC | 70*40 | 4 | 23 | 65 | 12 | 11 | 250 | 38*38*53 |
| GD-KC | 80*40 | 4 | 23 | 65 | 12.8 | 11.8 | 200 | 69*43*24 |
| GD-KC | 80*80*40 | 6 | 23 | 65 | 18.5 | 17.5 | 200 | 51*41*47 |
| GD-KC | 100*100*50 | 6 | 23 | 65 | 16 | 15 | 100 | 60*47*31 |
| GD-KC | 120*80*40 | 8 | 29 | 65 | 13 | 12 | 100 | 54.5*27*60.5 |
| GD-KC | 150*110*70 | 10 | 29 | 65 | 14 | 13 | 60 | 51*50*39 |
| GD-KC | 190*140*70 | 10 | 37 | 65 | 11 | 10 | 30 | 47*42*39 |
| GD-KC | 240*190*90 | 12 | 37 | 65 | 14 | 13 | 20 | 52*41*51 |
| GD-KC | 300*220*120 | 12 | 48 | 65 | 10 | 9 | 10 | 67*32*49 |
| GD-KC | 380*300*120 | 12 | 48 | 65 | 18 | 17 | 10 | 64.5*41*67 |
| GD-KC | 460*380*130 | 12 | 48 | 65 | 16 | 15 | 5 | 67*41*49 |
Box material : ABS
Stopper material : PVC
Material characteristics : Impact , heat , low temperature and chemical resistance , excellent electrical performance and surface gloss , etc .
Application : Suitable for indoor and outdoor etectric , communication , fire fighting apparatus , iron and steel smelting , petrochemical industry , electron , power system , railway , building , mine , air and sea port , hotel , ship , works , waste water treatment equipment , environmental eauipment and so on .
Installation : 1 Inside : there are the installation holes in the base for circuit board or din rail .
2 Outside :The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base .
Outlet hole : Cutting a hole in the PVC stopper as related cable size or installing cable gland to get better waterproof performance
