AC Safety C Type Circuit Breaker MCB

We are a factory specializing in producing high-quality AC Safety C Type Circuit Breaker MCB. Our products are reliable, durable, and meet all safety standards.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Detailed Photos
Overview

Basic Info.

Poles Number
4
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
ISO9001-2000, CE
Moble No.
Byb1 Series
Color
Customized
Type of Trip
Thermal or Magnetic
Installations
Mounting on 35mm DIN Rail
Modules
1;2;3;4
Paint Finish Customized
Customized
Ambient Temperature
-5 to 40
Degree
20
Transport Package
Carton
Trademark
OEM
Origin
China
HS Code
8536200
Production Capacity
100000PCS/Month

Product Description

AC Safety C Type Circuit Breaker MCB



Product Parameters



Hot Sale 1-4P  Mini Circuit Breaker
For protection of general power distribution (IEC/EN 60898-1)


Poles 1P 2P 3P 4P
Electrical performance
Functions short circuit protection,overload protection,isolationg,control
Rated frequency f (Hz) 50-60Hz
Rated working voltage Ue V AC 230/400 400
Rated current In(A) 1,2,3,4,5,6,10,16,20,25,32,40,50,63
Rated insulated voltage  Ui (V) 500
Impulse withstand voltage  Uimp kV 4
Instantaneous tripping type DZ47-63 B/C/D
    B/C/D
Rated short circuit Icn(kA)         6
    10
Release type Thermal magnetic type
Service life(O~C) Mechanical  Actual value 20000
     Standard value  4000
  Electrical   Actual value 8000
     Standard value  4000
Connection and installation
Protectiom degree IP20
Wire   mm² 1~35
Working temperature -5 ~+40ºC
Resistance to humidity and heat Class 2
Altitude above sea ≤2000
Relative humidity +20ºC , ≤90% ;+40ºC , ≤50%
Pollution degree 2
Installation environment Avoid obvious shock and vibration
Installation class Class II , Class III
Mounting DIN35 rail
Combination with accessories
Auxiliary contact Yes
Alarm contact Yes
Shunt release Yes
Undervoltage release Yes
Auxiliary contact+Alarm contact Yes
  AC Safety C Type Circuit Breaker MCB AC Safety C Type Circuit Breaker MCB
AC Safety C Type Circuit Breaker MCB

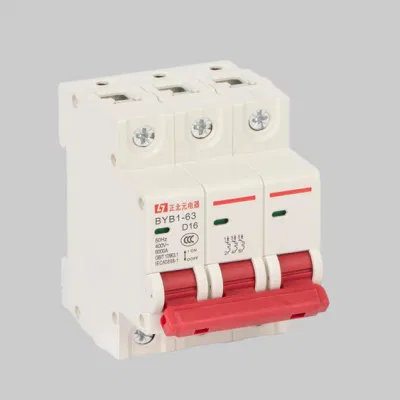

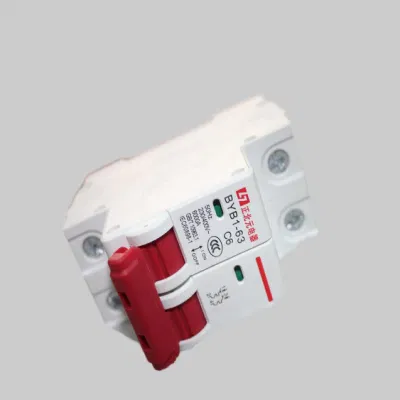

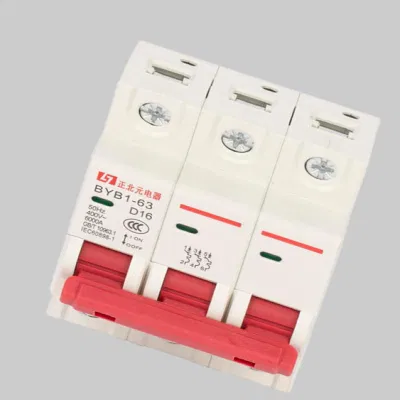

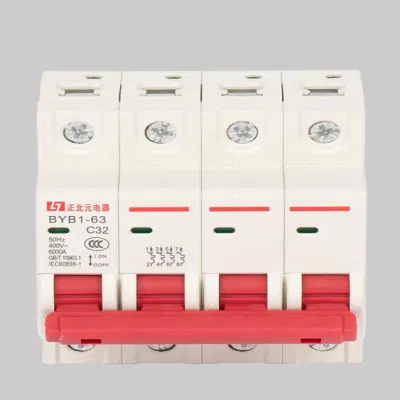

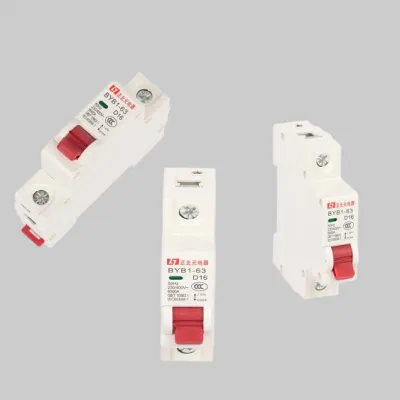

Detailed Photos

AC Safety C Type Circuit Breaker MCB AC Safety C Type Circuit Breaker MCB AC Safety C Type Circuit Breaker MCB AC Safety C Type Circuit Breaker MCB AC Safety C Type Circuit Breaker MCB AC Safety C Type Circuit Breaker MCB

AC Safety C Type Circuit Breaker MCB AC Safety C Type Circuit Breaker MCB
