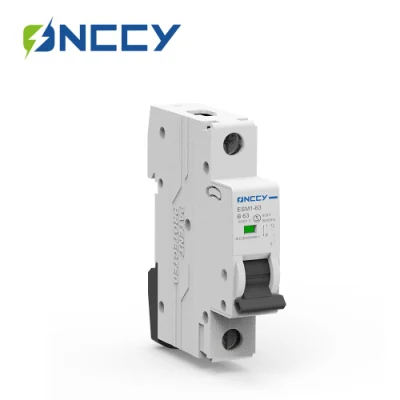

AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker

AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker - A Factory specializing in manufacturing high-quality electrical products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
Overview

Basic Info.

Model NO.
esm1
Arc-extinguishing Medium
Air
Installation
DIN Rail
Structure
MCB
Poles Number
3
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, Solar Arrester Surge Protector
Certification
VDE, ISO9001-2000, CE, CB, CCC, SAA
ICU
10ka
Voltage Ui
500V AC
Protection Degree
IP20
Connection
Top and Bottom
Over/Under Voltage Release
Yes
Contact Position Indicator
Yes
Transport Package
by Sea/Air
Specification
box
Trademark
Onccy
Origin
China
HS Code
8536490090
Production Capacity
1000000PC/Year

Packaging & Delivery

Package Size
23.00cm * 9.50cm * 8.50cm
Package Gross Weight
1.200kg

Product Description

AC 230V 230V 400V 1P 4P 100A Mini MCB Circuit Breaker

AC circuit breaker is an essential safety device used in electrical systems to protect electrical circuits from excessive current flow due to an overload or a short circuit.  AC Circuit breakers are typically used in residential, commercial, and industrial applications to maintain the safety and functionality of electrical systems.

Applications and Markets

AC mini circuit breakers (MCBs) are compact, modular protection devices designed for low voltage electrical systems. They are typically used in residential, commercial, and light industrial ,Backup Power System,Electric Vehicle Charging Stations and so on for the protection and control of electrical circuits.

Renewable Energy Systems: MCBs can be found in solar photovoltaic (PV) systems, wind turbines, and other renewable energy installations, where they protect inverters, charge controllers, batteries, and other components from overloads and short circuits.



Features and Benefits

Safety

AC Circuit breakers help prevent electrical fires and damage to electrical equipment by interrupting the flow of current in case of a fault.

Convenience

AC Circuit breakers can be easily reset after resolving the issue that caused the trip, unlike fuses that need to be replaced.

Selectivity

AC Circuit breakers can be designed to trip at different current levels, allowing for better coordination and isolation of faulty circuits in a system.

Reliability

AC Modern circuit breakers are designed to operate with high accuracy and minimal maintenance, ensuring the long-term protection of electrical systems.



ESM1-63(10KA) AC Circuit Breaker B/C/D curve 2P/3P/4P 415V~500V 63A 7.5KA

Product Benefits

  • Choice to use Bus bar or cable in the same terminal, provides reliable connection.
  • Two step snapping mechanism for easy & efficient mountion in 35mm DIN Rail steadily.
  • Clear indication of the ON/OFFswitch status.
  • IEC 60898 10KA
  • MCB can 100% pass 10KA
  • Over 20,000 cycles ,mechanical and electrical endurance operation

ESM1-63(10KA) AC Circuit Breaker MCB B/C/D curve 1P 240/415V~ 63A 10KA

Product Benefits

  • Choice to use Bus bar or cable in the same terminal, provides reliable connection.
  • Two step snapping mechanism for easy & efficient mountion in 35mm DIN Rail steadily.
  • Clear indication of the ON/OFFswitch status.
  • IEC 60898 10KA
  • MCB can 100% pass 10KA
  • Over 20,000 cycles ,mechanical and electrical endurance operation

ESM2-63 AC mini Circuit Breaker MCB B/C/D curve 1P 2P 3P 4P 63A 415V 6KA

Product Benefits

  • Choice to use Bus bar or cable in the same terminal, provides reliable connection.
  • Two step snapping mechanism for easy & efficient mountion in 35mm DIN Rail steadily.
  • Clear indication of the ON/OFFswitch status.
  • IEC 60898 10KA
  • MCB can 100% pass 10KA
  • Over 20,000 cycles ,mechanical and electrical endurance operation

Technical Data

Electrical Features
Rated current (In) 1-63A
Poles 1P 2P 3P 4P
Rated voltage (Ue) 1P: 240/415V~     2/3/4P:415~
Insulation voltage (Ui) 500V
Rated frequency 50/60Hz

Overload Current Protection Characteristics
Test Procedure Type Test Current Initial State Tripping or Non-tripping Time Limit Expected Result Remark
A B.C.D 1.13In Cold t≤1h no tripping


B



B.C.D



1.45In



After test A



t≤1h



tripping

The current steadily

rise to the specified value within 5s

C B.C.D 2.55In Cold 1s<t<60s(In≤32A)   1s<t<120s(In>32A) tripping


D

B 3In

Cold



t≤0.1s



no tripping

Turn on the auxiliary

switch to close the current

C 5In
D 10In


E

B 5In

Cold



t≤0.1s



tripping

Turn on the auxiliary

switch to close the current

C 10In
D 20In



Detailed Photos



AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker

AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker

AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker ONCCY Electrical Co, Ltd as Professional Electrical Components Manufacturer for Solar PV, Battery Energy Storage and EV Charging System. 30+Years Of Production Experience and Service.ONCCY Electrical Co, Ltd main products are including DC and AC circuit breaker (MCB), DC and AC isolation switch DC molded case circuit breaker (MCCB), DC fuse, DC lighting surge protector (SPD) and so on.

With our driven engineer team, over 200+ global experts and distribution & service network spanning North America, South America, Europe, Asia, Africa and Oceania, ONCCY has empowered homeowners and professionals in more than 100 countries and regions to join the journey to true open energy. Now we are favored by the market as a trustworthy partner to our investors, installers and end consumers.

AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker
AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker
AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker AC 230V 230V 400V 1p 4p 100A Mini MCB Circuit Breaker FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer. We have 30,000 square meters of self-owned plant.

Q: Do you have any certificates?
A: Yes,we have UL, TUV, CB, SAA, CCC, CE and other certifications.

Q: How do we make a quick response to customer , 5 inquiry ?
A: Our professional team will reply you online or by email,Skype, whatsApp and so on.

Q: Do you have any exporting experience?Which countries did you export to before?
A: We have lots of exporting experience and customers in many countries,such as America, Japan,Australia,UAE,Canada,Vietnam,Turkey,Thailand,Russia,UK,etc.

Q:Can you supply samples for checking ?
A: Yes, we can supply samples, pls contact for detailed required.

Q:How long is your delivery time?
A: Generally it is within 3days for small qty. Or it is around 15-20 days to a general order.

Q: What is the standard of package of your goods?
A: Export standard package or special package according to customer requirement.

Q:How about inspection?
A: We have the whole inspection system from raw material to end products include transient test, delay test,mechanical life test and so on.Q:What is the service offered by company?

A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale.
