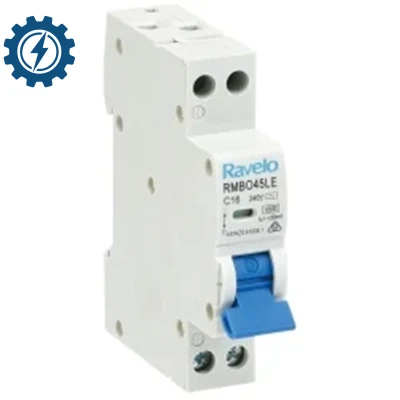

Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker

Protect your electrical system with our Air Switch Small Circuit Breaker. Isolate and open circuits for safety. Factory direct for reliable quality.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Information
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • Production Equipments
  • More products
Overview

Basic Info.

Model NO.
VS1-12
Poles Number
2
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
VDE, ISO9001-2000, CE, CB, CCC
Name
Circuit Breaker
Color
Customizable
Productivity
60000PCS/Month
Customization
Available
Mechanical Life
10000
Current
1-63A
Transport Package
Standard Box
Specification
GYM10T-4.5kA-2P 32-40A
Trademark
Leicheng
Origin
China
HS Code
8536200000
Production Capacity
50000/Day

Product Description

Product Description

GYM10 miniature circuit breaker(MCB) is mainly used for protection against overload and the short circuit under the AC 50Hz/60Hz, rated voltage 230V/400Vand rated current from 1A to 63A. It also can be used for non-frequent on-and-off switch operations under normal circumstances.

*In compliance with IEC /EN60898-1

*With indicator function in the contact position.

*Single busbar design.

*Maximum connecting ability of 25mm², wiring torque 3N*m, applicable to a variety of installing equipment, wiring stronger.

*The price-quality ratio is very high.



Product Parameters
Electrical features
Rated current In 1-63A
Poles 1P 2P 3P 4P
Rated voltage Ue 1P:230/400V~  2/3/4P:400~
Insulation voltage Ui 500V
Rated frequency 50/60Hz
Rated breaking capacity 4500/6000A
Rated impulse withstand voltage(1.2/50)Uimp 6kV
Dielectric test voltage at and ind. freq. for 1min 2kV
Pollution degree 2
Thermo-magnetic release characteristic B C D
Electrical life 4000
Mechanical life 10000
Installation
Contact position indicator Yes
Protection degree IP20
Reference temperature for the setting of the thermal element 30ºC
Ambient temperature (with daily average s35C) -5~+40ºC
Storage temperature -25~+70ºC
Terminal connection type Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable 25mm²
18-3
Tightening torque 3.0N*m
22
Mounting On DIN rail FN 60715(35mm)
by means of a fast clip device
Connection Top and bottom
Combination with accessories
Auxillary contact Yes
alarm contact Yes
Shunt release Yes
Under-voltage release Yes




Detailed Information

Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker

Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker
Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker
Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker
Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker
Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker



Company Profile



Hebei Leicheng Technology Power Co., Ltd, It is a joint venture. My company is a manufacturer including design, development, produce and sale, professional producing MCB, MCCB, RCCB and AC contactor etc. Product enterprises. The company owns import and export power of self-run, expanding Europe and America, Middle East, Southeast Asia etc. Market, set a good Public praise.

The company have more than 1500 workers, including senior engineer among them, engineer at inside of more than 100 technician. And then set up to cover area more than 50 acres, construct area is more than 38000 square meters of the modern industrial zone, providing with the forerunner's standard laboratory and various examination equipments.

Under Korlen people to make great effort unremittingly, designed and developed by oneself, develop and produce the series of MCB, RCCB filled up local blank, attain inter-national advanced level, and acquire more than 20 national patents. The company acquires "30 strong eminent enterprises, top ten of export income, yueqing star class enterprise, attach importance to contract and keeps promise" title of honor for many times past years. Company still the initiative pass ISO 9001 management system verification and 14001 environments management system verification. Our product passed quality verification of domestic and international authority organization like the CB\ SEMKO\ NF\ SIRIM\ SNI\ CE \PCT\ TSE, In the meantime high breaking capacity breaker of our company in this city is the unique product which got " Yueqing famous brand product" by Yueqing people government.

Korlen Electric Appliances is willing to make friends with social public, the world outside businessman join hands together for prosperous society and development to build a brighter future.
Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker
Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker
Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker

Certifications



Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker
Packaging & Shipping




Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker





Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker

Production Equipments




Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker


More products

Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker
Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker
Air Switch Small Circuit Breaker Protection Isolation Open Circuit Breaker





FAQ

If I'm interested in your MCB,when can I receive your quotation and detail information after send the enquiry?
All your enquiry will be replied within 8 hours.



  2

Can I get samples before place an order ? because I really don't know how is your MCB quality.
Of course! We also believe that sample order is the best way to prove the quality.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!



  3

Can you print our own logo?
Yes,Our company are available for OEM.





  4

How long is the quality guarantee?
2 years warranty for MCB, our products are 100% inspection.





  5

How long is the delivery time?
It usually takes about 3-5 working days for sample order,and 10-20 days for official order.
