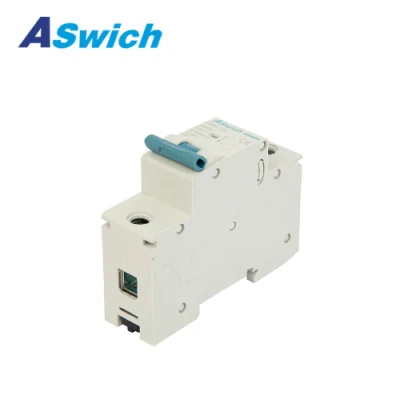

Aswich 1p 10A DC 125V Circuit Breaker MCB C Curve

Get top-quality Aswich 1p 10A DC 125V Circuit Breaker MCB C Curve from our factory. Reliable, durable, and affordable. Shop now for best deals.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
Overview

Basic Info.

Model NO.
EDB1-63 series
Poles Number
1p,2p
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
CE, CB, SAA
Voltage Ui
500V AC
ICU
10ka
Transport Package
by Sea/Air
Specification
box
Trademark
Aswich
Origin
China
HS Code
853650
Production Capacity
1000000PC/Year

Product Description

Solar PV Circuit Breaker DC100V DC200V DC MCB 63A to 250A are designed to provide overcurrent protection within appliances or electrical equipment, where a branch circuit protection is already protection or not required. Devices are designed for direct current (DC) control circuit applications in Solar PV Systems, Solar Energy Battery storage systems.

Model Name: EDB1-125
Pole No.: 1P, 2P
Rated Voltage: DC 100V/200V
Rated Current: 63A,80A,100A,125A,250A
Curve Type: B/C
Breaking Capacity: 6kA/10kA
Mounting Support: DIN rail 35mm


Product Description
  • Advantages of DC Circuit Breaker MCB 1P,2P
    1. DC Circuit Breakeris for non-professional operation by those untrained, and no maintenance is required.
    2. Satisfying conditions and applications as mentioned above,MCB with "ON-OFF" indicating device is considered suitable for isolation function.
    3. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.
    4. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.
    5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
    6. Protection against both overload and short circuit
    7. Contact position indication
    8. Applicable to terminal and pin/fork type Busbar connection
    9. Easy mounting onto 35mm DIN rail

Detailed Photos

Aswich 1p 10A DC 125V Circuit Breaker MCB C CurveAswich 1p 10A DC 125V Circuit Breaker MCB C CurveAswich 1p 10A DC 125V Circuit Breaker MCB C CurveAswich 1p 10A DC 125V Circuit Breaker MCB C Curve

Aswich 1p 10A DC 125V Circuit Breaker MCB C Curve Aswich 1p 10A DC 125V Circuit Breaker MCB C Curve Aswich 1p 10A DC 125V Circuit Breaker MCB C Curve
