Basic Info.
Model NO.
FRTB-ZH1
Type
Assembly Line
Function
Sales Packing
Packaging Technology
Mildew Proof Packaging
Application
Dairy Products, Cleaning, Detergent, Skin Care Products
Soft and Hardness
Rigid Package
Circulation Function
Single Packing
Frequency of Use
Several Packaging
Mode of Operation
Domestic Product Packaging
Guarantee
1 Year
After-Sale Service
Engineers Aviliable for Overseas Machinery Service
Labor Needed
1 Worker
Voltage
220V
Capacity
8000 PCS/Hour
Power
2.5kw
Transport Package
Wooden Box
Specification
2000*2000*1500mm
Trademark
FURI
Origin
China
HS Code
8422303090
Production Capacity
30 Sets/Month
Product Description
FRTB-ZH3 Disc Top Cap Assembly Machine

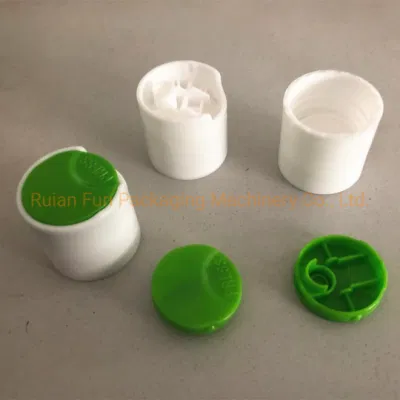

Plastic cap parts join/assembling machine
Machine Features1.Instead of Manual work,this machine can auto assembly aluminum caps with cork and folding in one machine,It increase production efficiency.
2.The machine can folding and assembly at speed of 4000-5000 pcs per hour,much fast and clean..
3.Especially for the products need to meet high requirements on the sanitary condition,it can avoid second-pollution.
4.Automatic Counting device installed, which you can preset the quantity per package,when it reach the quantity, the machine can stop automatic, it can increase your working efficiency and accuracy.
5.Adopts Auto vibrator sorter and feeder, which can make the dis-ordered caps in order and in correct direction, to ready the caps for main machine.
6.The Electric control system we use Variable Frequency Control Technology ,which is much more easy operate,stable,widely used, and longer using life.
7.This machine meet "GMP"and "CE" standards.
Structure of Equipment
Automatic cap sorting machanism: it puts the messy bottle cap in order and makes all cap mouth upwards
Cap delivering amchanism: it delivers the ready cap into the cap assembly machanism in order and correct way.

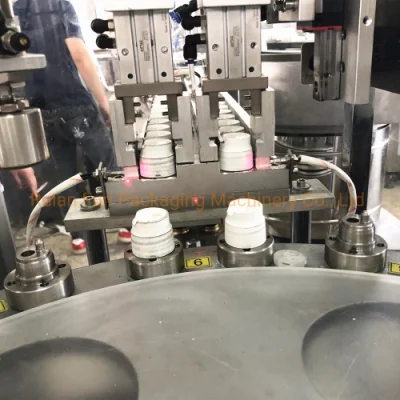

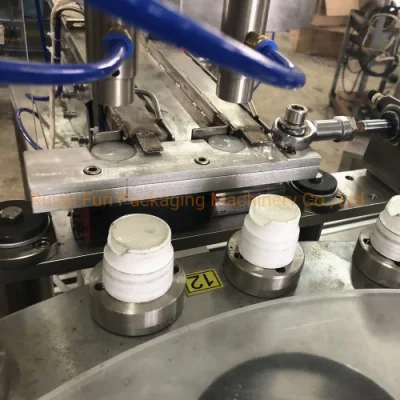

Cap assembly machanism: it combines 2 pieces and completes the assembly process.

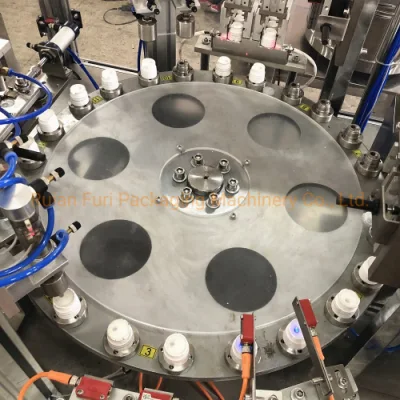

Assembly Unit:
A: Bottom cap feeding
B: Bottom cap second pressing
C: Top disc feeding
D: Top disc detective
E: Top disc second pressing
F:Unqualified cap rejection
G: Completed cap discharge
Main Technical Parameters
| Productivity capacit | 60pcs/Min |
| Power | 2.5 KW |
| Rated Voltage | 220V,Single Phase |
| Compressed air | 0.5m³/hour 8kg pressure |
| Machine Size | 2000mm×2000mm×1500mm |
| G/N.W. | 900/700KG |
OUR COMPANY
MACHINE PACKAGE
We customize all kinds of non-standard bottle cap auto processing equipments:
More Details , Kindly contact us.
