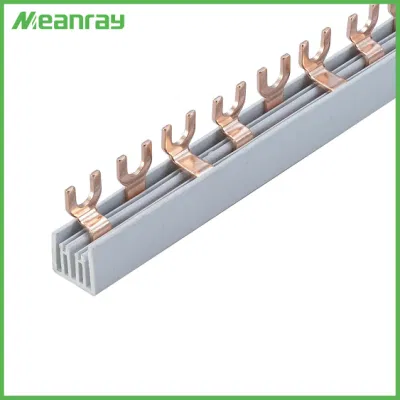

Busbar for 1p 2p 3p 4p C45 MCB Flexible Busbar 4p Copper Busbar

Our factory produces high-quality busbars for 1p, 2p, 3p, and 4p C45 MCBs. Our flexible copper busbars are reliable and durable.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MR-C45-4P
Application
Conduct Electricity
Character
Environmental Protection
Species
Terminal
Interface Type
AC/DC
Type
C45 Type
Material
Red Copper (T2 99.6% )
Production Process
Press
Shape
Pin
Brand
OEM
Transport Package
Carton Packing
Specification
Red copper and fire-resistant PVC
Trademark
Meanray/OEM
Origin
Yueqing Zhejiang
HS Code
8536909000
Production Capacity
5, 00, 000PCS/Month

Product Description

Busbar for 1P 2P 3P 4P C45 MCB Flexible Busbar 4p Copper Busbar

Product description of busbar:
Terminal Block Connector Pure Copper Busbar is used for kinds of circuit breaker, copper busbar 4p ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.

Technical features of busbar:
1.  Material is of fire-resistant PVC and redl copper
2.  Current rating is up to 125A
3.  Rated voltage is up to 415V
4.  Applicable ambient temperature -25~+50
5.  Standard length 1m, other length tol be made upon request.
6.  Good conductivity, low contact resistance, safe and reliable.

How to choose the busbar:
Busbar for 1p 2p 3p 4p C45 MCB Flexible Busbar 4p Copper Busbar

Packing information:


C45 TYPE copper busbar Dimension PCS/CTN Packing G.W kgs N.W kgs Material
C45-1P-20A 1.0*5mm 200 101*22*12 26 25 Brass
C45-1P-32A 1.0*5mm 100 101*12*9 14 13 Copper
C45-1P-40A 1.2*5mm 100 101*12*9 16 15 Copper
C45-1P-63A 1.5*7mm 100 101*14*10 21 20 Copper
C45-1P-80A 1.5*9mm 100 101*14*10 23 22 Copper
C45-1P-100A 1.8*9mm 100 101*14*10 26 25 Copper
C45-1P-125A 2*10mm 100 101*14*12 30 29 Copper
C45-2P-20A 1.0*5mm 100 101*22*12 26 25 Brass
C45-2P-32A 1.0*5mm 100 101*22*12 26 25 Copper
C45-2P-40A 1.2*5mm 50 101*14*10 16 15 Copper
C45-2P-63A 1.5*7mm 50 101*14*10 18 17 Copper
C45-2P-80A 1.5*9mm 50 101*14*10 20 19 Copper
C45-2P-100A 1.8*9mm 50 101*14*12 23 22 Copper
C45-3P-20A 1.0*5mm 50 101*16*14 19 18 Brass
C45-3P-32A 1.0*5mm 50 101*16*14 19 18 Copper
C45-3P-40A 1.2*5mm 50 101*16*14 20 19 Copper
C45-3P-63A 1.5*7mm 50 101*22*10 26 25 Copper
C45-3P-80A 1.5*9mm 30 101*22*10 29 28 Copper
C45-3P-100A 1.8*9mm 50 101*22*12 24 23 Copper
C45-3P-80A 1.7*8mm 50 101*22*10 30 29 Copper
C45-3P-100A 2*10mm 30 101*14*10 26 25 Copper


Workshop for busbar:
Busbar for 1p 2p 3p 4p C45 MCB Flexible Busbar 4p Copper Busbar
Copper busbar show :
Busbar for 1p 2p 3p 4p C45 MCB Flexible Busbar 4p Copper Busbar


FAQ of
busbar :

Buyer: If we need some sample, whether you can supply?
Seller: Yes, we can.

Buyer: Our current is 63A, is ok?
Seller: Our max current is 125A. the current is less than 125A, is ok.

Buyer: Can we use our LOGO?
Seller: Yes, we can use your LOGO and company information

Buyer: C45 type copper busbar only used for C45/DZ47 circuit breaker?
Seller: No. Used for kinds of MCB.  More contact area and conductive performance is better
