China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)

Shop China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW). We are a manufacturer dedicated to providing top-quality products at great prices.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
DSP-50KW
Condition
New
Max Current
120A
Coaxial Cables
5m,6m,7m...10m,20m,30m,40m,50m,60m
Application Range
Heating, Soldering, Welding
Max Power
50kw
Mode
Digital Type
Protection Level
IP54
Work Frequency
10-40kHz
Characteristic
Energy Conservation and Environment Protection
The Cooling Water Pressure
4-6bar
The Water Flow Rate
≥25L/Min
Feature
High Efficency Energy Saving
Cooling Method
Water Cooling
Delivery Time
3-7days
Transport Package
Export Wooden Box
Specification
CE, SGS
Trademark
ORD
Origin
China
HS Code
8514400090
Production Capacity
100000set/Year

Product Description

China Factory direct supply IGBT  Digital induction heating machine for heat metal coating machinery (DSP-50KW, 80KW )

China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)

China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)

The machine can appliction:

     Forging--------------------------(Bar,flat plate,bar end heating,pipe ends,bar end heating)
     Pre-heating-------------------------------(Pipe,steel wire,stainless steel wire)
     Brazing---------------------(Saw blades,carbide tools,cooper tube,aluminum part,drilling tools,Pan)
     Annealing-------------------(Steel pipe,golf ball head,brass lock,aluminum pan)
    Hardening-------------------(Gear,shaft,pipe,bearing,pump fitting,steel plate,roller)
    Shrink fitting------------------(motor,pipe)
    Melting-----------------------(Iron,steel,brass,aluminum,silver,zinc)


China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)




    Indcution heating machine for brazing of short circuit ring / copper wires on the motor stator and copper plate/pipe , rotor coil , heat exchanger
China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)

1 The integrated modular induction heating equipment manufactured by our company is the newest high-tech product formed by adopting the most advanced power electronic power devices and unique converter control technology in the world with reasonable structure design.

1) This equipment uses the digital signal processing (DSP) digital real-time high-speed signal processor and DDS (Direct Digital Synthesizer) direct digital frequency synthesizer.

2)Using advanced digital control technology and digital phase-locked loop tracking technology and computer control technology, the system structure is safe and reliable, stable performance and simple operation.

3)  High temperuture: the heating temperature can reach over 1500C.
4)  Quick Heating: Reach the target temperature quickly!
5) Various material useing: Applicable to all kinds of metal material, such us: stainless steel, carbon steel, copper, brass, alumimum, Zinc, tin, titanium and so on.

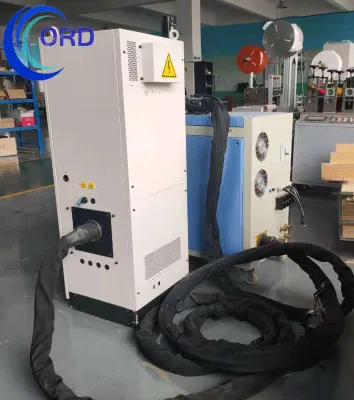

6)  Hand-hold coaxial transformer:Easy to hand hold work, can also automatically intgrate into the robot arm.
7) Quick change coil/inductor:induction coil/indcutor made into different shapes and sizes, and can be easily removed from HHT TO replace another coil.
8) It is suitable for Heat and weld of copper pipe and copper pipe, pipe and steel pipe, steel tube, copper tube and stainless steel.
9) Small size, light weight, high protection, high precision, protable simple and convenient,
10)The car can be equipped with positioning caster, which can be used for fixed place or mobile.
11) RS485 communication, can control in your PLC system.  It can be compatible with the existing PLC on the market, and is conducive to the functional transformation of the existing PLC system and the further expansion of the automation system.
12) More options for working mode: Time, temperature, Power, constant Power and so on. Can know the heating curve.

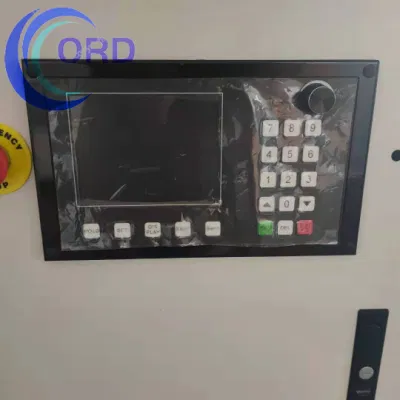

13) Full Digital control, can shows heating time, heating power, heating current, Heating inpedance, frequency and so on in the machine.
14) IP54 can work at outside that the environment not good.
15)  5M, 6M, 7M, ....10M, ...20M, 30M,40M,50M,100m and so on cables Connection with heating head can handle it will not reduce the power , can heat some workpiece that normal coil can not get it

Type DSP-50KW
Rated Output Power 50KW
Rated Output Frequency 10-40KHZ
Can expand frquency 1-100khz
Overload Heating time 45%/10min
Power Adjust Arrange 1.5-100%
Coaxial Flexible cable length 40M
Input Voltage 360-420v 50-60hz
Max power 50kw
Protection Level IP54
Environment Temperature +5c--+50C
Cooling water flow 21L/MIN
Cooling water Pressure 4-8Bar
Weight About 100kg

China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)


China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)
China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)
China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)
China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)

China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)


China Factory Direct Supply IGBT Digital Induction Heating Machine for Heat Metal Coating Machinery (DSP-50KW, 80KW)
Advantage:
1 Easy to operate, can programme
2 High Waterproof.
3 Can bear high temperature, allow the max environment temperature reach to 180C.
4 High safty.
5 Full digital
6 Anti-interference.
Control Function:
Main wire Switch
Main Part Switch
Remote Switch
Water Pressure Protection
Water flow Protection
System safty Protection
Chiller's Failure Autognosis
Phase protection
Timmer Switch
Over-heating protection
Over-voltage protection
Over-current Protection
Frequency protection
Power can programme
Display function:
Temperature Checking Disply
Time setting Display
Working Model Display
Working state display
User paramater display
Failure inquire disply

Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.

3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenane
6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee.
