Basic Info.
Model NO.
MDA-1308M
Application Range
Household
Shell Material
Steel Plate
Shell Protection Grade
IP56
Brand
Sieben Electric
Phase
Three
Busbar Material
Copper
Earth Bar Material
Copper
Netural Bar Material
Copper
Mounting Type
DIN-Rail
Front Window
Customized
Finish
Plastic Powder Coated
Delivery Time
1X40hq in 25 Days
Body Color
White or Customized
Transport Package
1 PC in 1 Box, 2 Boxes in 1 Carton
Specification
4/6/8/12 Way
Trademark
Sieben Electric
Origin
China
HS Code
8537109090
Production Capacity
5X40hq in 1 Month
Product Description

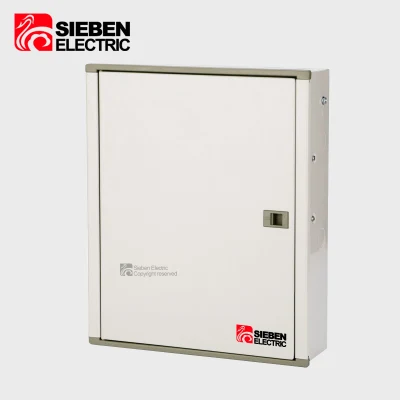

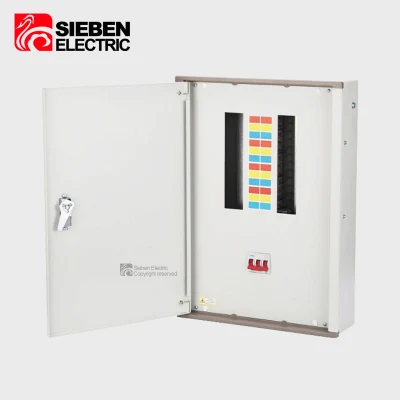

MDA-1 Series Three Phase Metal Distribution Box
Application
MDA-1 series three phase distribution box has been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. They are available in Din-rail designs for indoor applications.
Features
Made out of high quality steel sheet of up to 0.8 - 1.2 mm thickness
Matt-finish polyester powder coated painting
Knockouts provided on top and bottom of the enclosure
Accept all Din-rail type miniature circuit breakers
Suitable for AC 50/60Hz, rated voltage 230/415V, rated current up to 100A
Wider enclosure offers the easy wiring and the excellent heat dissipation
Flush and surface mounted designs
Specifications
Detailed Pictures
FAQ
1. Package & Shipping
1 pc in 1 box and 2 boxes in 1 carton. Single box can be designed according customers' requirements.
Nearest ports for shipping are Wenzhou, Ningbo & Shanghai
2. Delivery Time
20 days for 1X20ft container, 25 days for 1X40HQ container
3. Payment Terms
30% as deposit, and the balance against delivery. (T/T, L/C in EXW, FOB, CNF, CIF...)
4. Sample Policy
After the prices confirmed, we can send you a sample for your checking quality.
Our sample is for free but the express cost should be affored by your side.
5. R&D, Customization & Design
We have the professional team to make R&D, Customization & Design according to customers' requirements or ideas.
We can also produce the goods according to customers' drawings.
6. About After-sales Services
All of our goods undergoes a comprehensive control of hydraulic tests in order to guarantee the quality.
If some goods that you received has any problem, please contact the sales persons who will give you solution in 24 hours.
Application
MDA-1 series three phase distribution box has been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. They are available in Din-rail designs for indoor applications.
Features
Made out of high quality steel sheet of up to 0.8 - 1.2 mm thickness
Matt-finish polyester powder coated painting
Knockouts provided on top and bottom of the enclosure
Accept all Din-rail type miniature circuit breakers
Suitable for AC 50/60Hz, rated voltage 230/415V, rated current up to 100A
Wider enclosure offers the easy wiring and the excellent heat dissipation
Flush and surface mounted designs
Specifications
| Way No. | Model Code | Breaker Pole No. | Main Switch | Spare Parts |
| 4 | MDA-1304 | 12 | 1 Piece 3 Pole 100A | Earth Bar Natural bar Bus Bar Pan |
| 6 | MDA-1306 | 18 | ||
| 8 | MDA-1308 | 24 | ||
| 12 | MDA-1312 | 36 |

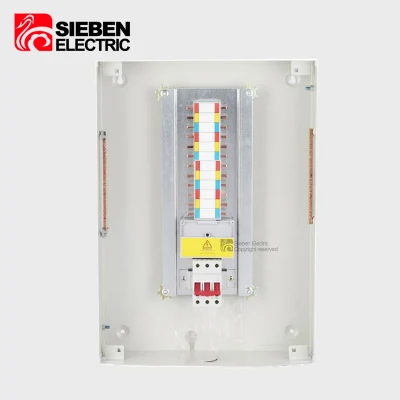

Detailed Pictures
 | Hard hinges provide thousands times of ON-OFF opperations |
| Pure new nylon material plastic parts and lock |  |
 | Accurate welding and plastic powder painting technology |
| Pure copper earth bar and netural bar |  |
 | Pure copper fork/pin type busbar with insulated plastic cover |
| 35mm standard metal din-rail suitable for all din-rail type MCBs |  |
FAQ
1. Package & Shipping
1 pc in 1 box and 2 boxes in 1 carton. Single box can be designed according customers' requirements.
Nearest ports for shipping are Wenzhou, Ningbo & Shanghai
2. Delivery Time
20 days for 1X20ft container, 25 days for 1X40HQ container
3. Payment Terms
30% as deposit, and the balance against delivery. (T/T, L/C in EXW, FOB, CNF, CIF...)
4. Sample Policy
After the prices confirmed, we can send you a sample for your checking quality.
Our sample is for free but the express cost should be affored by your side.
5. R&D, Customization & Design
We have the professional team to make R&D, Customization & Design according to customers' requirements or ideas.
We can also produce the goods according to customers' drawings.
6. About After-sales Services
All of our goods undergoes a comprehensive control of hydraulic tests in order to guarantee the quality.
If some goods that you received has any problem, please contact the sales persons who will give you solution in 24 hours.
