Circuit-Breaker Failure Protection Air Singi 6ka Circuit Breaker Price Dz47le-63

Get the best price for Dz47le-63 6ka Circuit Breaker from Air Singi. We offer factory direct prices for high-quality circuit breaker failure protection products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Information
Overview

Basic Info.

Model NO.
DZ47LE-63
Poles Number
1-4
Type
Earth Leakage, Lighting "C"or Motor"D"
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
CE, CB, CCC
Keyword
Miniature Circuit Breaker
Keyword2
MCB
Keyword3
Circuit Breaker
Protection
Overload Protection
Rated Current
6-63AMP
Standard
IEC1009-1
Pole
1-4
Case Material
PA66
OEM
Avaiable
Color
White
Transport Package
Standard Exporting Carton
Trademark
SINGI
Origin
Zhejiang, China
Production Capacity
5000 Piece/Pieces Per Day

Product Description

Product Description

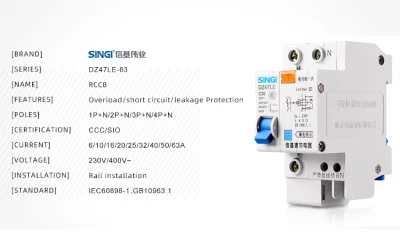

Circuit-Breaker Failure Protection Air Singi 6ka Circuit Breaker Price Dz47le-63Circuit-Breaker Failure Protection Air Singi 6ka Circuit Breaker Price Dz47le-63Circuit-Breaker Failure Protection Air Singi 6ka Circuit Breaker Price Dz47le-63

Key Specification:

Singi residual current circuit breaker 1-4 pole with CE certificate
original metal components suppler of CHNT&Delixi



Key Parameters:

· CE/ISO1009-1/CCC certificates;
· Rated voltage:230/400VAC;
· frequency:50/60Hz;
· Rated current:6,10,16,20,25,32,40,50,63A;
· 1+N/2/3/3+N/4poles available;
· Mechniacal life:20,0000times;
· Flame-redardant:PA66 nylon material;
· Protection degree:IP20;
· Standard:IEC1009-1;
· Enduring tem.30°C;
· Breaking Capacity:6KA;
· Lighting/Motor protection optional;
· Protections:over load,short circuit and over/unver voltage can be extra supplied.
· More than 10 years professional distribution box manufacturer;
· Parts are processed by ourselves to make sure of the quality  abd can be  supplied for your DIY;
· Quality insurance 18months;
· factory established in 1980.


Application:

DZ47LE-63 series residual current circuit breaker is applied in the power system of AC 50Hz,single phase 230V,three phases 400V.When somebody gets and electric shock or the leakage current exceeds the default value, the ELCB can cut off the power automatically to protect the personal safety and prevent the equipment from the fault resulted from the leakage current.

The ELCB also can protect the circuit against overload and short circuit or can be used for the unfrequent switch of the circuit under normal condition. And extra protection functions like over voltage, under voltage can be added according to customers' request.

It conforms to the standard IEC1009-1,GB16917.1.



Structure:

DZ47LE-63 residual current circuit breaker is composed of DZ47-63high breaking mini circuit breaker and current leakage release. The ELCB is current electronic current leakage circuit breaker, the main parts include zero sequence current transformer, electronic panel, current leakage release and the circuit breaker with protection functions of over load, short circuit.



Technical Parameters:

Rated Voltage(V) Rated Current of Case Inm(A) Poles Neutra
Linel
Rated CurrentIn(A) Rated Short Circuit Breaking Capacity Icu(KA) Rated Current Leakage Breaking Current
(mA))
Rated Current not Breaking Current (mA)
Breaking Capacity Icu(KA) COS
230 50 1 N

6,10,16,

20,25,32,

40,50,63

6 0.7

30,50,

100,300

15,25,

50,150

230 50 2   6 0.7
400 50 3   6 0.7
400 50 3 N 6 0.7
400 50 4   6 0.7
230 50 1 N 4.5 0.8
400 50 2   4.5 0.8
400 50 3   4.5 0.8
400 50 3 N 4.5 0.8
400 50 4   4.5 0.8





Remark: wiring is terminal with clamp, cable dia.:10mm2below available for hard cable

 Circuit-Breaker Failure Protection Air Singi 6ka Circuit Breaker Price Dz47le-63Circuit-Breaker Failure Protection Air Singi 6ka Circuit Breaker Price Dz47le-63Circuit-Breaker Failure Protection Air Singi 6ka Circuit Breaker Price Dz47le-63Circuit-Breaker Failure Protection Air Singi 6ka Circuit Breaker Price Dz47le-63Circuit-Breaker Failure Protection Air Singi 6ka Circuit Breaker Price Dz47le-63



Company Introduction

Who We Are

SINGI established in1980, with annual sales amount more than 90 million USD,
presently we have three production bases located in Liushi town, Yueqing in Wenzhou and Shanghai.

  • In Liushi, mainly terminal block is manufactured ;
  • In Yueqing, mainly low voltage construction electrical products are manufactured,like MCCB,MCB, Air Circuit Breaker, Switch &Socket, Distribution Box, ATS, Auto-reclosing etc. and the components which needed by above products;
  • In Shanghai, mainly Household Telecom Cable Wire are produced.

All production and management are carried strictly according to ISO9001 and products have been certified CE,CB,UL,CUL,ETL,CETL.



Why choose us

  • Professionally specialized in low voltage construction electrical product
  • Chinese famous trademark;
  • Original factory established in 1993;
  • We have our own mold and punching plants, the price ,quality, aftersale and customization etc. can be well controlled;
  • Stable parts supplier of ,ABB,CHNT, Delixi, Gacia etc. famous, national enterprises;
  • Production strictly according to ISO9001;
  • CE,CB,UL,CUL,ETL,CETL certified;
  • Annual sales amount 90million USD;
  • Wide product range: mcb, mccb, ats, auto-reclosing, distribution box ,switch and socket, power strip,metal stampings, terminal box, communication wire;
  • OEM and ODM are welcomed;
  • Good and honest service;
  • Our products are used in Shanghai World Expo in 2009;
  • Timely delivery and good aftersale;
