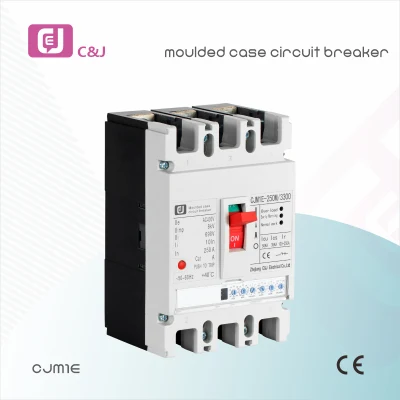

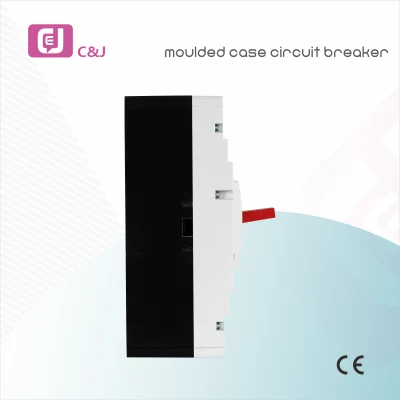

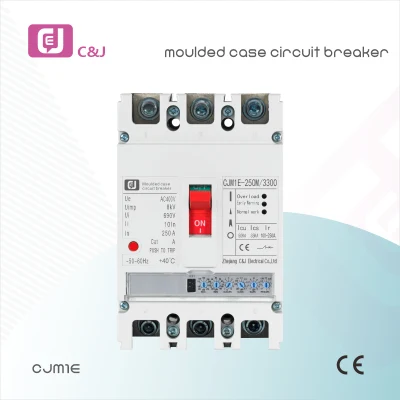

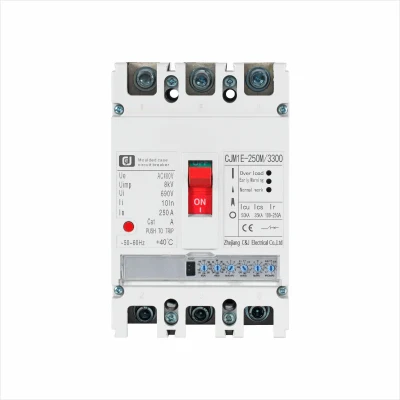

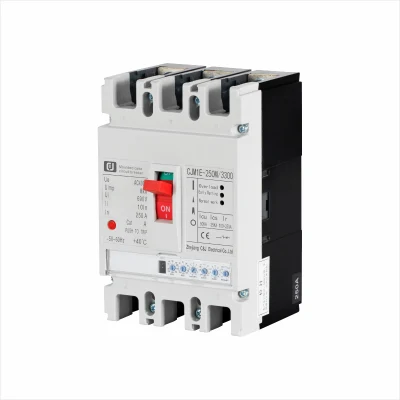

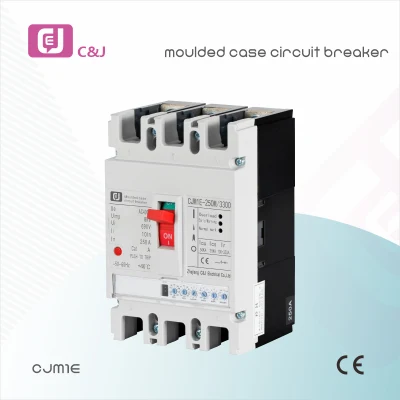

Cjm1e Electrical Moulded Case Circuit Breaker Electronic Adjustable MCCB

Get high-quality Cjm1e Electrical Moulded Case Circuit Breaker Electronic Adjustable MCCB directly from the factory. Shop now for reliable and efficient products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Main Technical Parameter
  • <span style="font-size:14px;"><span style="font-size:14px;"><span style="font-size:14px;"><span style="font-size:14px;"><span style="font-size:14px;"><span cke-mic-navigation-content="" style="border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Outline Installation Size</span></span></span></span></span></span>
  • About Us
  • <span style="font-size:14px;"><span style="font-size:14px;"><span style="font-size:14px;"><span style="font-size:14px;"><span style="font-size:14px;"><span cke-mic-navigation-content="" style="border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">More products</span></span></span></span></span></span>
Overview

Basic Info.

Model NO.
CJM1E-250M/3300
Poles Number
1,2,3,4
Type
Circuit Breaker
Certification
ISO9001-2000, CE, CCC
Dielectric Property
2500,3000V
Rated Operatomg Voltage Ue
230,400V
Rated Current of Frame Size Inm
63,160,200,250L
Rated Insulation Voltage Ui
400,500,690V
Standards
IEC60947-2
Transport Package
Normal Package
Specification
63, 100, 160, 225, 400, 630, 800A
Trademark
GSM
Origin
Wenzhou
HS Code
85362000
Production Capacity
35ka

Product Description




Product Description
Application
1.CJMM1 series moulded case circuit breaker(hereinafter referred to as circuit breaker) is pplicable for AC 50/60HZ power distribution network
circuit with rated insulation voltage of 800V, rated operation voltage of 690V and rated operation current from 10A to 630A, it's used to distribute power and prevent circuit and power supply equipment from damage due to overload, short circuit, under voltage and other faults, it's also used for infrequent start of motor as well as overload, short circuit and under voltage protection

2.This circuit breaker owns advantages of small volume, high breaking capacity, short arcing (or noarcing)etc, it can be equipped with accessories like alarm contact, shunt release, auxiliary contact etc, it's an ideal product for user.

3.The residual current circuit breaker can either be vertically installed (vertical installation) or be horizontally installed (horizontal installation)
The product is in accordance with the standards of IEC60947-2 and Gb140482

Classification
1.By breaking capacity: a standard type(type S) b higher breaking capacity type(type H)
2.By connection mode: a front board connection, b back board connection, c plugin type
3.By operation mode: a direct handle operation, b rotation handle operation,c electrical operation
4.By number of poles: 1P,2P, 3P, 4P
5.By accessory: alarm contact, auxiliary contact, shunt release, under voltage release.


Normal Service Condition
1.The altitude of the installation site shall not exceed 2000m
2.Ambient air temperature
a.The ambient air temperature shall not exceed +40ºC
b.The average value shall not exceed +35ºC with in 24 hours
c.The ambient air temperature shall not be less than-5ºC
3.Atmosphere condition
a.There lative humidity of atmosp here shall not exceed 50% at highest temperature of +40ºC,and it can be higher atalower temperature,when theaver agelowest temperature in the wettest month doesn't exceed 25ºC can be 90%,conden sationon product surfacedue to temperature change must be takenin to account.
4.The pollution level is class 3

Table1
Accessory name Electronic release Compound release
Auxiliary contact,under voltage release,alam contact 287 378
Two auxiliary contact sets,alarm contact 268 368
Shunt release, alarm contact, auxiliary contact 238 348
Under voltage release,alarm contact 248 338
Auxiliary contact alarm contact 228 328
Shunt release alarm contact 218 318
Auxiliary contact under-voltage release 270 370
Two auxiliary contact sets 260 360
Shunt release under-voltage release 250 350
Shunt release auxiliary contact 240 340
Under-voltage release 230 330
Auxiliary contact 220 320
Shunt release 210 310
Alarm contact 208 308
No accessory 200 300
Main Technical Parameter

1.Rated value of circuit breakers

Model Imax(A) Specifications(A) Rated Operation Voltage(V) Rated Insulation Voltage(V) Icu(kA) Ics(kA) Number of Poles (P) Arcing Distance(mm)
CJMM1-63S 63 6,10,16,20
25,32,40,
50,63
400 500 10* 5* 3 ≤50
CJMM1-63H 63 400 500 15* 10* 3,4
CJMM1-100S 100 16,20,25,32
40,50,63,
80,100
690 800 35/15 22/5 3 ≤50
CJMM1-100H 100 400 800 50 35 2,3,4
CJMM1-225S 225 100,125,
160,180,
200,225
690 800 35/15 25/5 3 ≤50
CJMM1-225H 225 400 800 50 35 2,3,4
CJMM1-400S 400 225,250,
315,350,
400
690 800 50/15 35/8 3,4 ≤100
CJMM1-400H 400 400 800 65 35 3
CJMM1-630S 630 400,500,
630
690 800 50/15 35/8 3,4 ≤100
CJMM1-630H 630 400 800 65 45 3
Note: When the test parameters for the 400V, 6A without heating release

2.Inverse time breaking operation characteristic when each pole of overcurrent release for power distribution is powered on at the same time
Item of test Current (I/In) Test time area Initial state
Non-tripping current 1.05In 2h(n>63A),1h(n<63A) Cold state
Tripping current 1.3In 2h(n>63A),1h(n<63A) Proceed immediately after No.1 test

3.Inverse time breaking operation characteristic when each pole of overcurrent release for motor protection is powered on at the same time.
Setting Current Conventional time Initial State Note
1.0In >2h Cold State
1.2In ≤2h Proceeded immediately after the No.1 test
1.5In ≤4min Cold State 10≤In≤225
≤8min Cold State 225≤In≤630
7.2In 4s≤T≤10s Cold State 10≤In≤225
6s≤T≤20s Cold State 225≤In≤630

4.The instantaneous operation characteristic of circuit breaker for power distribution shall be set as 10in+20%, and the one of circuit breaker formotor protection shall be set as12ln±20%
