Basic Info.
Model NO.
YCB9LE-80M
Terminal Connection Type
Cable/Pin-Type Busbar
Rated Breaking Capacity
6000
Insulation Voltage Ui (V)
500
Rated Voltage Ue (V)
230/400
Connection
From Top
Electrical Life (T)
6000
Poles
2,4
Rated Current in (a)
1 2 3 4 6 10 16 20 25 32 40 50 63 80
Trademark
CNC
Origin
Zhejiang, China
Production Capacity
80000 Set/Sets Per Week
Product Description

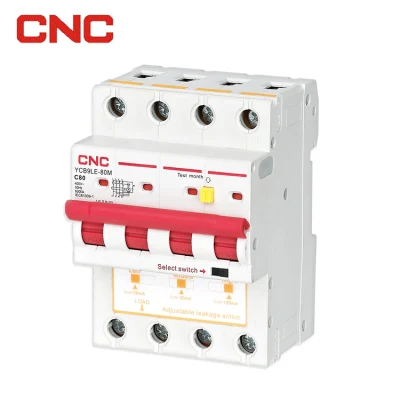

CNC Wholesale 6ka Breaker 6ka 4p ELCB MCB
1.Protection against overload and short-circuit currents
2.Protection against the effects of sinusoidal alternating earth fault currents
3.Protection against indirect contacts and additional protection against direct contacts.
4.Protection against fire hazard caused by insulation faults
5.Used in residential building
6.According to the type of instantaneous release classified as follows : type B(3-5)ln, type C(5-10)ln, type D(10-20)ln
| Type Standard | IEC/EN 61009-1 | ||
| Electrical features | Poles | P | 2, 4 |
| Type(wave form of the earth leakage sensed) | A/AC | ||
| Thermo-magnetic release characteristic | B, C, D | ||
| Rated current In | A | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63, 80 | |
| Rated voltage Ue | V | 230/400 | |
| Rated sensitivity lΔn | A | 0.03, 0.05, 0.1, 0.2 | |
| Rated residual making and breaking capacity lΔm | A | 500(In≤40A) 630(In>40A) | |
| Rated short-circuit capacity lcn | A | 6000 | |
| Break time under lΔn | s | ≤0.1 | |
| Rated frequency | Hz | 50/60 | |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 4000 | |
| Dielectric test voltage at ind.Freq.for 1min | kV | 2 | |
| Insulation voltage Ui | V | 500 | |
| Pollution degree | 3 | ||
| Mechanical features | Electrical life | t | 4000 |
| Mechanical life | t | 10000 | |
| Contact position indicator | Yes | ||
| Connection and Installation | Protection degree | IP20 | |
| Connection capacity | mm² | 1~35 | |
| Circumstance temperature | ºC | -25~+70 | |
| Elevation | m | ≤2000 | |
| Pollution degree | 3 | ||
| Terminal connection type | Cable/Pin-type busbar | ||
| Installation Environment | No obvious vibration and shock | ||
| Installation category | III | ||
| Mounting | On DIN rail EN60715(35mm)by means of fast clip device | ||
| Connection | From top | ||
