Basic Info.
Model NO.

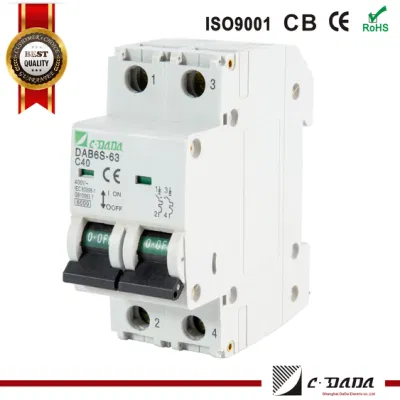

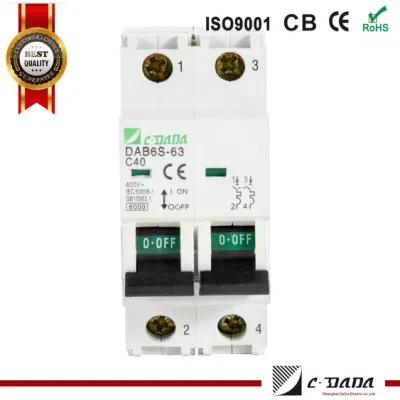

DAB6S-63 6ka
Poles Number
1p,2p.3p,4p
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection
Certification
ISO9001-2000, CE, CB, CCC, Asta,Semko,RoHS
Transport Package
Carton
Specification
1, 2, 3, 4, 5, 6, 10, 16, 25, 32, 40, 50, 63A
Trademark
CDADA, OEM, ODM
Origin
Shanghai
HS Code
85362000
Production Capacity
100000PCS/Month
Product Description
Introduction
DAB6-63 are intended for protecting distribution and group systems having different loads:
- electric appliances, lighting - V characteristic switches;
- drives with moderate starting currents (compressor, fan group) - C characteristic switches;
- drives with high starting currents (hoisting mechanisms, pumps) - D characteristic switches;
Miniature circuit breaker DAB6-63 are recommended for use in electrical distribution panels of residential and public buildings.
Advantages
Technical Features
DAB6-63 are intended for protecting distribution and group systems having different loads:
- electric appliances, lighting - V characteristic switches;
- drives with moderate starting currents (compressor, fan group) - C characteristic switches;
- drives with high starting currents (hoisting mechanisms, pumps) - D characteristic switches;
Miniature circuit breaker DAB6-63 are recommended for use in electrical distribution panels of residential and public buildings.
Advantages
- Two types of short circuit protection.
- Wide range of operating temperatures from -40 to +50° С.
- Updated wider engagement lever with improved contact area.
- Notches on terminal clamps provide for lowering thermal losses and boosting the mechanical stability of connection.
Technical Features
| MCB DAB6-63 | |||||||
| For protection of general power distribution (IEC/EN 60898-1) | |||||||
| Poles | 1P | 2P | 3P | 4P | |||
| Electrical performance | |||||||
| Functions | short circuit protection,overload protection,isolationg,control | ||||||
| Rated frequency f Hz | 50-60Hz | ||||||
| Rated working voltage Ue V AC | 230/400 | 400 | |||||
| Rated current In A | 6,10,16,20,25,32,40,50,63 | ||||||
| Rated insulated voltage Ui V | 500 | ||||||
| Impulse withstand voltage Uimp kV | 4 | ||||||
| Instantaneous tripping type | DAB6-63N | B/C/D | |||||
| DAB6-63H | B/C/D | ||||||
| Rated short circuit Icn(kA) | DAB6-63N | 4.5 | |||||
| DAB6-63H | 6 | ||||||
| Release type | Thermal magnetic type | ||||||
| Service life(O~C) | Mechanical | Actual value | 20000 | ||||
| Standard value | 4000 | ||||||
| Electrical | Actual value | 8000 | |||||
| Standard value | 4000 | ||||||
| Connection and installation | |||||||
| Protection degree | IP20 | ||||||
| Wire mm² | 1~35 | ||||||
| Working temperature | -5 ~+40ºC | ||||||
| Resistance to humidity and heat | Class 2 | ||||||
| Altitude above sea | ≤2000 | ||||||
| Relative humidity | +20ºC , ≤90% ;+40ºC , ≤50% | ||||||
| Pollution degree | 2 | ||||||
| Installation environment | Avoid obvious shock and vibration | ||||||
| Installation class | Class II, Class III | ||||||
| Mounting | DIN35 rail | ||||||
| Combination with accessories | |||||||
| Auxiliary contact | Yes | ||||||
| Alarm contact | Yes | ||||||
| Shunt release | Yes | ||||||
| Undervoltage release | Yes | ||||||
| Auxiliary contact+Alarm contact | Yes | ||||||
| Dimensions(mm) (WxHxL) | a | 17.5 | 35 | 52.5 | 70 | ||
| b | 80.2 | 80.2 | 80.2 | 80.2 | |||
| c | 76.5 | 76.5 | 76.5 | 76.5 | |||
