Basic Info.
Model NO.
DB1-63Z
Structure
MCB
Type
Circuit Breaker
Function
Overcurrent Protection
Certification
ISO9001-2000, CE, CB
Model
dB1-63z
Poles
1p, 2p, 3p, 4p
Voltage
DC 12V - 1000V
Current
1A ~ 63A
Transport Package
Cartons
Trademark
NewTrend or OEM
Origin
China
HS Code
85362000
Production Capacity
50000 Pieces Per Day
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
0.100kg
Product Description

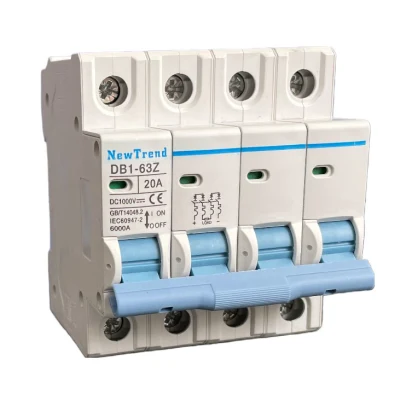

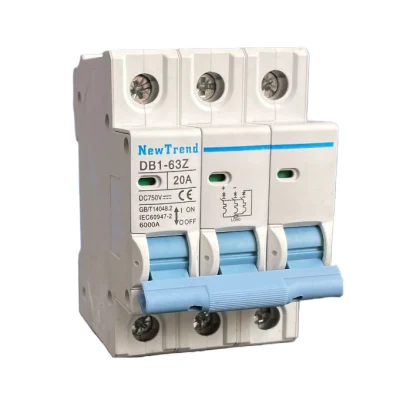

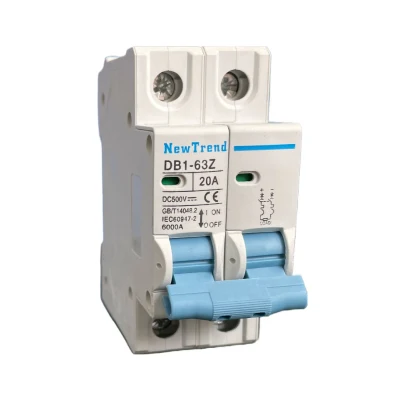

DB1-63Z DC MCB 1A 2A 3A 4A 6A 10A 16A 20A 25A 32A 40A 50A 63A 1P 2P 3P 4P SP DP TP 12V 24V 36V 48V 60V 250V 500V 1000V 1500V Solar PV DC Mini Circuit Breaker
| Model | DB1-63Z |
| Poles | 1P, 2P, 3P, 4P |
| Tripping characteristics | Type C (7In ~ 15In) |
| Rated current (A) | 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A |
| Rated voltage (V) | 1P(250VDC/500VDC), 2P(500VDC/1000VDC), 3P(750VDC), 4P(1000VDC) |
| Rated breaking capacity (kA) | 6KA |
| Standard | IEC 60898-2 |
| Model | DB1-63Z |
| Poles | 1P, 2P, 3P, 4P |
| Tripping characteristics | Type C (7In ~ 15In) |
| Rated current (A) | 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A |
| Rated voltage (V) | 1P(250VDC/500VDC), 2P(500VDC/1000VDC), 3P(750VDC), 4P(1000VDC) |
| Rated breaking capacity (kA) | 6KA |
| Standard | IEC 60898-2 |
