Product Description

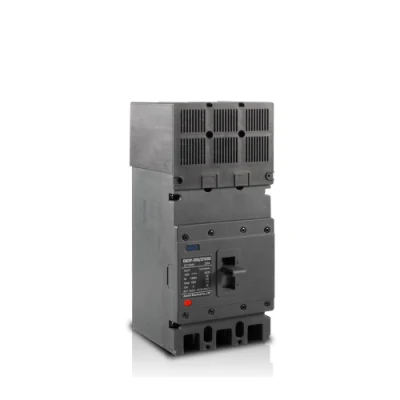

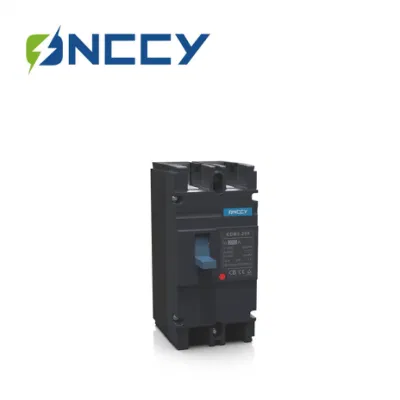

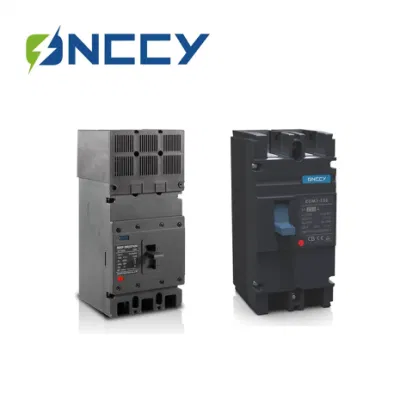

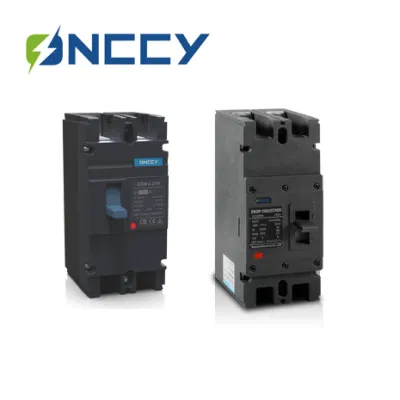

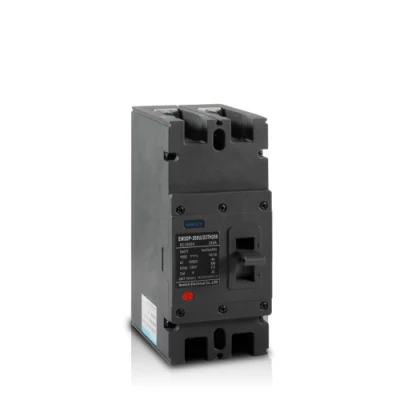

Factory Direct PV DC 500/1000/1500V 125/250/320/400A DC 2P Molded Case Circuit Breaker
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer. We have 30,000 square meters of self-owned plant.
Q: Do you have any certificates?
A: Yes,we have UL, TUV, CB, SAA, CCC, CE and other certifications.
Q: How do we make a quick response to customer , 5 inquiry ?
A: Our professional team will reply you online or by email,Skype, whatsApp and so on.
Q: Do you have any exporting experience?Which countries did you export to before?
A: We have lots of exporting experience and customers in many countries,such as America, Japan,Australia,UAE,Canada,Vietnam,Turkey,Thailand,Russia,UK,etc.
Q:Can you supply samples for checking ?
A: Yes, we can supply samples, pls contact for detailed required.
Q:How long is your delivery time?
A: Generally it is within 3days for small qty. Or it is around 15-20 days to a general order.
Q: What is the standard of package of your goods?
A: Export standard package or special package according to customer requirement.
Q:How about inspection?
A: We have the whole inspection system from raw material to end products include transient test, delay test,mechanical life test and so on.Q:What is the service offered by company?
A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale.
Product Profile
EDM3/EDM3DP series of DC plastic case circuit breakers for photovoltaics-parameters,the battery systems and energy storage systems,with over load protection and short.
Product Benefits
- High Breaking Capacity, relaiable insulating
- Over load protection and short-circuit protection
- Frequency operating and isolating
- Rated voltage 500/1000/1500VDC
- Max Rated Current 400A
Technical Data
| Table | ||||||
| IEC60947-2 GB14048.2 | ||||||
| Electrical performance | ||||||
| Frame rating rated current Inm (A) | 320 | 400 | ||||
| Rated currentIn (A) | 63,80,100,125, 140,160,180,200, 225,250,280,315,320 | 225,250,315,350,400 | ||||
| Number of poles | 2 | 3 | 2 | |||
| Rated Operating Voltage Ue (V) DC | DC500 | DC1000 | DC1500 | DC250/500 | DC750/1000 | DC1250/1500 |
| Rated insulation voltage Ui (V) | DC1250 | DC1500 | DC1500 | |||
| Rated impact withstand voltage Uimp (kV) | 8 | 12 | 12 | |||
| Set display short-circuit breaking Icu (kA) | 50 | 20 | 20 | 70 | 40 | 20 |
| Connection method | Up in down out,Down in up out(2P,320/3P) Down in down out,Up in up out | |||||
| Use category | A | |||||
| Mechanical life (total cycles) | 2000 | 10000 | ||||
| Electrical life (total cycles) | 3000 | 2000 | 1500 | 1000 | 1000 | 700 |
| Total breaking time (ms) | 20 | |||||
| Whether it has isolation characteristics | Yes | |||||
| Allowable ambient temperature | -35~+70oC | |||||
| Protection class | IP20 | |||||
| Quality Certification | CCC . CE . CB . TUV | |||||
| Accessories available | Auxiliary. Alarm. Split excitation. Manual operation. Electric operation | |||||
| Dimensions | 180×76×126(2P) 180×107×126(3P) | 250×124×165(2P) | ||||
