DC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail Mount

DC Miniature Circuit Breaker 2p 500V MCB Safety Breaker for Solar PV System. Thermal Magnetic Trip, DIN Rail Mount. Factory direct, quality assured. Solar panels grid system. SEO description: Get reliable DC Miniature Circuit Breaker for your Solar PV System. Our factory direct MCB Safety Breaker is designed for Solar Panels Grid System and features Thermal Magnetic Trip, DIN Rail Mount. Quality assured.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Certifications
  • Our Advantages
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
MDB1Z-63
Arc-extinguishing Medium
Oil-immersed Type
Installation
Fixed
Structure
ACB
Poles Number
2
Type
Circuit Breaker
Function
Circuit-Breaker Failure Protection, Overcurrent Protection
Certification
ISO9001-2000, CE, CB
Frame Degree Rated Current
63A
Pole
1p, 2p, 3p, 4p
Rated Operating Voltage (VDC)
12V, 24V, 48V, 300V, 600V, 900V, 1200V
Rated Current in (a)
10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated Insulation Voltage Ui (VDC)
1250VDC
Transport Package
Carton
Trademark
MOREDAY
Origin
China
HS Code
8536200000
Production Capacity
500000PCS/Month

Packaging & Delivery

Package Size
10.00cm * 8.00cm * 6.00cm
Package Gross Weight
0.600kg

Product Description

Product Description

The mdb1z-63 New Black Series L7 DC MCB is a reliable and high-performance circuit breaker designed for electrical protection. With its sleek black design and advanced features, it offers an excellent solution for both residential and commercial applications.

One of the standout features of the mdb1z-63 is its compact size. Despite its small footprint, it delivers powerful performance, ensuring effective protection against overcurrent and short circuits. This makes it an ideal choice for installations where space is limited. Whether you're upgrading an existing electrical system or setting up a new one, this circuit breaker offers the convenience and efficiency you need.

In summary, the mdb1z-63 New Black Series L7 DC MCB is a top-notch circuit breaker that offers outstanding performance and reliability. Its compact size, durability, and user-friendly design make it a valuable addition to any electrical system. Whether you're a homeowner or a professional electrician, this circuit breaker provides the necessary protection while enhancing the aesthetics of your setup. Invest in the mdb1z-63 today and experience peace of mind knowing your electrical system is in safe hands.
DC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail Mount

Product Parameters
MDB1Z Series Circuit Breaker
MDB1Z-63PV
Frame Degree Rated Current
63A
Pole
1P, 2P, 3P, 4P
Rated Operating Voltage (VDC)
12V, 24V, 48V, 300V, 600V, 900V, 1200V
Rated Current In (A)
10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated Insulation Voltage Ui (VDC)
1250VDC
Rated Impact Voltage Uimp (kV)
6
Ultimate Breaking Capacity Icu (kA)
6
Run Breaking Capacity Ics (%Icu)
100
Curve Type
C
Trip Type
Thermal- magnetic
Mechanical
Actual average value
20000 times
Standard value
8500 times
Electric
Actual average value
2500 times
Standard value
1500 times
Wiring Capacity (mm²)
In≤32A,1.5~6 mm², In ≥40A,10~16mm²
Ambient Temperature
-20ºC~+70ºC
Altitude
≤2000 m
Relative Humidity
≤9 .5%
Pollution Level
2, 3
Installation Environment
No obvious shock and vibration
Installation Category
Class II, Class III
Installation
Standard din rail

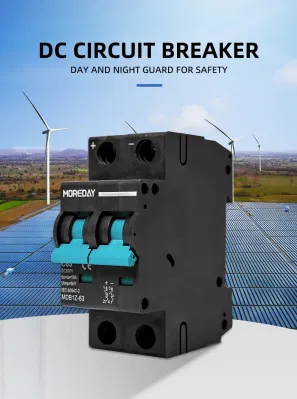

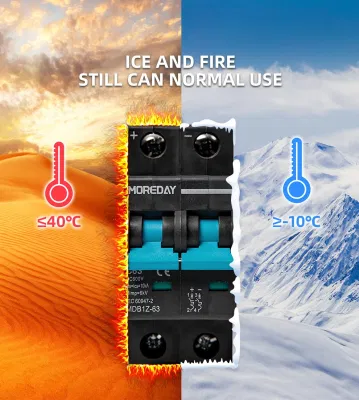

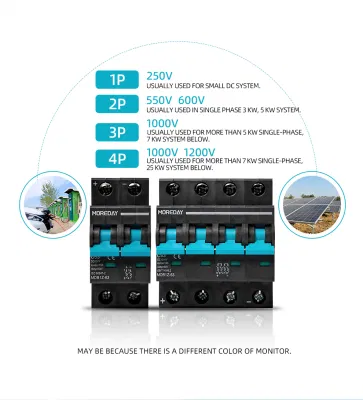

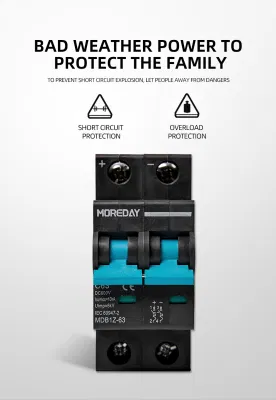

Detailed Photos

DC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail Mount

Certifications

DC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail Mount

Our Advantages

DC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail Mount

Company Profile

DC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail MountDC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail Mount

Packaging & Shipping

DC Miniature Circuit Breaker, 2p 500V MCB Safety Breaker, for Solar PV System Solar Panels Grid System, Thermal Magnetic Trip, DIN Rail Mount

FAQ

1. Are you trading company or manufacturer ?
 We are solar system manufacturer,Our cumulative installed capacity reached 5GW+.

2.Can you supply samples for checking ?
 Yes, we can supply free samples for all  client.

3.How long is your delivery time?
 A1)For Sample: 1-2Days ;
 A2)For small Orders: 3-5Days;
 A3)For mass Orders:7-10Days;
 Anyway,  It depend on order qty and payment time.

4.Do you accept OEM business?
We accept OEM with your authorization.

5.How is the after-sale service?
We offer spare parts accordingly and English-speaking engineer offer online service.

6. what kind of certificate you have ?
We have CE, CB,TÜV,SAA etc.

7.What is the service offered by company?
We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale.

If you have another questions, pls feel free to contact us.
