Basic Info.
Model NO.
DZ47-125
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
MCB
Poles Number
1
Type
Circuit Breaker
Function
Conventional Circuit Breaker
Certification
ISO9001-2000, CE, CB, CCC
Voltage
1p 2p: 240/415V; 3p 4p: 415V
Frequency(Hz)
50/60
Rated Short-Circuit Capacity(Icn)
6ka
Ambient Temperature
-5ºC~+40ºC
Altitude
Below 2000 Meter
Relative Humidity
Less Than 50% Under +40ºC
Electrical Life
No Less Than 6000 Operations
Mechanical Life
No Less Than 20000 Operations
Transport Package
Standard Export Packing
Trademark
ZOII
Origin
China
HS Code
8536200000
Production Capacity
20000PCS/Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description
General Introduction
DZ47-63 series miniature circuit breaker is used in lighting distribution system or motor distribution system.
The product is neoteric in structure, light in weight, reliable and excellent in performance.
The frame and parts adopt plastic of high fire-resistant and shockproof. The products comply with IEC60898.
Specification

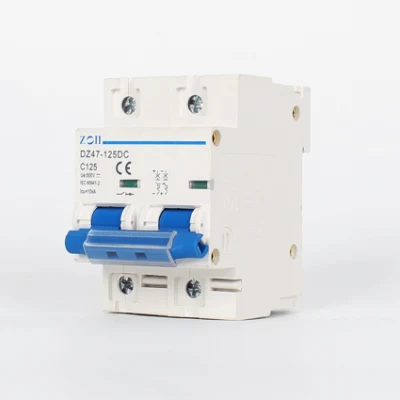

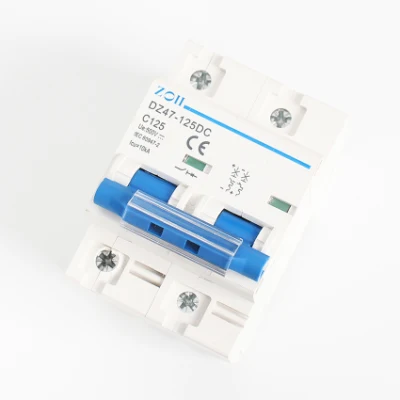

Images
Feature
1.Experienced: our team has 13 years of experience
2.Factory: Mature technics, strict attitude and perfect quality system
3.Before leaving the factory sampling of products for lightning test, strict quality control
4.Quality Assurance: Don't let the quality problems do damage to our brand
5.Strict quality control, full-inspection. Professionally dedicated to SPD production
DZ47-63 series miniature circuit breaker is used in lighting distribution system or motor distribution system.
The product is neoteric in structure, light in weight, reliable and excellent in performance.
The frame and parts adopt plastic of high fire-resistant and shockproof. The products comply with IEC60898.
Specification
| Design according to | IEC/EN 60898-1 |
| Characteristic | B, C, D |
| Rated voltage | AC 230 / 400V |
| DC 48V Single-pole, 2 pole in series: 96VDC | |
| Rated frequency | 50/60Hz |
| Rated current | 6,10,16,20,25,32,40,50,63A |
| Rated current interrupting rating | B,C,D curve----6000A |
| Number of poles | 1,1P+N, 2, 3, 3P+N, 4 |
| Endurance | ≥ 20,000 operations |
| Power inlet mode | Upcoming |
| Allowable ambient temperature range | -40ºC~75ºC |
| Per pole width dimension | 13mm |
| Installation method | IEC standard rail 35mm |
| Enclosure protection grade | IP20 |
| Dual function terminals on both sides | Open type / lift type |
| Terminal protection | Finger and hand safe |
| Terminal wiring capacity | 1-25 mm² |
| Terminal screw tightening torque | 2-2.5 Nm |
| Busbar thickness | 0.8-2 mm |
| Installation angle | function is independent of position |

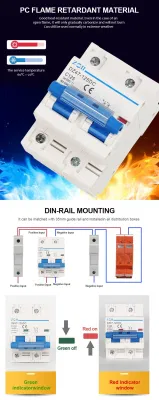

Images
Feature
The handle being sealable or equipped with padlock bracket avoids dangerous operation changes (ON / OFF)
Clear indication of the contact position
Energy limiting class: 3
The emission of ionized gases is limited to the severest restrictions: 45 mm grid distance
Suitable for household or similar applications in accordance with:
IEC 60898-1, tripping characteristics B, C and D.
