Electrical Air Miniature Circuit Breakers Switches AC MCB 1p 2p 3p 4p 230V 400V
Browse our high-quality Electrical Air Miniature Circuit Breakers Switches AC MCB 1p 2p 3p 4p 230V 400V. We are a factory specializing in reliable electrical products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
DZ47-63
Type
Circuit Breaker
Certification
CE
Rated Current
6A 10A 16A 20A 25A 32A 40A 50A 63A
Rated Voltage
230/400VAC
Standard
IEC60898
Capacity
6ka
Type MCB
Mini
Frequency
50/60Hz
Transport Package
Conventional Export Packaging
Trademark
WZAZURE /OEM
Origin
Zhejiang, China
HS Code
8536200000
Production Capacity
50000 Piece/Pieces Per Week

Product Description

  Mcb Breakers  Circuit DZ47-63 High Quality Mcb Price Miniature Circuit Breaker

      DZ47-63 high breaking miniature circuit breaker has the features of structure advanced, performance reliable, breaking capacity high, appearance elegant and its shell and parts are made of material with impact resistance, strong flame-retardant feature.It is suitable to power system of 50or 60 frequency ,Ue 400V and below, Ui 63A and below.It is mainly applied at office building, residence, for lighting , power distribution and overload and short circuit protection of equipment. Normally, it also can be used as the not frequent transfer of power system. It conforms to the standards IEC60898and GB10963.1.


Remark:

1.mechanical life:20,000 times(off-on).

2.heat resistance: category 2 (temperature 55°C,relative humidity 95%).

3.wiring is terminal with clamp, cable dia.:25mm2.



Current Release Character Diagram:

Test current

(A)

Rated current

(A)

 Requested time Result Start station Remark
1.13In all t>=1h Don't trip Cool
1.45In All T<1h trip heat Current ascends the requested value stably in 5s
2.55In In<=32A 1s<t<60s trip Cool Auxiliary switch closed, power is on
2.55In In>32A 1s<t<120s trip Cool Auxiliary switch closed, power is on
5In(Cmode) All t>=0.1s Don't trip Cool Auxiliary switch closed, power is on
10In(Cmode) All T<0.1s  trip Cool Auxiliary switch closed, power is on
10(Dmode) All t>=0.1s  Don't trip Cool Auxiliary switch closed, power is on
14In(Dmode) All T<0.1s trip Cool Auxiliary switch closed, power is on

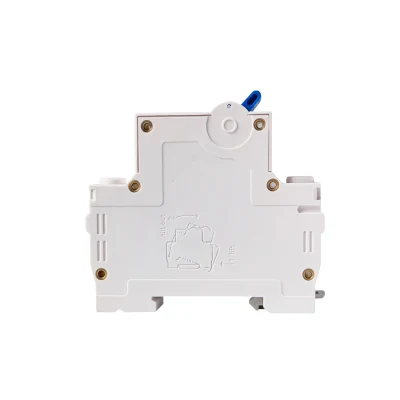

Product Display
Electrical Air Miniature Circuit Breakers Switches AC MCB 1p 2p 3p 4p 230V 400V Electrical Air Miniature Circuit Breakers Switches AC MCB 1p 2p 3p 4p 230V 400V Electrical Air Miniature Circuit Breakers Switches AC MCB 1p 2p 3p 4p 230V 400V Electrical Air Miniature Circuit Breakers Switches AC MCB 1p 2p 3p 4p 230V 400V



FAQ :



Q1: Can I print my logo on the products?
A: Yes, OEM available. ( MOQ : 200 Pieces )



Q2: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.



Q3: How about delivery time of the order?
A: 5-7 working  days after getting deposit. ( We have stock )


Any requirements or question,welcome to "Send" us an e-mail Now!!!
