Factory Wholesale Type AC Dp 16A 25A 32A 40A 63A 30mA RCD ELCB Single Phase

Factory wholesale type AC DP 16A 25A 32A 40A 63A 30mA RCD ELCB single phase. We are a direct manufacturer offering high-quality electrical products at competitive prices.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
VML01
Type
Circuit Breaker
Function
RCCB
Certification
ISO9001-2000, CE, CB, CCC
Inc
6000A/10000A
Rated Voltage Ue
2p: 240V/ 4p: 415V
Rated Current in
16A 25A 32A 40A 63A 80A 100A
Rated Sensitivity
10mA(2p/4p 16A,25A.32A/40A), 30mA, 100mA, 300mA
Product Name
ELCB Single Phase
Warranty
5 Years
Transport Package
Box
Trademark
SRK/OEM
Origin
Zhejiang, China
HS Code
8536200
Production Capacity
2000000PCS/Month

Product Description

factory wholesale Type ac DP 25a 32A 40a 63A 30ma rcd elcb single phase

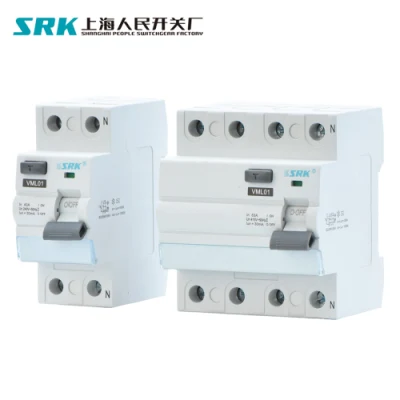

Factory Wholesale Type AC Dp 16A 25A 32A 40A 63A 30mA RCD ELCB Single Phase
China top500 enterprise factory price 30MA 100MA 300MA 2 POLES 4 POLES DP FP rccb 63a

Factory Wholesale Type AC Dp 16A 25A 32A 40A 63A 30mA RCD ELCB Single Phase Factory Wholesale Type AC Dp 16A 25A 32A 40A 63A 30mA RCD ELCB Single Phase Factory Wholesale Type AC Dp 16A 25A 32A 40A 63A 30mA RCD ELCB Single Phase Factory Wholesale Type AC Dp 16A 25A 32A 40A 63A 30mA RCD ELCB Single Phase
Technical parameters
  Standard IEC/EN 61008-1         AS/NZS61008.1
Electrical features  Model No. VML01
Poles 2P, 4P
Rated current In 16A, 25A, 32A, 40A, 63A, 80A, 100A
Rated Sensitivity In 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA
Rated voltage Ue 2P: 240V   4P: 415V
Insulation voltage Ui 415V
Rated frequency 50/60 Hz
Rated residual making and breaking capacity Im  1500A
Short-circuit current Inc=Ic 6000A, 10000A
Type (wave form of the earth leakage sensed) AC, A, ASi, S
break time under In 0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type)
Rated impulse withstand voltage(1.2/50) Uimp 4kV
Dielectric test voltage at ind. Freq. for 1 min 2.5
Pollution degree 2
Mechanical features Electrical life 2000
Mechanical life 2000
Fault current indicator Yes
Terminal protection degree IP20
Ambient temperature (with
daily average35ºC)
-25ºC to 50ºC
Storage temperate -30ºC to 70ºC
Installation Terminal connection type Cable/Pin-type busbar
Terminal size top/bottom for cable 25-35 mm²
18-3/18-2 AWG
Terminal size top/bottom for busbar 10/16 mm²
18-8/18-5 AWG
Tightening torque 2.5 N·m
22 In-Ibs.
Mounting On DIN rail EN 60715 (35mm) by means of fast clip device
Connection From top and bottom
Shanghai People switchgear factory, established in 1983,  is a large-scale manufacturing enterprise integrating R&D, production, sales and service of high and low voltage electrical appliances, instruments, power transmission and distribution equipment, high voltage electrical components, building appliances. Our brand is known for quality and innovation, gained TOP 500 Private-enterprises & TOP 500 machinery in China. Our company has an intelligent manufacturing base of 30000 square meter, has passed ISO9001 Quality Management System & ISO4001 Environmental Management System , all of the products have obtained CCC certification and test report of authoritative test institution. The Group has been appointed as the vice-chairman unit and Advanced Enterprise by Zhejiang Province Circuit-breaker Association. We are sincerely willing to cooperate with enterprises from all over the world.factory wholesale Type ac DP 25a 32A 40a 63A 30ma rcd elcb single phase
Factory Wholesale Type AC Dp 16A 25A 32A 40A 63A 30mA RCD ELCB Single Phase
Certificate
Factory Wholesale Type AC Dp 16A 25A 32A 40A 63A 30mA RCD ELCB Single Phase
FAQ

1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.

2. Q: I need your price list of all your products, do you have a price list

A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon! Five year guarantee type A type AC dp fp 2p 4p 25A 32A 40A 63A 80A 100A 30MA 100MA 300MA rccb switch

3. Q: I can't find the product on your catalogue, can you make this product for me?

A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it, we can also design and make a new mould to produce it.For your reference,making a ordinary mold will take about 35-45 days."

4. Q : Can you make customized products and customized packing?

A: Yes.We made a lot of customized products for our customer before. About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.

5. Q: Can you provide samples ? Are the samples free ?

A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.

But you have to pay for the shipping cos.If you need many items, or need more qty for each item, we will charge for the samples."

6. Q: What kind of payment do you accept ? Can I pay RMB ?

A: We accept T/T, Western Union . Please be sure that we can receive the  same amount of the Invoice. And you can pay money In RMB. No problem."5 year guarantee 2 pole 4 pole 25a 32a 40a 63a 80a 100a 6ka 10ka type A TYPE AC rccb elcb 40 amp

7. Q : What about your delivery time?

A: We have a lot of products in stock.We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you."

8. Q : How to ship my order ? Is it safe?

A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT,EMS.That's a Door to Door service.

For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery."

9. Q: Do youu have a guarantee of your product quality?

A: We have a guarantee of 5 year.

10. Q: Can I become an Agent / Dealer of SRK products?

A: Welcome! But please let me know your Country/Area fisrt,We will have a check and then talk about this.If you want any other kind of cooperation,do not hesitate to contact us."factory wholesale Type ac DP 25a 32A 40a 63A 30ma rcd elcb single phase
