Fishskin Peanut Coated Making Production Line

Looking for a reliable Fishskin Peanut Coated Making Production Line factory? We offer top-quality machines for efficient and seamless production.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Packaging & Shipping
  • Company Profile
Overview

Basic Info.

Voltage
380V
Power
44kw
Customized
Customized
Capacity
100kg/H
Application
Nut
Machine Name
Drum Type Roasting Machine
Transport Package
Wooden Box
Specification
3000*2200*1700mm
Production Capacity
100sets/Month

Product Description

fishskin peanut coated making production line from lisa
Product Description

Fishskin Peanut Coated Making Production Line

Introduction:
Fish skin peanuts, cocoa bean production line is a kind of mass-rich peanuts, which are mainly rich in nutrients, and wrapped in blended powder and seasonings. The technology is mature, the processing equipment is mechanized and easy to operate.
the full production line mainly include: roasting machine, peanut peeling machine, coating machine, vibration baking oven, seasoning machine, cooling machine, packing machine.

Working processing:
Roasting Machine: It is mainly used for peanut, cashew nuts, Chinese chestnut, walnut, almond, swallow beans, beans, melon seeds and other granular materials' baking or drying. Gas or electric heating can be customized.
Peanut peeling machine: This machine adopts the method of rolling and peeling, which has the advantages of stable performance, long service life, good peeling effect, high productivity, low half-grain rate and good quality. It is suitable for processing all kinds of peeled peanuts, almonds and so on.

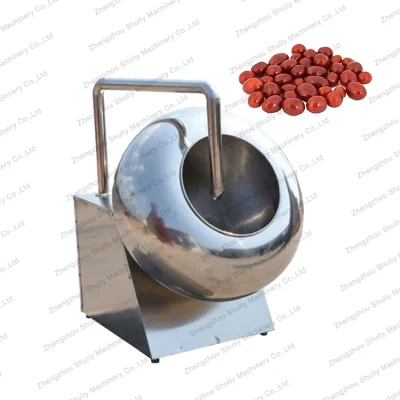

Coating Machine: Put the roasted peanut into it and peanut will be combined with flour(or other addition) uniformly.

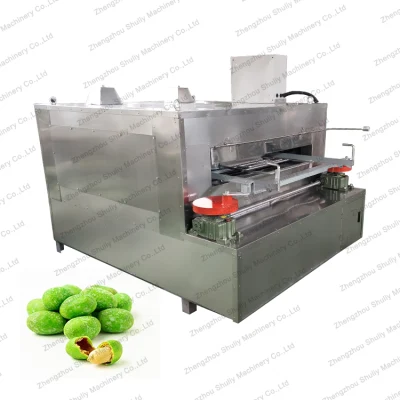

Swing roasting machine: Plane rotary mixing style, using stainless steel. Peanut can get uniform heat, high capacity, low broken rate, pollution-free.

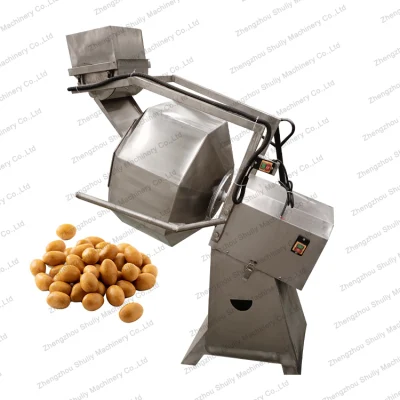

Seasoning machine: Barrel body is octagon, which can make peanut with the seasoning fully mix evenly in short time, sent out the peanut by tilting itself.

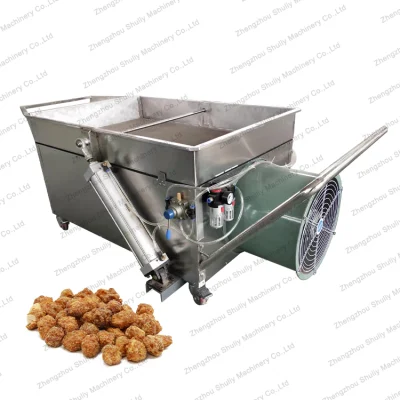

Cooling machine: It is combined with variable speed drive device, cooling box, cooling fan. Centrifugal cooling fan, electromagnetic speed, high output, no damage, no pollution, good effect.
Packing machine:This is used for packing goods;

Fishskin Peanut Coated Making Production Line

Product Parameters
Name Parameter
Roaster Capacity: about 50kg/h
Power:1.1kw

Electric heating: 16kw
Voltage:380V 50Hz
Size: 1850*1200*1600mm
Dry peeling machine Completion rate:96%
Peanut breaking rate :6%
Capacity:200-250kg/h
Size: 1100*400*1000mm
Coating pan Diameter: 1000mm
Capacity: 30-45kg/batch
Coating time: 1-2hour/ batch
Power: 1.5kw

Size: 1000*1000*1600mm
Weight: 180kg
Swing roasting machine

Model: TZCR-100
Voltage: 380v/50hz
Capacity: 80-100kg/h
Heating power: 25kw
Swing Power: 0.75kw
Inner frame size: 1200*1200*150mm
Size: 2.2*2*1.5m   Working temperature:180-220ºC
Speed: 40-60times/min
Remarks: electric heating;
Cooling box Size: 1.3 * 0.6 * 0.6 M
Fan power: 1.1kw
Voltage: 380v 50hz
Seasoning machine

Model: SLS800
Capacity :300kg/h
Power :1.1kw
Size :1000*800*1300mm
Packing machine Model: SL-320
Bag style: back seal
Packing speed: 32-72bag/min or 50-100 bag/min
Bag length: 30-180mm
Bag width: 25-145mm (need replace the former)
Filling range: 22-220ml
Power: 1.8kw
Size: 650*1050*1950mm
Weight: 250kg
Detailed Photos
Fishskin Peanut Coated Making Production Line Fishskin Peanut Coated Making Production Line Fishskin Peanut Coated Making Production Line Fishskin Peanut Coated Making Production Line



Packaging & Shipping

Fishskin Peanut Coated Making Production Line

Company Profile

Zhengzhou Shuly Machinery Co. Ltd in Zhengzhou is a large scale industrial group mainly
specialized in the food processing machines, Nut Processing Machinery

covers Fryer Machinery,  Fruits and vegetables processing Machine, Paste Processing Machinery, Meat Processing Machinery, With years of manufacturing and sales experience in the machinery industry, let

customer satisfaction is our ultimate aim, we got good fame for providing high-quality machines and best service concept - quality first, service foremost.
