Basic Info.
Model NO.
GYM9H-C 6-25A 1P
Arc-extinguishing Medium
Air
Installation
Insert
Structure
Mechanical Interlocking
Poles Number
/
Type
Mechanical Interlocking
Function
Mechanical Interlocking
Certification
/
MOQ
50
Transport Package
Standard
Specification
GYM9H-C 6-25A
Trademark
GEYA
Origin
Zhe
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description

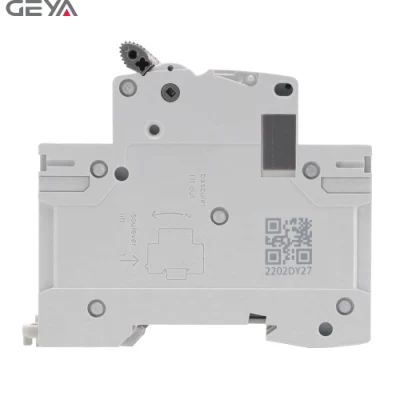

··········This link price is only for GYM9H-C 6-25A 1P··········
Feature:
1. Manually switching between commonly used and backup power sources, with simple structure, durability, and compact size;
2. The commonly used power circuit breaker, under the action of interlocking conversion accessories, automatically and quickly disconnects to ensure that two lines do not conduct simultaneously, and safely switch power at any time, playing a role in protecting the normal operation of power lines, electrical equipment, or other electromechanical equipment. Regardless of priority, both circuit breakers can achieve the above operations.
| Rated current (In) | 6,10,16,20,25,32,40,50,63 |
| Rated voltage (Ue) | 240/415V |
| Working frequency | 50/60Hz |
| Tripping curve | B,C,D |
| Breaking capacity | 10kA |
| Mechanical life | 20000times |
| Rated insulation voltage (Ui) | 500V |
| Rated impulse withstand voltage (Uinp) | 6kV |
