Basic Info.
Model NO.
GYL8 4P 50-63A 30mA AC
Poles Number
4
Type
Circuit Breaker
Function
RCCB
Certification
CE
in
63A
Transport Package
Standard Box
Specification
30ma
Trademark
GEYA
Origin
Zhe
Product Description
············This link price is only for GYL8 4P 50-63A 30mA AC············

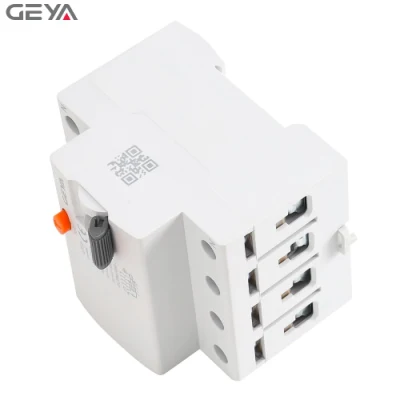

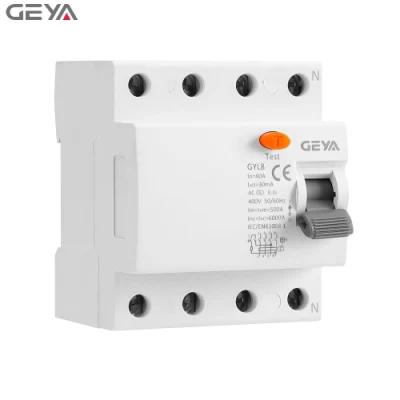

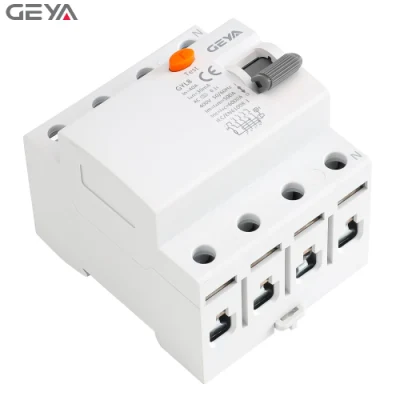

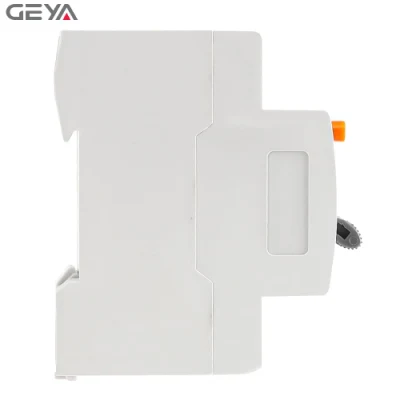

GYL8 residual current circuit breaker (without overcurrent protection) is suitable for AC 50Hz rated voltage 240V for two poles, 415V for four poles, and rated current up to 63A. It can quickly cut off the fault power in very short time,
To protect the safety of people and electrical equipment, it can also be used for infrequent switching of lines.
Compliant with: IEC61008-1, GB16916.1, CE, CB marked.
| Electrical features | |
| Residual current protection type | Electromagnetic/Electronic |
| Residual current working type | AC,A,A-SI |
| Rated current | 25,40,63A |
| Poles | 1P+N, 3P+N |
| Rated voltage Ue | 1P+N:240V~ 3P+N:415V~ |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated sensitivity I△n | 10,30,100,300mA |
| Rated residual making and breaking capacity I△m | 500A(below 63A) 10In(63A and above) |
| Short-circuit current Inc= I△c | 6000A |
| Break time underIan | ≤0.1S |
| Rated impulse withstand voltage(1.2/50)Uimp | 4000V |
| Dielectric test voltage at and ind.Freq.for 1min | 2.5kV |
| Electrical life and Mechanical life | 4000 |
| Pollution degree | 2 |
| Installation | |
| Fault current indicator | NO |
| Protection Class | IP20 |
| Ambient temperature(with daily average≤35ºC) | -25ºC+40ºC |
| Storage temperature | -25ºC+70ºC |
| Terminal connection type | Cable/U-type busbar/Pin -type busbar |
| Wiring size(Cord/Hoop Terminals) | 25mm² |
| Tightening torque | 3.0N*m 22 |

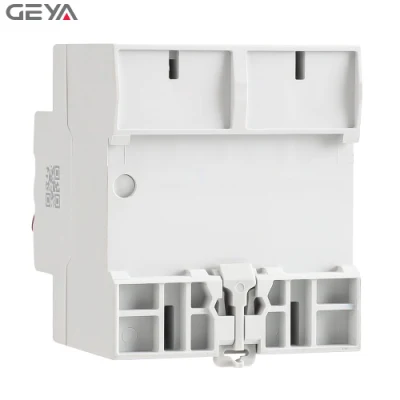

| Mounting | On DIN rail FN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |
