Basic Info.
Model NO.
GYM9 6KA 1P 6-20A
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
MCB
Poles Number
1
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection
Certification
CE, CCC
Rated Voltage
230V/400V
Transport Package
Standard Box
Specification
6-20A
Trademark
GEYA
Origin
Zhe
Packaging & Delivery
Package Size
3.00cm * 10.00cm * 13.00cm
Package Gross Weight
0.200kg
Product Description

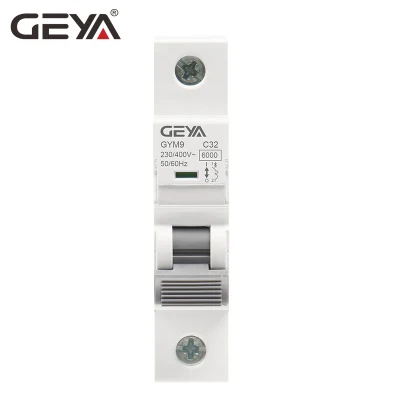

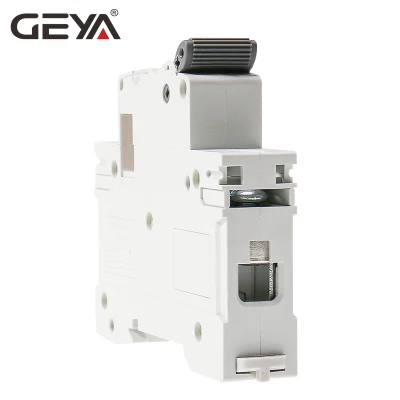

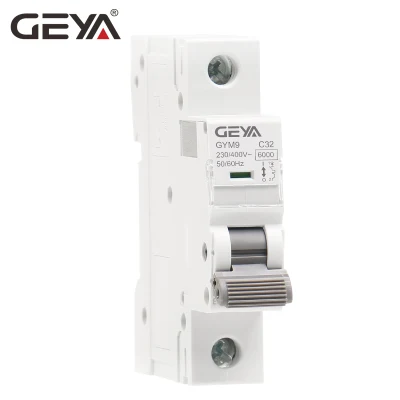

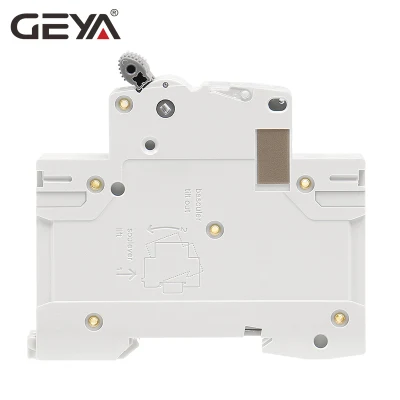

Geya Gym9 6ka 1p 6-20A MCB Miniature Circuit Beaker C63 6ka Low Voltage MCB Mini Circuit Breaker 1-4p 220V Automatic 63A
This link price is only for HA-MS. If you need other specifications, please feel free to contact us!
GYM9 high breaking capacity small circuit breaker is mainly used in AC 50Hz/60Hz, rated working voltage 230V/400V, rated current to 63A and below. Normally, it can also be used as an infrequent disconnection and conversion of lines. Circuit breakers are mainly used in industrial, commercial, and high-rise buildings, households, and other places.
Features
- Short-circuit protection
- Overload protection
- Close quickly
- high breaking capacity
- Isolation function
- Indication function of contact position
- A transparent cover is designed to carry the label.
- Support 35mm Din-rail installation
- Support top incoming and bottom outgoing wiring type, or bottom incoming and top outgoing wiring type.
- Able to select electrical accessories and achieve distant indications of MCB condition: breaking, closed, and fault tripping.
- Able to select electrical accessories and realize under-voltage and over-voltage protection of MCB and distant shunt release.
| Electrical features | |
| Rated current In | 1-63A |
| Poles | 1P 2P 3P 4P |
| Rated voltage Ue | 1P: 230/400V~ 2/3/4P:400V~ |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 4.5kA |
| Rated impulse withstand voltage(1.2/50) Uimp | 6kV |
| Dielectric test voltage at and ind. freq. for 1min | 2.5kV |
| pollution degree | 2 |
| Thermo-magnetic release characteristic | B, C, D |
| Electrical life | 4000 |
| Mechanical life | 10000 |
| Contact position indicator | Yes |
| Installation | |
| Protection degree | IP20 |
| Reference temperature for the setting of the thermal element | 30ºC |
| Ambient temperature (with daily average ≤35ºC) | -5~+40ºC |
| Storage temperature | -25~+70ºC |
| Terminal Connection type | Cable/Busbar |
| Terminal size top/bottom for cable | 25mm |
| Tightening torque | 3.0N |
| Connection | Top and bottom |
| Combination with accessories | |
| Auxiliary contact | Yes |
| Alarm contact | Yes |
| Shunt release | Yes |
| Under-voltage release | Yes |
