Basic Info.
Model NO.
GYM10T-6kA-2P 6-25A
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
MCB
Poles Number
2
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection
Certification
ISO9001-2000, CE
Rated Voltage
230V
Transport Package
Standard Box
Specification
6-25A
Trademark
GEYA
Origin
Zhe
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description

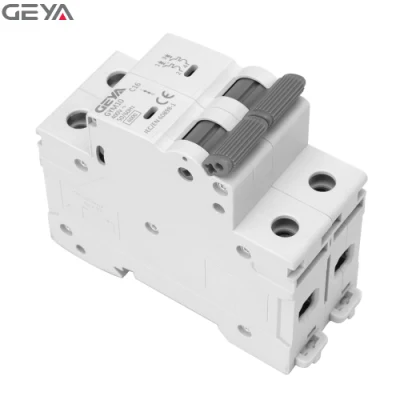

Geya Gym10 2p 6-25A 230V 400V AC DC MCB 1p 2p 3p 4p Switch Miniature Circuit Breaker Mini Circuit Breaker
This link price is only for GYM10T-6kA-2P 6-25A. If you need other specifications, please feel free to contact us!
GYM10 miniature circuit breaker(MCB) is mainly used for protection against overload and the short circuit under the AC 50Hz/60Hz, rated voltage 230V/400V, and rated current from 1A to 63A. It also can be used for non-frequent on-and-off switch operations under normal circumstances.
*In compliance with IEC /EN60898-1
*With indicator function in the contact position.
*Single busbar design.
*Maximum connecting ability of 25mm², wiring torque 3N*m, applicable to a variety of installing equipment, wiring stronger.
*The price-quality ratio is very high.
| Electrical features | |
| Rated current In | 1-63A |
| Poles | 1P 2P 3P 4P |
| Rated voltage Ue | 1P:230/400V~ 2/3/4P:400~ |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 4500/6000A |
| Rated impulse withstand voltage(1.2/50)Uimp | 6kV |
| Dielectric test voltage at and ind. freq. for 1min | 2kV |
| Pollution degree | 2 |
| Thermo-magnetic release characteristic | B C D |
| Electrical life | 4000 |
| Mechanical life | 10000 |
| Installation | |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Reference temperature for the setting of the thermal element | 30ºC |
| Ambient temperature (with a daily average of s35C) | -5~+40ºC |
| Storage temperature | -25~+70ºC |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm² 18-3 |
| Tightening torque | 3.0N*m |
| 22 | |
| Mounting | On DIN rail FN 60715(35mm) |
| by means of a fast clip device | |
| Connection | Top and bottom |
| Combination with accessories | |
| Auxillary contact | Yes |
| alarm contact | Yes |
| Shunt release | Yes |
| Under-voltage release | Yes |
