Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker

Get a good price on 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker. We are a factory direct supplier, offering high quality products for all your electrical needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Recommend Products
  • Certifications
  • Manufacturing Technique
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
GDC1-63-C63-4P
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
MCB
Poles Number
4
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
ISO9001-2000, CE, CB, RoHS
Rated Voltage Ue
230V
Rated Breaking Capacity
4500A
Protection Class
IP20
Transport Package
Carton
Specification
72X74X82
Trademark
GA&DA
Origin
China

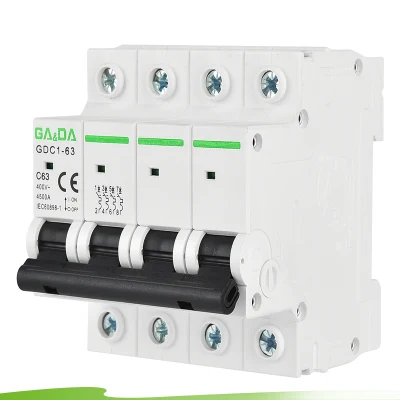

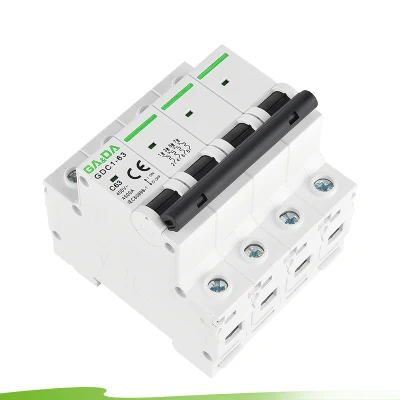

Product Description

Product Description

Miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 1A to 63A/125A. It also can be used for non-frequent on-and-off switch operation under normal circumstance.

Product Features

1. In complicance with IEC/EN62898-1
2. With indicator function in the contact position
3. Maximum connecting ability of 25mm²
4. Overload and short circuit protection



Electrical Features
Type GDC1-63
Test standards IEC/EN60898.IEC/EN60947-2.
Pole 1P.2P.3P.4P
Rated voltage Ue 240/415V~
Insulation voltage Ui 500V
Rated frequency 50/60HZ
Rated breaking capacity 4500A
Rated impulse withstand voltage(1.2/50)Uimp 4kV
Dielectric test voltage at and ind.freq.for.1min 2kV
Thermo-magnetic release characteristic B.C.D
Electrical ilfe 4000
Mechanical life 10000
Electrical Features
Contact position indicator YES
Protection Class IP20
Storage temperature -25~+70ºC
Terminal connection type GDCable/U-type busbar/Pin-type busbar
Mounting On DIN rail FN60715(35mm)
Connection Top and bottom

Product Parameters

Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker

Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker
Beautifully designed

The appearance is novel and unique, with a streamlined design, highlighting the three-dimensional sense, which distinguishes it from other commonly used products in the market, making it more unique and high-end in appearance, beautiful and compact appearance

DIN-rail installation

35mm standard guide rail installation, more convenient for use, installation, and maintenance
Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker
Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker
Status Indicator

The switch status is clear at a glance, easy to maintain

High strength material

The product is made of high-strength material, with strong heat resistance, low flammable point,Wear-resistant, durable
 and corrosion-resistant
Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker

Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker
Electromagnetic release

Short circuit protection, overload protection, can quickly cut off the power supply
Excellent terminal block

Closed wiring, more solid and reliable, can lay multiple cables at the same time
Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker

Recommend Products



Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker
Certifications

Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker

Manufacturing Technique

Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker

Professional Electrical Equipment Laboratory

Our company attaches great importance to technological research and development, and strives to build an automated electrical equipment and digital production line base that enhances traditional industries through automation, gathering a highly skilled technical team; Committed to building a professional lightning protection electrical laboratory. Ensuring the stability and innovation of Gandian products.
---Lightning Impact Test Room: Conduct various waveform impact tests on lightning protection devices, such as 8/20, 10/350, and 1.2/50us;
---SPD safety laboratory: Conduct thermal stability and TOV fault tests, with a test current of 1A-300A;
---Environmental laboratory: salt spray, vibration, high and low temperature tests;
---Physical and chemical laboratory: material metallographic analysis, spectral analysis, RoHs analysis;
---Low voltage test room: leakage marking index, withstand voltage test, flame retardant level;
---Mechanics laboratory: pendulum impact, tensile force, pressure, torsion, hardness, and transportation vibration tests.

Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker

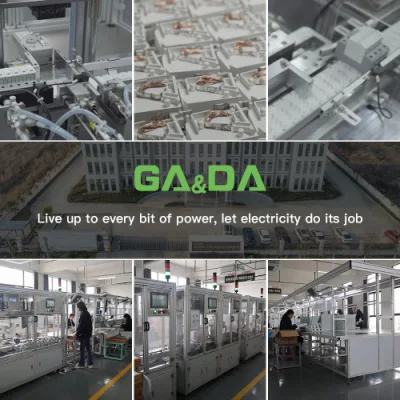

Specialized production process technology
Our company independently develops multiple advanced automatic production and processing lines, plastic injection molding lines,hardware stamping lines, and multiple assembly lines; Integrating automatic equipment such as automatic gluing, automatic soldering, automatic film pressing, transfer printing, laser marking, automatic detection and uploading of data, and automatic sealing and packaging into one; Form a fully automated production line, create a process technology that conforms to Gandian Lightning Protection's own technology, lean production management, and rigorous craftsmanship spirit, which runs through every
link of our production and manufacturing. Carefully control every production process, strictly implement every standard specification, and achieve controllable and traceable quality of each product.


Company Profile

Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker

ABOUT GANDIAN

Carrying the mission of "not letting down every share of electricity and letting electricity do its best", Gandian Lightning Protection Electrical Co., Ltd. emerged as the times require, and over 10 years have passed. Gandian Lightning Protection Electrical Co., Ltd. has developed into a professional lightning protection technology company that integrates product research and development, manufacturing, and overall electrical product solutions
Our company has a factory area of over 30000 square meters and currently employs over 200 people; Since its establishment, our company's spirit of pioneering and enterprising has continued. Our team has been committed to the development and improvement of new energy electrical products, as well as the updating and improvement of existing products.
Through continuous reform and innovation, the company develops its own brand, adheres to the path of technological innovation, and deeply understands that technology and innovation are the driving force for our sustainable development.
Our company attaches great importance to technological research and development, and strives to build an automated electrical equipment and digital production line base that enhances traditional industries through automation, gathering a highly skilled technical team; Committed to building a professional electrical laboratory. Ensuring the stability and innovation of Gandian products.

Good Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit BreakerGood Price 63A MCB 4.5ka 1p 2p 3p 4p Mini Circuit Breaker DIN Rail Miniature Circuit Breaker
FAQ

FAQ

1.You have sales target finished amount requirement to the distributor?
Q:We welcome distributors in various countries to cooperate with us. Sales is an important assessment criterion.According to different requirements of different countries, new and old customers are welcome to consult!
2.Can I delivery the goods from other supplier to your factory? Then load together?
Q:Of course, we are happy to help customers get products quickly
3.Can I only buy some spare parts from you?
Q:Of course, we can sell everything from spare parts to finished products.
4.Will you will attend the fair to show your products?
Q:Yes, we participate in 3-4 international exhibitions every year, such as the Canton Fair, the Middle East Dubai Electricity Show, the Asian Electricity Show, etc. A series of different exhibitions, and we look forward to seeing each other at the exhibition!
5.How long it takes you to provide the designing options for us?
Q:We have a professional design team. Our models and spare parts are self-developedand produced. We can provide you with ODM services. The general time limit is 45-50 days.
6.How many years have your company made this kind of equipment?
Q:Our company has a history of 12 years. We have been specializing in the production of a series of electrical products such as surge protectors, fuses, circuit breakers, etc.
7.Which certificate do you have for your equipment?
Q:We have established a complete quality management, supply chain and after-sales service system. Continuously introduce 6S international advanced concepts in management, and have successively passed ISO9001, ISO14001, OHSAS18001, CQC certification, CE certification, TUV certification, CB certification, Rohs certification.
8.How many staffs do you have in your factory?
Q:Our company is located in Jiujiang Economic and Technological Development Zone, Jiujiang City, Jiangxi Province, the only International trade port city in Jiangxi Province, with a plant area of more than 30,000 square meters and more than 200 employees.
9.How can I to be your agent in my country?
Q:We welcome distributors in various countries to cooperate with us. Sales is an important assessment criterion. According to different requirements of different countries, new and old customers are welcome to consult!
10.Do you have detailed and professional installation manual?
Q:Of course, you can find the installation manual of any product on our website, and there will be an installation manual in our product box.
11.If OEM is acceptable?
Q:We can provide OEM and ODM services. We have many different specifications and appearances for customers to choose.
12.Do you provide sample? Free or charge?
Q:We can provide free samples to customers, but only one piece, but customers need to bear the freight.
13.What is your MOQ?
Q:We decide according to the packaging of the product, our minimum order quantity is 100pcs.
14.Are you a trading company or a manufacturer?
Q:We are a manufacturer, Our company has a history of 12 years. We have been specializing in the production of a series of electrical products such as surge protectors, fuses, circuit breakers, etc.
15.How many production lines in your factory?
Q:The company independently developed a number of advanced production and processing automatic assembly lines, plastic injection assembly lines, hardware stamping assembly lines, and multiple assembly lines; the automated assembly lines will automatically fill glue, automatic solder, automatic laminating, pad printing, laser marking, and automatic inspection. Automatic equipment such as uploading data, automatic sealing and packaging is integrated. It runs through every link of our production, carefully controls every production process, strictly implements every standard specification, and achieves every product Quality controllable and trace.
16.How long is your delivery time?
Q:Our delivery time is determined according to the purchase quantity. Generally, it is about 3-40 days, less than 300 pieces within 5 days, 300-2000 pieces within 7-15 days, 2000-20000 only within 15-40 days.
17.Can you can design the equipment according to our size?
Q:Of course, we can customize any product according to customer requirements, and we can all provide design solutions and solutions.
18.Can your product be installed in cold or hot weather?
Q:The working environment temperature of our surge protector is -40ºC~80ºC, as long as the installation environment you are in does not exceed this range, they can all work normally.
19.Where is your factory located?
Q:We currently have two factories, one is in Jiujiang City, Jiangxi Province, and the other is in Wenzhou City, Zhejiang Province.Jiujiang, Jiangxi is our current main production base, with an area of more than 30000 square meters.
20.Is there a discount for me to buy more products?
Q:We are now in the September Purchasing Festival event. Most of the products in the live broadcast room have very large discounts. In addition, depending on your purchase volume, we have different discounts. 1% discount for orders above the product amount of US$50,000 (excluding shipping costs) 2% discount for orders above the product value of 150,000 US dollars (excluding shipping costs) 3% discount for orders above the product value of US$300,000 (excluding shipping costs) 5% discount for orders over 500,000 US dollars (excluding shipping)
