Basic Info.
Model NO.
GTL412C
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
RoHS, ISO, CE
Customized
Customized
Standard
ANSI 12.7
Application
Plug in Circuit Breaker
Waterproof Level
NEMA 3r
Protection Level
IP54
Material
0.8-1.5mm Electro-Galvanized Steel Sheet
Rated Voltage
120/240V
Rated Current
125A
Useing Range
Single Phase 3 Wire
Rated Phase
Dpn
Breaker
Thql
Transport Package
Wooden Package
Specification
CE ROHS
Trademark
OEM
Origin
Zhejiang Yueqing
HS Code
9028901100
Production Capacity
100000PCS/ Month
Product Description
TLS series are economy load centers which can substitute some Load Centers.
They have been designed for safe, reliable distribution and control of electrical power as service
entrance equipment in residential, commercial and light industrial premises.

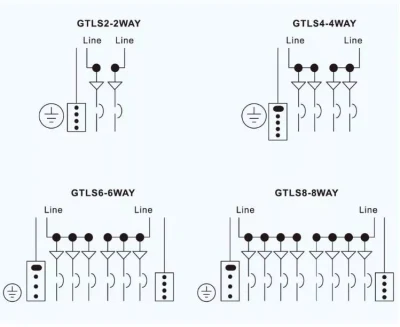

Specifications:
Features
- Made out of high quality steel sheet of up to 0.6-1.2mm thickness.
- Matt-finish polyester powder coated paint.
- Knockouts provided on all sides of the enclosure.
- Accept GE type 1" THQL breakers.
- Suitable for single-phase ,three-wire, rated current to 100A,sevice voltage to 120/240Vac.
- Wider enclosure offers ease or wiring and move heat dissipation.
- Flush and surface mounted designs.

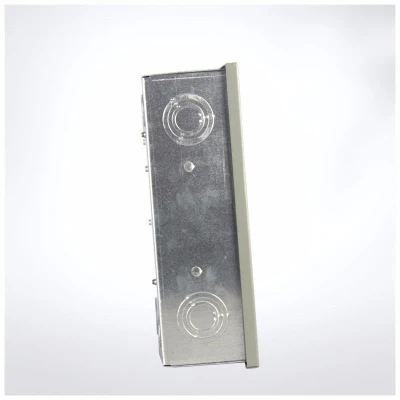

- Knockouts for cable entry are provided on top, bottom of the enclosure.
