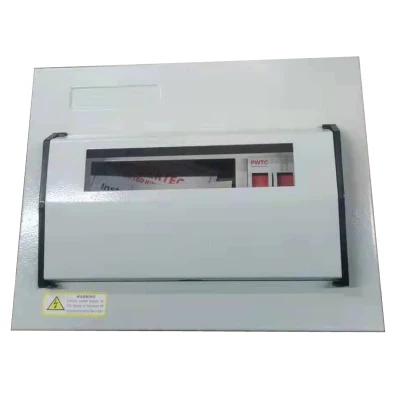

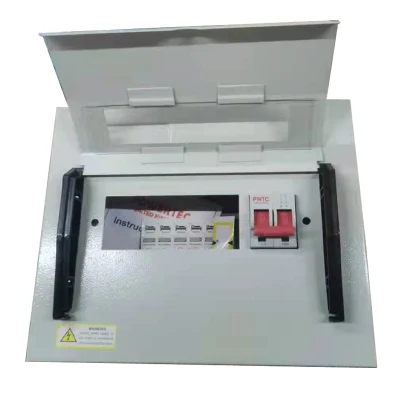

Havlaws 3p 4way Distribution Board (HAWS MCB 3P 4WAY Distribution Board)
Get the Havlaws 3P 4way Distribution Board for efficient and reliable electrical distribution. As a factory, we guarantee high-quality products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HWS-4Way
Application Range
High-rise Buildings
Shell Material
FRP
Shell Protection Grade
IP56
Brand
OEM
Transport Package
Export Packaging Box
Specification
360X250X110MM
Trademark
OEM
Origin
Wenzhou
HS Code
853890000
Production Capacity
10000PCS Per Week

Product Description

Haws MCB 3P 4WAY Distribution Board

Specification:

Haws distribution board is applied to the distribution board with kinds of control functions. Easy to install and convenient operation and high reliability. Enclosure material made of cold-rolled steel sheet or stainless steel.



Warning:
1.Ensure Tight Connections at all time since Loose Connections are Major reason forFfalse Tripping and Burnt terminals.
2.Recommended to Use with Earth Leakage Circuit Breaker - RCCB.
3.Instal DB only in air-circulated area.
4.Install DB far from fuel and other sensitive areas.

5.Keep Away form Children and other Flooding leval.
6.Make sure all Circuit Breakers are in OFF position before switching ON Main Circuit breaker / Isolator / RCCB and then Switch ON each Circuit Breaker one by one.



Size:

Dimebsion of Distribution Box Variants
way DIMENSIONS
A B C KNOCKOUT HOLES(Ø31)
TOP BOTTOM SIDE(EACH SIDE)
4 196 251 296 4 4 2
4 264 323 341 6 6 2
6 264 323 341 6 6 2
8 336 395 413 6 6 2
12 479 534 552 8 8 2
Havlaws 3p 4way Distribution Board (HAWS MCB 3P 4WAY Distribution Board) Havlaws 3p 4way Distribution Board (HAWS MCB 3P 4WAY Distribution Board) Havlaws 3p 4way Distribution Board (HAWS MCB 3P 4WAY Distribution Board)
