Overview

Basic Info.

Model NO.
VS1
Poles Number
3
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
ISO9001-2000, CCC
Product Name
Intdoor Vacuum Circuit Breaker
Orign of Place
Zhejiang ,China
Related Voltage
up to 12kv
Rated Frequency
50/60Hz
Rated Current
up to 2500A
Phase
Three
Certificate
ISO CCC IEC
OEM
Offered
MOQ
1PCS
Mechanical Life
20000 Times
Transport Package
Normal Export Case
Specification
681*598*650
Trademark
Zhegui Electric
Origin
Zhejiang, China
HS Code
8537209000
Production Capacity
50pieces/Week

Product Description



Customized products can consult online customer service!

High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker
PRODUCT DETAILS

High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker

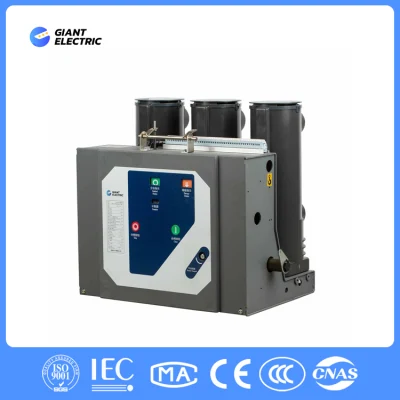

Indoor Vacuum Circuit Breaker

Description:
        VS1-12(ZN63A) indoor high voltage vacuum circuit breaker is a three-phase AC 50 Hz indoor high voltage switchgear with rated voltage of 7.2-12kV. The circuit breaker meets the requirements of China's national standard gb1984-2003 "AC high voltage circuit breaker ", jb3855-1996 "3.6 ~ 40.5 kV indoor AC high voltage vacuum circuit breaker", d1403-91 "10-35 kV indoor high voltage vacuum circuit breaker ordering technical conditions" and relevant iec60694. IEC62271-100 standards, and has reliable interlocking function.

VS1-12(ZN63A) indoor high voltage vacuum circuit breaker can be operated frequently and has the ability of multiple breaking, and fast reclosing.
        VS1-12(ZN63A) indoor high-voltage vacuum circuit breaker is designed as a front and back separate structure, which can be used as a fixed installation unit or as a separate handcart with a chassis car.
High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker

TECHNICAL PARAMETER
High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker
The technical parameters of the form are for reference only.
Customized products can consult online customer service!


 serial number name  unit  data
1  nominal voltage KV 12
2  rated frequency Hz 50
3 Rated insulation level Voltage withstand 1min power frequency kA max/alternate with 42/48
Lightning shock voltage (peak) kA max/alternate with 75/85
4 Rated short circuit breaking current kA 20 25 31.5 40
5  rated current  A 630 630 1250 1600 1250 1600
A 1250 1250 2000 2500 2000 2500
  Rated short-time tolerable current (effective value) kA 20 25 31.5 40
7 Rated peak tolerable current (peak) kA 50 63 80 100
8 Rated short circuit closing current (peak)   50 63 80 100
9 Rated short circuit current duration S 4
10  mechanical life next 20000
11 Power frequency withstand voltage of secondary circuit (1min) V 2000
12 Rated sequence of operation minute -1- Or points -t1- Or points
High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker
THE USE OF CONDITIONS

High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker

Ambient temperature: - 15ºC-40ºC(daily average ≤35ºC)
Environmental humidity: daily average relative humidity s95%
Monthly average relative humidity ≤90%
Attitude: ≤1000M
Use environment: no dripping, fire, explosion, serious pollution, chemical corrosion and violent vibration
Seismic intensity: ≤8 degree
If the customer deviates from the normal use conditions, they can negotiate with the manufacturer for manufacturing
RELATED PRODUCTS



High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker
COMPANY INFORMATION

High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker         Zhejiang ZheGui Electric Co., Ltd established in 2013. We are located in Zhejiang with convenient transportation access and developed electrical market. We are group of private enterprises that hold the production license issued by the former ministry of energy and ministry mechanical and electrical engineering.
        The company has nearly 60 million fixed assets and more than 60 employees, covering 23133 square meters. We are specialized in R&D production of complete switchgear of high and low voltage equipment such as prefabricated substation, distribution cabinet/box, drawer cabinet, ring network cabinet, inflatable cabinet, etc.
        We owns three CNC bending machine, CNC shearing machine, CNC laser cutting machine and a series of advanced production equipment to further optimized the product structure and improve the efficiency of production. After nearly 7 years of development, it has passed ISO 9001-2000 quality system certification. All items produced by our own factory, so our advantages are: reliable quality and reasonable price. Gather the world's energy to delight your business. It's honorable for Zhegui to share your progress, brilliance and success!

High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker

Contact Us

High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker





FAQ
High/Medium Voltage Vacuum Circuit Breaker Mv Vcb Gas Insulated Vacuum Circuit Breaker

Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.



Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.



Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.



Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.



Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.
