Basic Info.
Model NO.
MGB Series
Poles Number
1p.2p.3p.4p
Type
Circuit Breaker
Function
Overcurrent Protection
Certification
ISO9001-2000, CE, CB
Capacity
4.5ka,6ka
Type of Trip
Thermal/Magnetic Relase
Type of Terminal
Pin Type
Rated Current in
0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A
Number of Poles
1p,1p+N,2p,3p+N and 4p
Degree of Protection
IP20
Width
17.8mm Per Pole
Rated Insulation Voltage Ui
500V
Rated Impulse Withstand Voltage Uimp
4kv
Thermal Operating Limit
(1.13-1.45)in
Magnetic Operating
B (3-5)in, C (5-10)in D (10-20) in
Transport Package
Carton
Trademark
Eleco
Origin
Zhejiang, China
Production Capacity
10000PCS/Month
Product Description

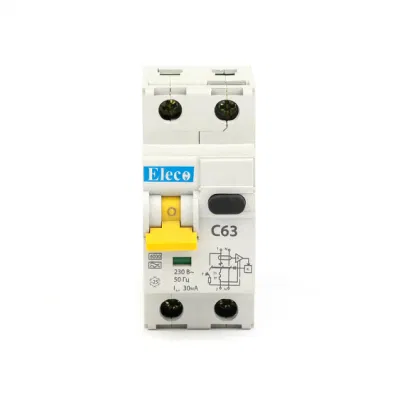

Miniature Circuit Breaker MGB Series
Applications:
The breaker is characterized by compact design,lightweight, elegant appearance, high breaking capacity,swift releasing long service life.
Specifications:
About us
ELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
Express cooperation: DHL, EMS, TNT and so on.
Applications:
The breaker is characterized by compact design,lightweight, elegant appearance, high breaking capacity,swift releasing long service life.
Specifications:
| Standard | Confirming to IEC60898,IEC60947-2 |
| Protection | Against overload and short circuit |
| Rated Current in | 0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
| Number of Poles | 1p,1p+N,2p,3p+N and 4p |
| Type of Terminal | Pin Type |
| Degree of Protection | IP20 |
| Width | 17.8mm Per Pole |
| Breaking Capacity | 4.5KA, 6KA |
| Rated Voltage | 1pole 230/400V AC 50/60Hz 2,3,4pole 400V AC 50/60Hz Rated insulation voltage Ui:500V Rated impulse withstand voltage Uimp: 6000V |
| Type of trip | Thermal/magnetic release |
| Installation | Mounting on 35mm DIN rail |
