High Quality 3 Pole DIN Rail Mini Circuit Breaker 400V

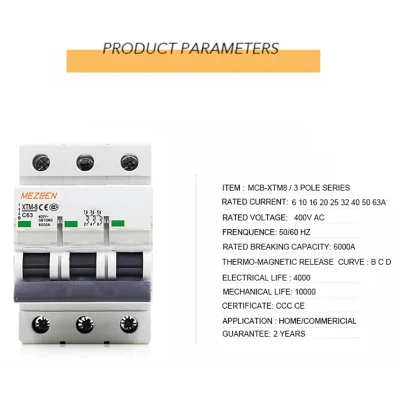

 XTM8 miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50 Hz/60Hz,rated voltage 230V/400V and rated current from 1A to 63A .

XTM8 MCB function: Fast trip to ensure reliable operation of the load and prolong the life of electrical circuit breakers. It can also work as on-off switch for load circuits.

1.In complicance with IEC/EN60898-1

2.With indicator function in the contact position

3.Bilateral busbar wiring capabilities to adapt to the wider use of premises

4.Transparent cover new designed to carry label.

5.Maximum connecting ability of 25mm² ,wiring torque 3N*m,applicable to a variety of installing equipments,wiring more stronger.

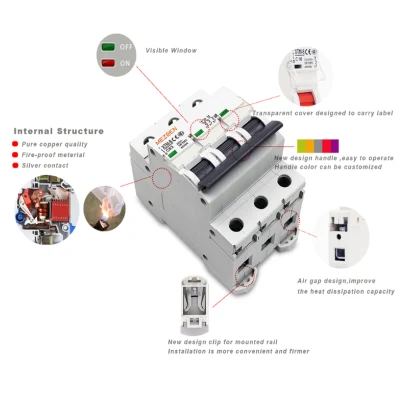

MCB FEATURES

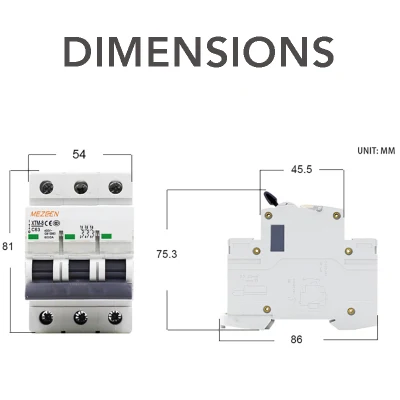

MCB DIMENSIONS

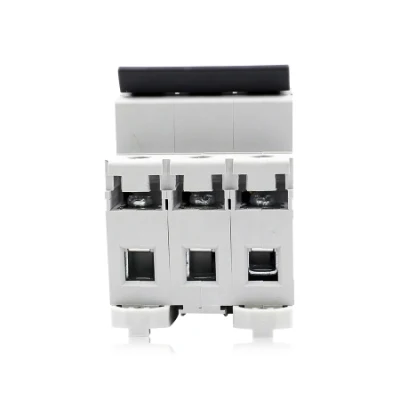

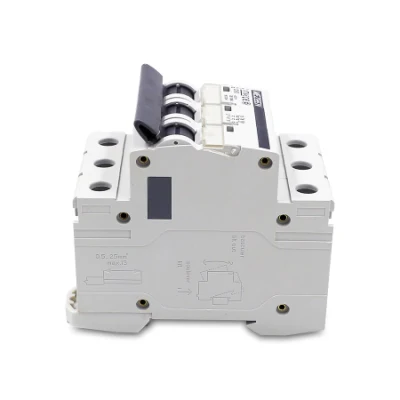

MCB POHOES




Miniature Circuit Breaker Package:
Standard export carton packing:
MCB-XTM8   1 P   240  pcs/ctn
MCB-XTM8   2P   120 pcs/ctn
MCB-XTM8   3P    80 pcs/ctn
MCB-XTM8   4P    60 pcs/ctn
Carton Size 42.5*23.5*33.5 cm
G.W./N.W.21/20 kgs

Miniature Circuit Breaker Delivery Time:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Miniature Circuit Breaker  Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. DHL UPS.... ect express


Yueqing Beibaixinag Xingpeng Electric Switch Factory (Shanghai Mezeen Electric Co.,Ltd) is intergrates research and development, production, sales and service ,Which was established in 2003 and has more than 20 years of professional production exprerience. Our Products include Miniature Circuit Breaker, Leakage Circuit Breaker, MCB distribution box, Switches and Sockets, Knife switch and so on .

Our products not noly have a stable market in China, but also have been exported to many cuontries of European, South American, North American, East Middle and Asia. We always sticks to the philosophy of : Pursuing Survival with Quality, Promoting Development with Technology,Achieving Customers with Services".

Because of long-term cooperation with a large number of foreign customers ,we can fully understand the needs of customers accurately. we sincerely welcome customers to visit our company for inspection and business discussion.
