Product Description

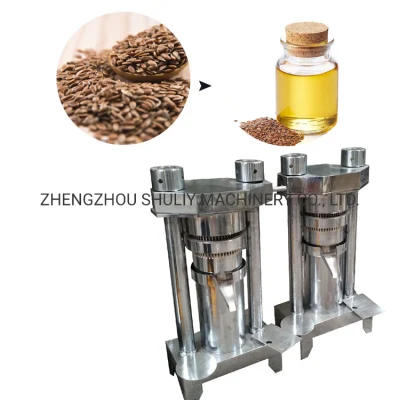

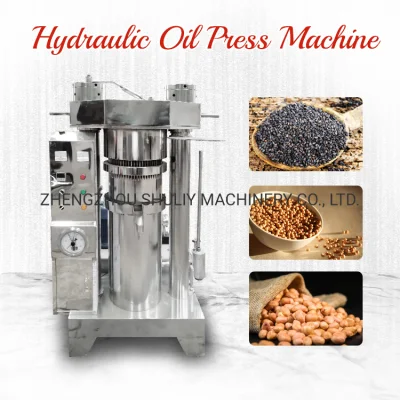

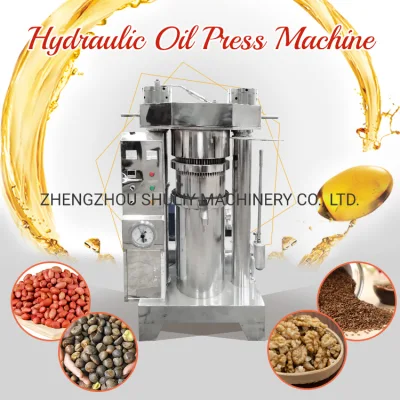

This hydraulic oil press machine is suitable for cold pressing or hot pressing many oil seeds and oil plant, Especially for pressing sesame, pine nut, walnut, and so on valuable oil seeds.
Full automatic hydraulic oil press is a small oil press which is most convenient in operation, highest yield efficiency, as well as least replacement spare parts. Only one hydraulic oil press machine, you could get the better oil and easy to operate.
Production Details:
1. This hydraulic oil press machine is the most advanced equipment and takes up less area. Its material mainly electroplate.
2. It is economic and environmental protection, stable and durable. This machine adopts automatic control system, hydraulic pressure control system, and temperature control system.
3. It has high pressure, high yield oil and easy to operate. This machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 8-15 minutes. The oil is pure and fragrant.
4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
Product structure 2. Hydraulic System :Hydraulic system is the main power force of this machine, it includes transmission shaft, turbine, worm gear, gear pump, high pressure pump, overflow valve; super high pressure safety valve; hand-operated valve; seamless steel tube; pipeline connect and other spare parts. This machine adopts the advanced power pack of the world, and compared with two plunger pump, it is faster , higher pressure and can resist higher temperature, it can continue working when the oil temperature is above 65 but needn't cooling unit.
1. we have many moldes for you to choose
2. We can customize the model you need for you
| Model | oil outout | power | Voltage | Size | Weihgt |
| 6YZ-150 | 10kg/h | 0.75KW | 220V/50HZ/Single phase | 700/800/780 | 240 |
| 6YZ-180 | 20kg/h | 1.5KW | 220V/50HZ/Single phase | 800/950/1050 | 550 |
| 6YZ-230 | 40kg/h | 1.5KW | 220V/50HZ/Single phase | 900/1000/1400 | 950 |
| 6YZ-260 | 50kg/h | 1.5KW | 220V/50HZ/Single phase | 1050/1100/1550 | 1200 |
| 6YZ-320 | 90kg/h | 2.2KW | 220V/50HZ/Single phase | 1120/1200/1650 | 1700 |

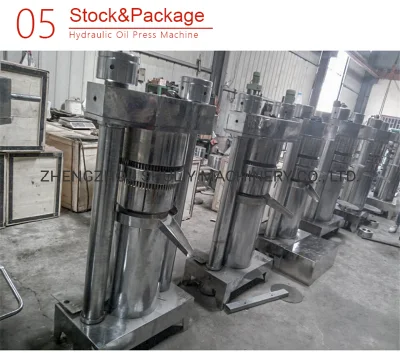

In international trade, all our machines are packed in standard wooden cases.Wooden case packing can protect the machine from damage during transportation.
