Basic Info.
Model NO.
QO
Poles Number
2
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection
Certification
ISO9001-2000, CE, CB, CCC
Transport Package
Paper Backing Box
Specification
240PCS/CTN
Trademark
OEM
Origin
Wenzhou
HS Code
8536200000
Production Capacity
5000PCS/Week
Product Description
Construction and Feature
? Protection against both overload and short circuit
? High short-circuit capacity
? Applicable to terminal and pin/fork type busbar connection
Technical Data

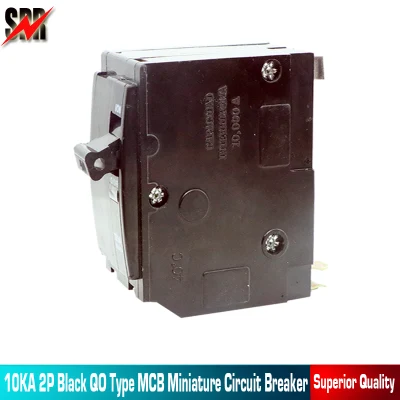

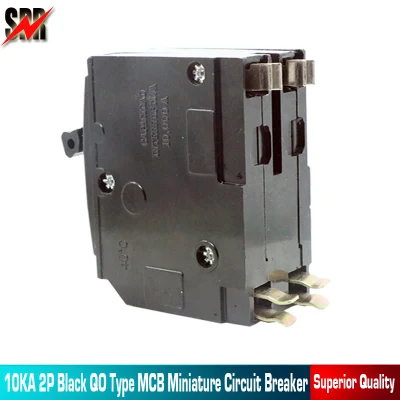

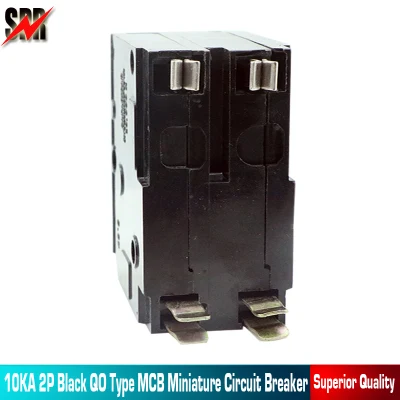

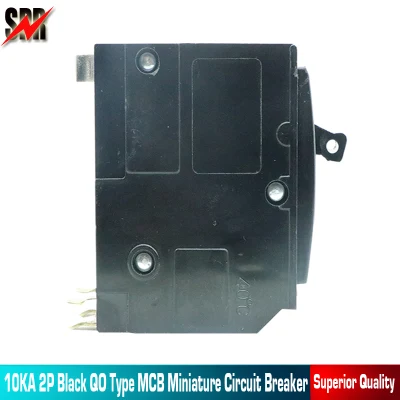

? Product name:10KA 2 Pole Black QO Type Mcb Miniature Circuit Breaker
? Color:Black
? Poles number:2
? Tripping curve:B,C,D
? Rated voltage Ue:220/380 230/400 240/415
? Rated frequency:50/60Hz
? Insulation voltage Ui:500
? Rated breaking capacity:6000/10000
? Protection degree:lP20
? Contact position indication
? Connection terminal:
? Screw terminal
? Pillar terminal with calmp
? Connection capacity:Rigid conductor up to 16mm²
? Fastening torque:2.0Nm
? Installation:
? Clips pan assembly base
? Panel mounting
? Terminal Connection Height:18mm
Specification :
| Pole NO.(P) | 1,2 |
| Rated Current (A) | 6,10,16,20,32,45,63 |
| Rated Voltage(V) | 120V/240V |
| Degree of protection | IP20 |
| Electric Life(times) | 6000 |
| Mechanical Life(times) | 4000 |
