High Quality Lighting and Switching Instrument Ready Board

Introducing the IllumaSwitch, a high-quality lighting and switching instrument ready board. Perfect for factories. Get yours today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
RB31
Application Range
Lighting&Charging
Shell Material
PC
Shell Protection Grade
IP54
Brand
See
Light
LED Bulb / E27
Temperature
-30ºC-60ºC
Transport Package
Carton
Specification
L388mm*W240mm*102.5mm
Trademark
SEE
Origin
Jiangsu, China
Production Capacity
1000000pieces/Year

Product Description

Ready Board

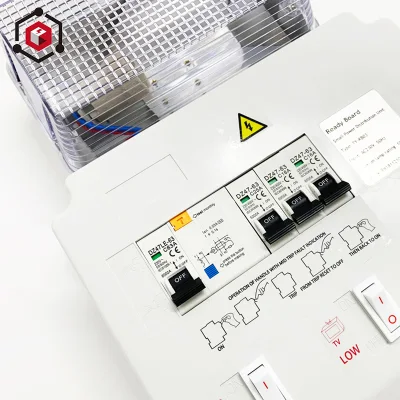

SEE-RB31 Small Power Distribution Unit(SPDU)

Brief Introduction

SEE-RB31 is a portable, safe, economic and easy to use pre-wired low voltage ready board with 3(Three) sockets, 1(One)lighting lamp and protection area. It has four mounting lugs suitable for wall installation and additional knockout for future use. It is suitable for residential (small holding, extensions, garages, outbuildings), commercial and industrial purposes.


High Quality Lighting and Switching Instrument Ready Board
High Quality Lighting and Switching Instrument Ready Board
High Quality Lighting and Switching Instrument Ready Board



Specification
Items Paremeters
Dimension L388mm*W240mm*102.5mm
Power Input AC 230V 50Hz
Socket Type British Type /Type G
Max Power Output 13A
Lamp Holder Screw Type E27
RCBO 1pcs 1P+N 63A
Minimum Circuit Breaker 1pcs 25A; 1pcs 16A; 1pcs 5A
Material of Ready Board Injection Molded Plastic
Type of Mounting Wall Mounting with four screws
No. of Access Points for Conduit or Each Cable 9 at Side
Protection Class Light chamber IP67
Temperature -30ºC to 60ºC
Color Grey

Components
High Quality Lighting and Switching Instrument Ready Board
Installation Method & Accessories
High Quality Lighting and Switching Instrument Ready Board
High Quality Lighting and Switching Instrument Ready Board
High Quality Lighting and Switching Instrument Ready Board
Factory Show
High Quality Lighting and Switching Instrument Ready Board
High Quality Lighting and Switching Instrument Ready Board
High Quality Lighting and Switching Instrument Ready Board
