Basic Info.
Model NO.
EPB6K Series
Poles Number
1p.2p.3p.4p
Type
Circuit Breaker
Function
Overcurrent Protection
Certification
ISO9001-2000, CE, CB, Semko
Protection
Against Overload and Short Circuit
Rated Current in
0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A
Number of Poles
1p,1p+N,2p,3p,3p+N and 4p
Protection Degree
IP20
Rated Insulation Voltage Ui
500V
Rated Impulse Withstand Voltage Uimp
4kv
Energy Limiting
Class 3.0
Type of Trip
Thermal /Magnetic Release
Type of Terminal
Lug Type and Pin Type
Width
17.8 mm Per Pole
Standard
En/IEC60898-1
Transport Package
Carton
Trademark
Eleco
Origin
Zhejiang, China
Product Description

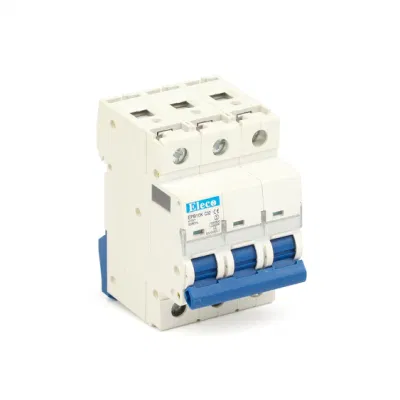

Miniature Circuit Breaker EPB6K Series
Specifications:
| Standard | Confirming to EN / IEC60898 |
| Breaking capacity | 6kA |
| Protection | Against overload and short circuit |
| Rated current In | 0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
| Rated Current in | 0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
| Rated voltage | 1pole 230/400V AC 50/60Hz 2,3,4pole 400V AC 50/60Hz Rated insulation voltage Ui: 500VRated impulse withstand voltage Uimp: 6000V Energy limiting class: 3 |
| Ambient temperature | -5ºCto +40ºCpursuant to EN / IEC60898 |
| Characteristic | Thermal operating limit: (1.13-1.45) x In Magnetic operating: B: (3-5) x In C: (5-10) x In D: (10-20) x In |
| Number of poles | 1P,1P+N,2P,3P,3P+N and 4P |
| Type of trip | Thermal / magnetic release |
| Type of terminal | Lug type and Pin type |
| Terminal capacity | 16mmflexible or 25mmrigid up to 25A ratings 25mmflexible or 35mmrigid for 32A to 63A ratings |
| Protection degree | IP20 |
| Installation | Mounting on 35mm DIN rail |
| Width | 17.5mm per pole |
Endurance(operations)
| Category | Operations | Operation Frequency | Rated Current |
| Electrical Endurance | 4000 | 240/h 120/h | 0.5~32 40~63 |
| Mechanical Endurance | 10000 | 240/h | 0.5~63 |
