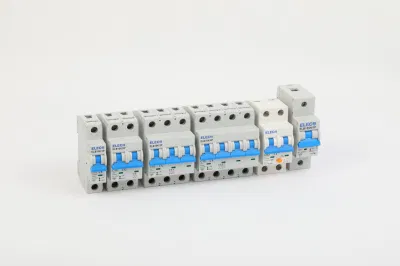

High Quality Mini Circuit Breaker Elb10K Series 1p 2p 3p 4p 16A

Get the high quality Elb10K mini circuit breaker series in 1p, 2p, 3p, and 4p with 16A capacity. We are a factory specializing in manufacturing top-notch electrical products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
ELB10K Series
Poles Number
1p.2p.3p.4p
Type
Circuit Breaker
Function
Overcurrent Protection
Certification
ISO9001-2000, CE, CB, Semko
Rated Current (a)
0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A
Rated Voltage
1pole 230/400V AC 50/60Hz,2,3,4pole 400V AC 50/60h
Ambient Temperature
-5octo +40ocpursuant to En / IEC60898
Number of Poles
1p,1p+N,2p,3p,3p+N and 4p
Standard
En/IEC60898-1
Protection
Against Overload and Short Circuit
Rated Insulation Voltage Ui
500V
Rated Impulse Withstand Voltage Uimp
4kv
Energy Limiting
Class 3.0
Type of Trip
Thermal /Magnetic Release
Type of Terminal
Lug Type and Pin Type
Protection Degree
IP20
Width
17.8mm Per Pole
Transport Package
Carton
Trademark
Eleco
Origin
Zhejiang, China

Product Description

High Quality Mini Circuit Breaker Elb10K Series 1p 2p 3p 4p 16A
Production Description
Standard Confirming to EN/IEC60898
Breaking capacity 10KA
Protection Against overload and short circuit
Rated current In 0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A
Rated voltage 1 pole 230/400V AC 50/60Hz
2,3,4pole 400V AC 50/60Hz
Rated insulation voltage Ui : 500V
Rated impulse withstand voltage Uimp : 6000V
Energy limiting class : 3
Ambient temperature -5ºC to +40ºC pursuant to EN /IEC 60898
Characteristics Thermal opreating limit : (1.13-1.45)*In
Magnetic operating : B :(3-5)*In
                                 C :(5-10)*In
                                  D:(10-20)*In
Number of pole 1P,1P+N,2P,3P,3P+N and 4P
Type of trip Thermal / magnetic release
Type of terminal Lug type and Pin type
Terminal capacity 16mm² flexible or 25mm² rigid up to 25A ratings
25mm² flexible or 35mm² rigid for 32A to 63A ratings
Protection degree IP 20
Installation Mounting on 35mm DIN rail
Width 17.5mm per pole



High Quality Mini Circuit Breaker Elb10K Series 1p 2p 3p 4p 16A
No Rated current of relaese (A) Initial state Test current Specified time Result to be pbtained Remarks
1 1-63 cold state 1.13In t≤1h Non-trip
2 1-63 upon the previous test 1.45In t<1h trip Setting current up
to specified value steadily in 5s
3 In≤32
In>32
1-63
1-63
cold state
cold state
cold state
cold state
2.55In
2.55In
3In
5In
1s1s≤t<120s
t≤0.1s
t<1.1s
trip
trip
Non-trip
trip


B type
B type
4 1-63
1-63
1-63
1-63
cold state
cold state
cold state
cold state
5In
10In
10In
20In
t≤0.1s
t<1.1s
t≤0.1s
t<1.1s
Non-trip
trip
Non-trip
trip
C type
C type
D type
D type

Endurance (operations)
Category Operations Operation frequency Rated current
Electrical endurance 8000 240/h
120/h
0.5-32
40-63
Mechanical endurance 20000 240/h 0.5-63


Key parameters:

·CE/CB/ROHS/ISO9001 certificates
·Rated voltage :230V/400V
·Frequency: 50/60hz
·Rated current : 1-125A
·1/2/3/4poles optional
·Thermal operating limit : (1.13-1.45)*In
·Magnetic operating : C:(5-10)*In   D:(10-20)*In
·Protection degree : IP20
·Mounting on 35mm DIN rail
·27mm per pole of width
·Breaking capacity : 10KA

Features:

1.High rated short-circuit breaking capacity up to 10000A on EN /IEC60947-2 standard.
2.Service life of product has been greatly enhanced through specially designed tripping mechanism.
3.Long-time and reliable operation.
4.Enclosure and functional parts made from imported plastics with flame-retardant,heat-resistant,andimpulse-proof properties.
5.Compact and modularized design.
6.Convenient mounting.
