Basic Info.
Model NO.
SRL-Z500/1000
Certification
CE, ISO
Application Area
Chemical
Layout Type
Horizontal
Mixing Drum Shape
Disc
Additional Capabilities
Milling, Drying
Operating type
Cycle Operating
Condition
New
Name
Plastic Mixer Machine
Type
Plastic Mixer Machine
Usage
Mixer Equipment
Keywords
Mixer Machine
Product Name
High Speed Mixer Unit
Material
304 Stainless Stee
Raw Material
PVC WPC Powder
Name1
Plastic Mixer
Name2
Industry Powder Mixer Machine
Name3
PVC Powder Mixing Machine
Name4
Powder Mixer Machine
Name5
Mixer Machinery
Name6
Plastic Mixer Machinery
Name7
Industy Mixing Machine
Name 8
PVC Compounding Mixer Machine
Transport Package
Plastic Film or Wooden Case
Trademark
GeGao
Origin
China
HS Code
8477209000
Production Capacity
30sets/Month
Product Description
SRL-Z500/1000 Plastic PVC Powder Mixer Machine Plastic Raw Material Mixer Plastic Extruders
SHR series PVC Powder Mixer Machine is used in mixing, blending, drying, coloring materials in plastic, rubber and chemical industries.SHR series high-speed mixer adopts advanced desgin, it is convenient and safe for operation. It offers small size, light weigth, high effciency, low energy consumption, and low noise.
And in the process of drying and volatilization of engineering plastic such as ABS polycarbonate etc before forming and processing as well as in the mixing of phenolic resin.
The unit combines heat mixing and cool mixing together, the materials after heat mixing can be going into cool mixer for cooling automatically, exhaust remaining gasses and avoids agglomerates.
| Model | Total Volume | Effective Volume(L) | Paddle speed | Motor Power(KW) | Water Consumption | Discharging | Overall size |
| SRL-Z100/200 | 100/200 | 75/160 | 650/1300/90 | 14/22/7.5 | 3.5T/H | Pneumatic | 2500x2000x2200 |
| SRL-Z200/500 | 200/500 | 150/320 | 460/920/90 | 30/42/11 | 5T/H | Pneumatic | 4580x2240x2470 |
| SRL-Z300/600 | 300/600 | 200/360 | 475/950/90 | 40/55/11 | 5.8T/H | Pneumatic | 4580x2240x2500 |
| SRL-Z500/1000A | 500/1000 | 375/650 | 475/950/90 | 47/67/15 | 6.9T/H | Pneumatic | 4600x3000x4050 |
| SRL-Z800/1600A | 800/1600 | 600/1024 | 370/740/68 | 60/90/22 | 10T/H | Pneumatic | 6230x4230x4480 |
| SRL-Z800/2000A | 800/2000 | 600/1500 | 370/740/68 | 83/110/22 | 12T/H | Pneumatic | 4850x3860x6550 |
| SRL-Z1000/3000 | 1000/3000 | 800/2200 | 66/68 | 160/30 | 15T/H | Pneumatic | 5800x4500x7300 |

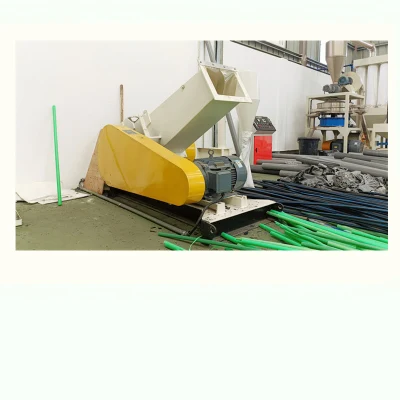

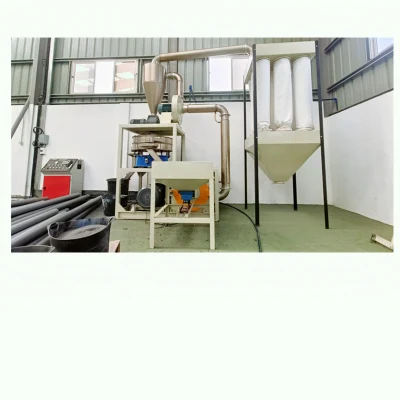

Detailes Images :
Packing &Shipping
1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading
After Sales Service
Company Profile
Located in Zhangjiagang City of Jiangsu Province, Zhangjiagang Gegao Science & Technology Development Co., Ltd. is a plastic machine manufacturer. We enjoy convenient traffic conditions. Our company occupies an area of 20,000 square meters, and we own 7,000-square-meter international standard factory building. Our company is a professional comprehensive plastic machinery manufacturer which integrates researching, developing and manufacturing together. We have obtained the ISO9001 certificate. We produce various plastic machines, such as single-screw-stem extruders, cone double -screw-stem extruders, high-speed mixers, sets of production lines of pipes, plates, sheet materials and various kinds of auxiliary machines. They are well sold in Chin and about 30 foreign countries, such as Russia, Malaysia, Lebanon, Myanmar and South Africa. They are praised by masses of our consumers. We always follow the management idea of "Treat person with faith, take credit as our base, win markets with high quality". We seriously hope we will have chances that we can make cooperation with personages of various circles to develop our causes hand in hand. Wishing to establish long-term steady business relationships, our company warmly welcomes our old and new consumers to inspect our company.

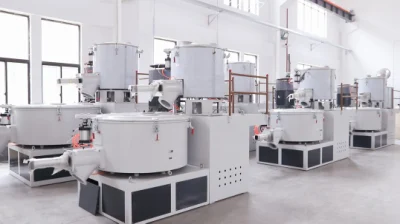

Our exhibition :
FAQ :
Q:Are you machinery factory or trading company?
We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q:How can we visit your company and machines?
We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will
pick up you at the airport.
Q:What`s the payment method?
T/T, L/C, etc
Q:How long is the warranty?
12 months
Q:How long is the delivery time?
Under normal conditions, products are delivered within 45 working days.
Q:How to install machine when machine arrive?
We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine
