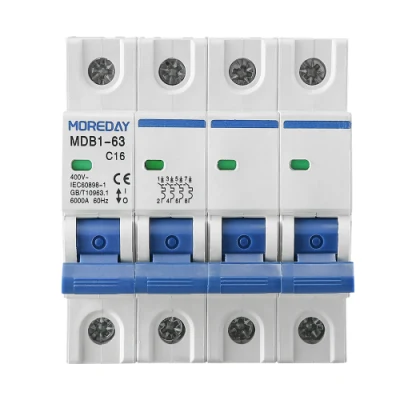

Basic Info.
Model NO.
mdb1-63 4p
Installation
Fixed
Structure
MCB
Poles Number
4
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
ISO9001-2000, CE, CCC
Ingress Protection
IP40; Wiring Port IP20
Tripping Characteristics
B/C
Rated Insulation Voltage Ui
400V
Rated Impulse Withstand Voltage Uimp
6kv
Frame Current
63A
Rated Ultimate Short-Circuit Breaking Ca
6ka
Rated Current in
63A, 50A, 40A, 32A, 25A, 20A,16A,10A
Transport Package
Carton/Pallet
Specification
Carton
Trademark
Moreday
Origin
China
HS Code
8536200000
Production Capacity
500000PCS Per Month
Packaging & Delivery
Package Size
12.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Overview
AC circuit breaker suitable for industrial, commercial, high-rise and civil residences circuit protection.
Features
Up to 63A current rating.
Current limiting design.
Three levels of short-circuit protection ,categorized by B,C and D curves.
Captive screws cannot be lost.
Contact position indicator(red/green).
Easy installation on DIN rail.
Product Parameters
| Rated voltage(v) | 230/400V(1P),400V(2P,3P,4P) |
| Rated current(A) | 6,10,16,20,25,32,40,50,63 |
| Poles | 1P,2P,3P,4P |
| Rated breaking capacity(A) | 4500 |
| Tripping characteristics | Table 1 |
| Mechanical & Electrical life | 4000 |
| Tripping characteristics | B , C , D |
| Tightening torque (N·m) | 2.5 |
| Pollution Degree | 2 |
| Protection class | Ip20 |
| 2Overvoltage category | 2 |
| Standards | IEC60898 -1,GB/T10963 . 1 |
| Compliant certification | CCC |
Detailed Photos
Certifications
Our Advantages
FAQ
1. Are you trading company or manufacturer ?
We are solar system manufacturer,Our cumulative installed capacity reached 5GW+.
2.Can you supply samples for checking ?
Yes, we can supply free samples for all client.
3.How long is your delivery time?
A1)For Sample: 1-2Days ;
A2)For small Orders: 3-5Days;
A3)For mass Orders:7-10Days;
Anyway, It depend on order qty and payment time.
4.Do you accept OEM business?
We accept OEM with your authorization.
5.How is the after-sale service?
We offer spare parts accordingly and English-speaking engineer offer online service.
6. what kind of certificate you have ?
We have CE, CB,TÜV,SAA etc.
7.What is the service offered by company?
We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale.
If you have another questions, pls feel free to contact us.
