Basic Info.
Model NO.
C45N
Poles Number
3
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
CE, CCC
Raw Material
Top Quality Imported Material
Casing Material
PA66 or Higher
Rated Current
1A-63A
Rated Voltage
230/400V
Certificate
Ce Kema ISO CCC
Color
Customer Demands
Warranty
3 Years
MOQ
1PCS
Standard
IEC60898
Transport Package
Export Standard Package or According to Customer′s
Trademark
KAYAL/OEM
Origin
China
HS Code
1904031931
Production Capacity
900000pieces/Month
Product Description
APPLICATIONS:

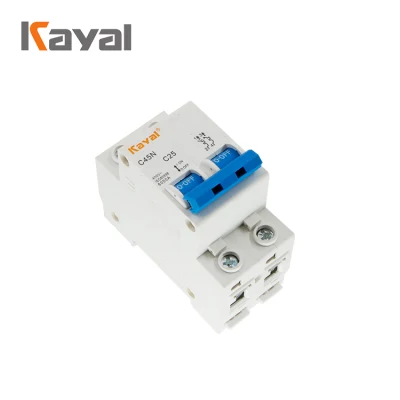

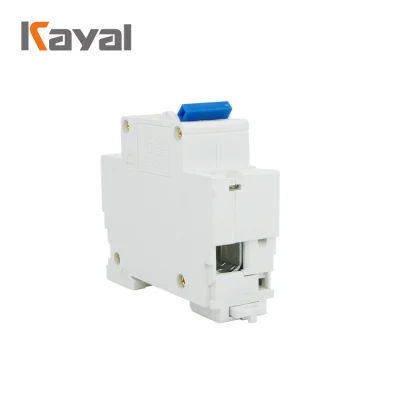

C45 Mini Circuit Breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteris in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product,with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & BS 3711.
| Standard | Rated Current (A) | Pole | Voltage(V) | Breaking Capacity(A) |
| BS3871-1 IEC60898 | 1 to 40 50 to 63 | 1 | 240 | 6000 |
| 2,3,4 | 415 | 6000 | ||
| IEC157-1 | 50 to 63 | 1 | 240 | 4000 |
| 2,3,4 | 415 | 4000 | ||
| 1 | 1 | 220/240 | 10000 | |
| 2,3,4 | 220/240 | 20000 | ||
| 2,3,4 | 380/415 | 10000 | ||
| 3 | 1 | 220/240 | 8000 | |
| 2,3,4 | 220/240 | 20000 | ||
| 2,3,4 | 380/415 | 8000 | ||
| 10 to 40 | 1 | 220/240 | 7000 | |
| 2,3,4 | 220/240 | 16000 | ||
| 2,3,4 | 380/410 | 8000 | ||
| 50 | 1 | 220/240 | 6000 | |
| 2,3,4 | 220/240 | 10000 | ||
| 2,3,4 | 380/410 | 6000 | ||
| 63 | 1 | 220/240 | 5000 | |
| 2,3,4 | 220/240 | 10000 | ||
| 2,3,4 | 380/410 | 5000 | ||
| Standard | Rated Current (A) | Pole | Voltage(V) | Breaking Capacity(A) |
| BS3871-1 IEC60898 | 1 to 40 | 1 | 240 | 4000 |
| 2,3,4 | 415 | 4000 | ||
| IEC157-1 | 1 to 40 | 1 | 220/240 | 6000 |
| 2,3,4 | 220/240 | 12000 | ||
| 2,3,4 | 380/415 | 6000 |
