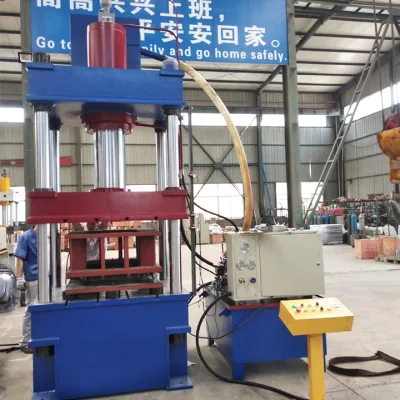

Impact Extrusion Steel Plate Hydraulic Stamping Press

Visit our factory for high-quality Impact Extrusion Steel Plate Hydraulic Stamping Press. We provide top-notch products and excellent customer service. Contact us today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
YQ32 Hydraulic Press machine
Color
White Color Four-Column Hydraulic Press
Voltage
220V or 380V
Usuage
Stamping Hydraulic Press Machine Price
Function
Steel Plate Hydraulic Stamping Press
Service
Engineers Available to Service Machinery Overseas
Weight
1-6ton
Parameter
Customized
Type
Four-Column Hydraulic Press
Certification
ISO9001, CE, SGS
Transport Package
by Ship/by Container
Specification
1350*1050*3700mm
Trademark
CNZY
Origin
China
HS Code
8462919000
Production Capacity
100 Sets Per Month

Product Description

cnc punching stamping four-column hydraulic press

parameter of hydraulic press machine

parameter name Unit YQ32-63A YQ32-63B YQ32-100A YQ32-100B YQ32-160 YQ32-200A
Nominal force KN 630 630 1000 1000 1600 2000
Hydraulic system maximum pressure Mpa 25 25 25 25 25 25
Max opening height of the slide mm 500 700 800 800 800 800
Max stroke of the slide mm 360 400 500 500 500 400
Workbench effective area mm 410×450 610×500 630×550 750×700 660×600 800×800
Ejector cylinder nominal force KN 100 100 200 200 400 400
the stroke of the eject mm 160 160 200 200 200 220
Slider speed  down mm/s 100 100 100 100 100 100
press mm/s 5-10 5-10 5-10 5-15 5-10 5-10
return mm/s 90 90 90 90 90 90

description of stamping four-column hydraulic press

Our stamping four-column hydraulic presses are ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, forming, punching and shearing. Every double acton hydraulic press has a frame that is constructed of heavy-duty arc-welded steel and seamless steel cylinders to prevent leaks.

Impact Extrusion Steel Plate Hydraulic Stamping Press

Advantages of automatic hydraulic press machinery:

Both the table and slider have T-slots to facilitate the user's mold installation.
    Hydraulic system devices are located on the right side and the upper side of the fuselage.
    The hydraulic system adopts a plug-in integrated system, which has the characteristics of sensitive action, reliable operation and good sealing performance.
    The hydraulic pump oil station is composed of a box, a high pressure pump, a motor, and a cartridge valve. The fuel tank is welded by a steel plate.


Impact Extrusion Steel Plate Hydraulic Stamping Press



features of stamping press machine

The series hydraulic press body adopts three-beam four-column structure: it consists of upper beam, slider, worktable, column, master cylinder, hydraulic power system and other components. The upper beam, slider, and workbench are all made of high-quality steel plates. The column is made of high-quality 45# forged steel and the four-column surface is quenched.



function of automatic hydraulic press machine
Four column hydraulic press machine function of machine
deep drawing press machine deep drawing tray/wheelbarrow
deep drawing water/kitchen sink
deep drawing Aluminum pan/pot
deep drawing iron pot/basin
deep drawing Vessel dish end
stamping machine stamping shovel making machine
stamping coin making machine
metal sheet/tag stamping machine
stainless steel utensils stamping
stainless steel pipe stamping
steel door stamping machine
metal plate/steel hole stamping
powder forming press machine Aluminum/Metal Chip Briquette
melamine dinner set making machine
salt lick mineral block making machine

Impact Extrusion Steel Plate Hydraulic Stamping Press

Product Catalog
Product classification Product Name
A Four column hydraulic press machine A1 Coin hydraulic press making machine
    A2 melamine dinner set hydraulic press making machine
    A3 Stainless steel sink hydraulic press machine
    A4 Kitchen cookware hydraulic press machine
    A5 Wheel Barrow hydraulic press machine
    A6 Animal salt block hydraulic press machine
    A7 Door skin hydraulic  press machine
    A8 Powder forming hydraulic press machine
    A9 animal mineral block hydraulic press machine making  machine
    A10 hydraulic press machine  for seedling clod
    A11 hydraulic press machine  for tablet
    A12 Auto parts hydraulic press machine.
    A13 ....
B C frame hydraulic press machine B1 Door embossing hydraulic press machine.
    B22 Bearing press-fitting hydraulic press machine.
    B3 ....
C Frame type/frame hydraulic press machine C1 Door skin hydraulic  press machine
    C2 Solid tire hydraulic press machine
    C3 Forklift Solid Tyre Press Machine
    C4 ...
D Customizing machine D1 ...

Impact Extrusion Steel Plate Hydraulic Stamping Press


Packaging and shipping of cnc punching hydraulic press machine :

Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Delivery Time:
30 days after order stretching hydraulic press machine

Impact Extrusion Steel Plate Hydraulic Stamping Press



our company

TengZhou Zhongyou Heavy Industry Machinery Equipment Co.,Ltd is one of professional producing hydraulic press machine companies in our country.The company has many equipments,such as:large floor type boring and milling machine,heavy machine tool,milling machine,planing machine and so on.And mainly producing various hydraulic press machine,forging machine,automobile-protection equipment.
