Basic Info.
Model NO.
mn11-3
Poles Number
1
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection
Certification
ISO9001-2000
Rated Voltage
230V
Contact Material
Red Copper
Body Shell
PA66
Breaking
4.5 Ka
Transport Package
to Be Nagotiate
Specification
PA66
Trademark
JIELI
Origin
China

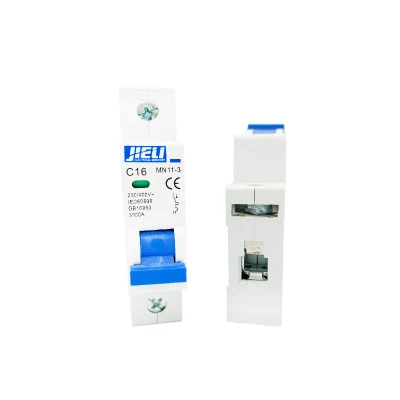

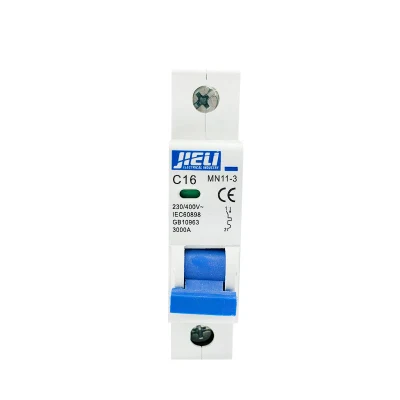

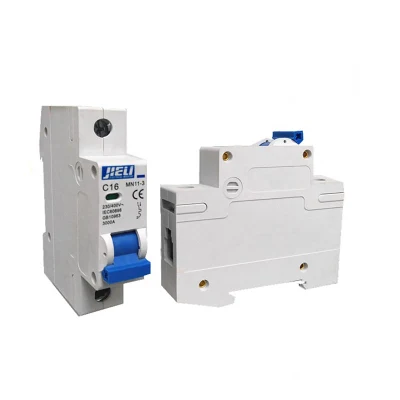

Product Description
Rated current In | 1A-63A |
Pole number | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
Rated voltage Ue | AC 230/400V |
Rated frequency | 50/60Hz |
Rated breaking capacity | 6 KA |
Running breaking capacity | 6 KA |
Rated shock withstand voltage | 4 KV |
Tripping characteristic | B . C . D |
Mechanical life | 10000 times |
Electrical life | 4000 times |
Protection level | IP20 |
Fiducial temperature | 30ºC |
Ambient temperature | -5ºC to +40ºC |
Storage temperature | -35ºC to +70ºC |
Installation type | Modular structure, Rail mounted |
Terminal wiring capability | 25mm² |
Tightening torque | 2.0N*m 22In-Ibs |
Mounting | 35mm |
