Jieli Scm Mn11-1 C45 Structure MCB Miniature Breaker 1-60A 4.5ka Wenzhou Zhejiang

Jieli Scm Mn11-1 C45 Structure MCB Miniature Breaker 1-60A 4.5ka Wenzhou Zhejiang - We are a factory specializing in high-quality circuit breakers.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
mn11-1
Poles Number
1
Type
Circuit Breaker
Function
Circuit-Breaker Failure Protection
Certification
CE
Service
OEM
Delivery Date
30 Days
Rated Current
1A-63A
Rated Voltage
230/400V
Transport Package
0.1kg
Specification
Fireproof material
Trademark
no
Origin
China
Production Capacity
2000000psc/Year

Product Description

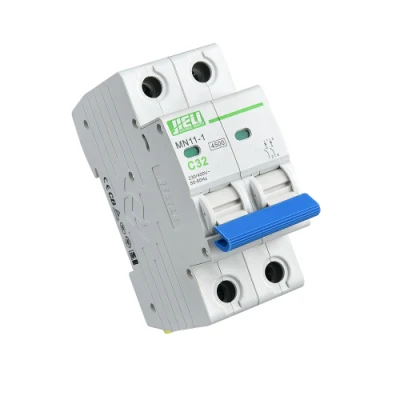

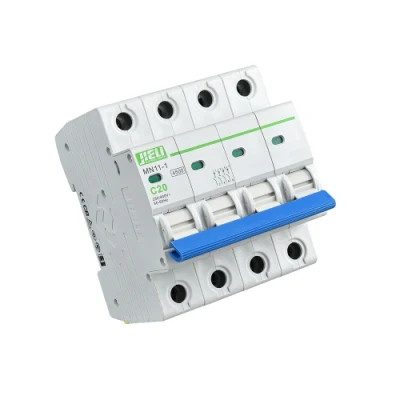

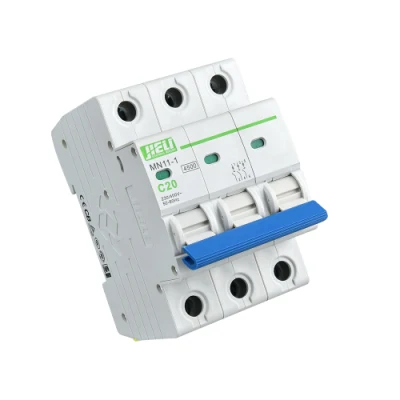

Jieli Scm Mn11-1 C45 Structure MCB Miniature Breaker 1-60A 4.5ka Wenzhou Zhejiang
Rated current In 1A-63A
Pole number 1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated voltage Ue AC 230/400V
Rated frequency 50/60Hz
Rated breaking capacity 4.5 KA
Running breaking capacity 4.5 KA
Rated shock withstand voltage 4 KV
Tripping characteristic B . C . D
Mechanical life 10000 times
Electrical life 4000   times
Protection level IP20
Fiducial temperature 30ºC
Ambient temperature -5ºC to +40ºC
Storage temperature -35ºC to +70ºC
Installation type Modular structure, Rail mounted
Terminal wiring capability 25mm²
Tightening torque 2.0N*m  22In-Ibs
Mounting 35mm
Jieli Scm Mn11-1 C45 Structure MCB Miniature Breaker 1-60A 4.5ka Wenzhou Zhejiang
Q1. What is your




terms of payment?
A: T/T 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance. Or we could do L/C as you want.

Q2. How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.

Q3. What is your sample policy?
A: Sample is available ,but sample should be pay in advance. The cost of sample will be refund after further order.

Q4. Do you test all your goods before delivery? Any quality guarantee or after-sales service?
A: Yes, we have 100% test before delivery. All the products have 5-10 years' Guarantee. If any quality complaint , we will give out solution within 5 days.
