Basic Info.
Model NO.
MN09-4
Poles Number
1
Type
Circuit Breaker
Function
Circuit-Breaker Failure Protection
Certification
CE
Service
OEM/ODM
Delivery Date
30 Days
Rated Current
1A-63A
Rated Voltage
230/400V
Rated Frequency
50/60 Hz
Mechanical Life
10000times
Transport Package
0.1kg
Specification
Fireproof material
Trademark
no
Origin
China
Production Capacity
2000000psc/Year

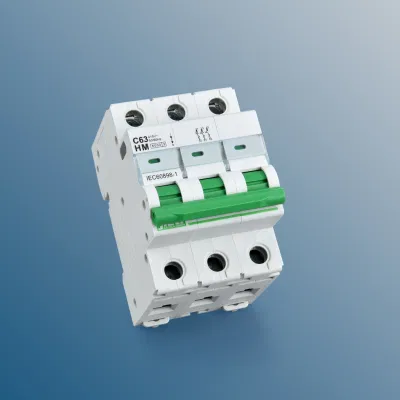

Product Description
| Rated current In | 6, 10, 16, 25, 32, 40, 50, 63A |
| Pole number | 1P, 2P, 3P, 4P |
| Rated voltage Ue | AC 240/415V |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6KA |
| Running breaking capacity | 6KA |
| Rated shock withstand voltage | 4KV |
| Tripping characteristic | B,C,D |
| Mechanical life | 10000 times |
| Electrical life | 2000 times |
| Protection level | IP20 |
| fiducial temperature | 30ºC |
| Ambient temperature | -5ºC to +40ºC |
| Storage temperature | -35ºC to +70ºC |
| Resistance to damp heat | 2types(temperature 55ºC, relative humidity 95%) |
| Installation type | Modular structure, Rail mounted |
| Terminal wiring capability | 25mm2 |
| Terminal connection type | Cable/Pin-type busbar/U-type busbar |
| Tightening torque | 2.0N*m 22In-Ibs |
| Mounting | 35mm |
| Connection | From top and bottom |
Q1. What is your
terms of payment?
A: T/T 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance. Or we could do L/C as you want.
Q2. How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q3. What is your sample policy?
A: Sample is available ,but sample should be pay in advance. The cost of sample will be refund after further order.
Q4. Do you test all your goods before delivery? Any quality guarantee or after-sales service?
A: Yes, we have 100% test before delivery. All the products have 5-10 years' Guarantee. If any quality complaint , we will give out solution within 5 days.
