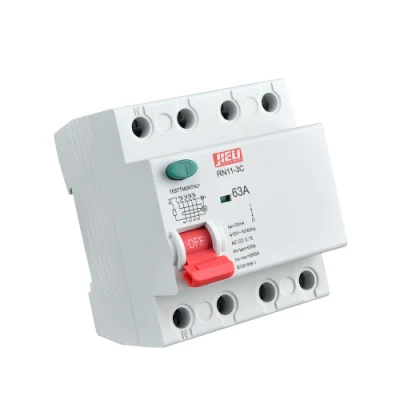

Jieli Scm RCCB Miniature Circuit Breaker MCB 63A AC Rn11-3c Wenzhou Zhejiang

Looking for a reliable Jieli Scm RCCB Miniature Circuit Breaker MCB 63A AC Rn11-3c Wenzhou Zhejiang factory? Look no further! We are a leading manufacturer in Zhejiang, producing top-quality electrical products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
RN11-3C
Poles Number
4
Type
Circuit Breaker
Function
RCCB
Certification
CB
Service
OEM/ODM
Delivery Date
30 Days
Rated Current
1A-63A
Rated Voltage
230/400V
Rated Frequency
50/60 Hz
Mechanical Life
10000times
Transport Package
0.16kg
Specification
Fireproof material
Trademark
no
Origin
China
Production Capacity
2000000psc/Year

Product Description

Jieli Scm RCCB Miniature Circuit Breaker MCB 63A AC Rn11-3c Wenzhou Zhejiang
Poles 2p  4p
Rated current In 10A~63A
Rated voltage Un (V) 230/400
Residual current off-time 0.3S
Rated frequency 50/60Hz
Rated residual operation current 10mA 30mA 50mA 100mA 300mA
Ambient  temperature -5°C ~ +40°C
Rated residual non-operating current (mA) 0.5
Short circuit capacity 6000A
Mechanical life 10000
Protection level IP20
Installation style Standard 35mm guide
Terminal connection type Cable/U type/Pin type
Biggest wiring ability 25mm²
Jieli Scm RCCB Miniature Circuit Breaker MCB 63A AC Rn11-3c Wenzhou Zhejiang
Q1. What is your
terms of payment?
A: T/T 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance. Or we could do L/C as you want.
Q2. How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q3. What is your sample policy?
A: Sample is available ,but sample should be pay in advance. The cost of sample will be refund after further order.
Q4. Do you test all your goods before delivery? Any quality guarantee or after-sales service?
A: Yes, we have 100% test before delivery. All the products have 5-10 years' Guarantee. If any quality complaint , we will give out solution within 5 days.
