6ka Series MCB&RCCB&RCBO Series Unified Appearance Size Circuit Breaker

Get reliable 6ka Series MCB&RCCB&RCBO Series Unified Appearance Size Circuit Breaker at our factory. Quality products for all your circuit breaker needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • FAQ
Overview

Basic Info.

Model NO.
STRO7-40&STM3-63&STID-63N
Arc-extinguishing Medium
Air
Structure
ELCB
Poles Number
4
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection), RCCB
Certification
ISO9001-2000, CE, CB
Standard
IEC 61008
in
16, 25, 32, 40, 63, 80, 100, 125A
Ue
230/400V
Pole
2p, 4p
Leakage Current
10mA, 30mA, 100mA, 300mA, 500mA
Price
Factory Price
Max Current
125A
Connect Wire
Big Screw Hole Size
Transport Package
Inner Box/Carton
Specification
100pcs/ctns
Trademark
SONTUOEC, WZSTEC, STUOEC, SONTUOC
Origin
Wenzhou, China
HS Code
853620000
Production Capacity
2000pieces/Day

Packaging & Delivery

Package Size
46.00cm * 24.00cm * 33.00cm
Package Gross Weight
0.025kg

Product Description

Product Description

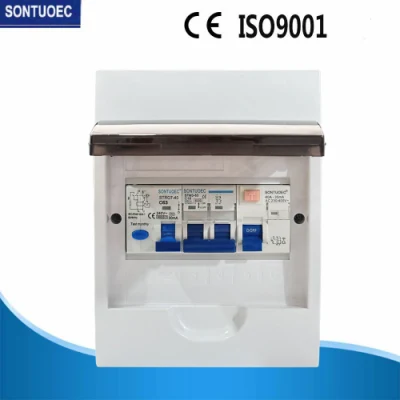

6ka circuit breaker one series RCBO&MCB&RCCB assembly  :


1.RCBO is mainly used in AC 50Hz(60Hz), rated voltage 230/400V, rated current 6A to 63A low voltage terminal distribution system. RCBO is equal with MCB+RCD function; It is used for electric shock protection and human indirect contact protection, electric equipment protection when human body touching electricity or electric network leak current exceeds stipulated value,and over load and short circuit protection ; It can also be a non-frequency operator in the circuit, wildly used in the residential and commercial district. It complies with standard of IEC61009-1.

2.MCB is used in AC50/60Hz, rated voltage of 230V3, 4 poles 400V, rated current to 63A for overload and short-circuit protection as well as for unfrequented switching under normal case.It is used extensively for industry, commercial and household.This product conform to IEC60898 standard.

3.RCCB is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.



6ka Series MCB&RCCB&RCBO Series Unified Appearance Size Circuit Breaker
6ka Series MCB&RCCB&RCBO Series Unified Appearance Size Circuit Breaker
6ka Series MCB&RCCB&RCBO Series Unified Appearance Size Circuit Breaker6ka Series MCB&RCCB&RCBO Series Unified Appearance Size Circuit Breaker
6ka Series MCB&RCCB&RCBO Series Unified Appearance Size Circuit BreakerRoduct Over View:

1. Provide protection against earth fault/leakage current and function of isolation

2. High short-circuit current withstand capacity3. Applicable to terminal and pin/fork type busbar connection

5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity

6. Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

Specifications

RCBO

  Standard  Unit IEC/EN 61009-1

Electrical

features

Mode    Electro-magnetic type ,electronic type
Type(wave form of the earth leakage sensed)   A, AC
Thermo-magnetic release characteristic   B,C,D
Rated current ln A 6,10,16,20,25,32,40
Poles P 1P+N, 3P+N
Rated voltage Ue V AC 230, 400
Rated sensitivity I△n A 0.01, 0.03, 0.1, 0.3, 0.5
Rated residual making and breaking capacity l△m A 500
Rated short-circuit capacity Icn A 6000
Break time under I△n S ≤0.1
Rated frequency Hz 50/60
Rated impulsewithstand voltage(1.2/50)Uimp V 4000
Dielectric test voltage at ind.Freq for 1min kV 2
Insulation voltage Ui V 250
Pollution degree   2

Mechanical

features

Electrical life   4000
Mechanical life   10000
Fault current Indicator   YES

Protection degree



IP20

Ambient temperature

(with daily average≤35ºC)

ºC

-5~+40(Special application please refer to

temperature compensation correction)

Storage temperature ºC -25~+70
Installation Terminal connection type   Cable/Pin-type busbar/U-type busbar
Terminal size top/bottom for cable mm2 25
AWG 18-5
Terminal size top/bottom for busbar mm2 25
AWG 18-3
Mounting   On DIN rail EN 60715(35mm)by means of fast clip device
Connection   From top

MCB

Model MCB
Standard IEC60898
Pole 1P,2P,3P,4P
Tripping Curve B,C,D
Rated Short-circuit capacity(Icn) 3KA,4.5KA,6KA,10KA
Rated Current(In) 1,2,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un) AC230(240)/400(415)V
Magnetic releases  B curve: between 3and 5 In

C curve: between 5and 10In

D curve: between 10 and 14In

Electro-mechanical endurance over 6000 cyclesC


RCCB

  Standard Unit IEC/EN 61008-1
Electrical
Feature
Type(wave form of the earth leakage sensed)   AC,A
Rated current In A 16,25,32,40,63
Poles P 2,4
Rated voltage Ue V 230/400
Rated sensitivity I n A 0.01,0.03,0.1,0.3
Insulation voltage Ui V 500
Rated residual making and A 630
breaking capacity I m
Short-circuit current I c A 4500/6000
SCPD fuse A 6000
Break time under I n s <0.1
Rated frequency Hz 50/60
Pollution degree   2
MechanicaI
features
Electrical life t 4000
MechanicaI Iife t 20000
Fault current indicator   Yes
Protection degree   IP20
Ambient temperature C From -25C untill 40C
(with daily average 35 )
Storage temperature C From -25C untill 70C
