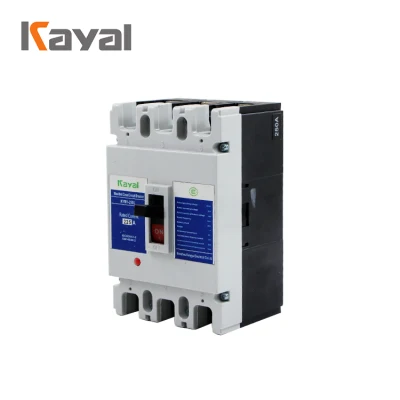

Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
Get the reliable Kayal Single Phase 150A, 500A & 630A MCCB for your electrical needs. Quality assured from our factory direct to you.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
KYCM1
Contact
85% Silver
OEM
Yes
ODM
Yes
Warranty
3years
Rated Current50-630A
63-1600A
Rated Voltage
up to 660V
Packing
Carton
Standard
IEC/En60947-2 IEC/En60947-1
Transport Package
Standard Export Packing or Packing as Your Require
Trademark
KAYAL
Origin
China
HS Code
1903111582
Production Capacity
100000

Product Description


Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker


APPLICATION

3P 125A MOULDED CASE CIRCUIT BREAKER - MCCB is new type product developed and manufactured by adopting international advanced technology.   3P 125A MOULDED CASE CIRCUIT BREAKER - MCCB is a supplied with rated insulation voltage 800V and used for circuit of AC 50HZ, raged operating voltage AC 380V or below rated operation current up to 660A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the  3P 125A MOULDED CASE CIRCUIT BREAKER - MCCB is capable of preventing damage of circuits and supplying unites.  The  3P 125A MOULDED CASE CIRCUIT BREAKER - MCCB confirms to IEC60947-2 standard.

SPECIFICATION

Type Rated current (A) Number of Poles Rated insulation Voltage (V) Rated operating voltage (A) Arcing-over distance (mm) Ultimate short circuit breaking capacity (KA) Service short circuit breaking capacity (KA) Operation performance
ON   OFF
CM1-63L 6,10,16,20,25,32,40,50,63 3P,4P 660V 380V 0 25 18 1500 8500
CM1-63M 0 50 35
CM1-100C 10,16,20,25,32,40,50,63,80,100 0 25 18
CM1-100L 0(≤50) 35 22
CM1-100M 0(≤50) 50 35
CM1-100H 0(≤50) 85 50
CM1-225C 100,125,160,180,200 ≤50 25 18 1000 7000
CM1-225L ≤50 35 22
CM1-225M ≤50 50 35
CM1-225H ≤50 85 50
CM1-400C 225,250,315,350,400 ≤50 35 25 1000 4000
CM1-400L ≤50 50 35
CM1-400M ≤50 65 42
CM1-630C 400,500,630 ≤100 35 25
CM1-630L ≤100 50 35
CM1-630M ≤100 65 42
CM1-630H ≤100 100 65
CM1-800M 630,700,800 ≤100 65 42
CM1-800H ≤100 100 65

Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
Kayal Single Phase 150A 500AMP 630AMP MCCB Symbol Electrical Moulded Case Circuit Breaker
