Basic Info.
Model NO.
KDU650V
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max Table Load
300kg
Spindle Bore Taper
Bt40
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001
Trademark
KD
Origin
Zhejiang China
HS Code
84571010
Production Capacity
55 Sets/Year
Product Description
Product Features

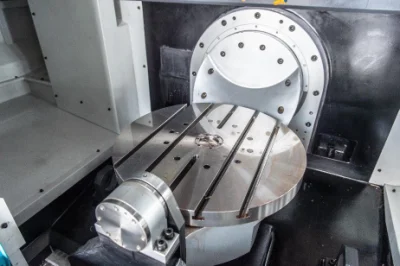

1.High precision biaxial indexing plate is controlled by CNC system to realize 5-axis-simultaneous movement. Precision linear guide ways used for X/Y/Z to ensure machines' high rigidity and high precision.
2.5-axis linked system such as FANUC, SIMENS is adopted to support the characteristics of high speed, high precision, rapid and stable feed.
3.Automatic and centralized oil lubrication works regularly with definite quantity of oil supply.
1.High precision biaxial indexing plate is controlled by CNC system to realize 5-axis-simultaneous movement. Precision linear guide ways used for X/Y/Z to ensure machines' high rigidity and high precision.
2.5-axis linked system such as FANUC, SIMENS is adopted to support the characteristics of high speed, high precision, rapid and stable feed.
3.Automatic and centralized oil lubrication works regularly with definite quantity of oil supply.
| MODELS | KDU650V |
| TRAVEL | |
| X axis | 700+170 |
| Y axis | 450mm |
| Z axis | 400mm |
| B axis rotation angle | ±110° |
| C axis rotation angle | 360° |
| Spindle end to table | 200-600mm |
| TABLE | |
| Tablesize | Φ650mm |
| T-slot(width×number×space) | 18H7mm |
| Max.table loading | 300kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 15kw |
| Spindle torque | 96/126Nm |
| Spindle speed | 12000rpm |
| FEED | |
| X/Y/Z axis fast feed | 24/ 24/ 24m/min |
| X/Y/Z axis cutting feed | 1-10000m/min |
| Max. speed of B axis | 50rpm |
| Max. speed of C axis | 100rpm |
| X/Y/Z axis motors torque | 20/20/27Nm |
| B/C axis motors torque | 1830/571Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size(With adjacent tool) | Ф80mm |
| Max. tool size (Without adjacent tool) | Ф150mm |
| Max.tool length | 300mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 2s |
| ACCURACY | |
| Repeated positioning accuracy(X/Y/Z) | ≤0.006mm |
| Positioning accuracy(X/Y/Z) | ≤0.01mm |
| Repeated positioning accuracy(B/C) | ≤4 sec |
| Positioning accuracy(B/C) | ≤12 sec |
| OTHERS | |
| Cooling pump power | 750W |
| Overall dimension (LxWxH) | 4800x3400x3100mm (with chip conveyor) |
| Net weight | 11000kg |
| Floor area | 5500x4200mm |
